1*N CASSETTE SPLITTER

  • Fiber Optic 1*2 CASSETTE PLC Splitter
  • Fiber Optic 1*2 CASSETTE PLC Splitter
  • Fiber Optic 1*2 CASSETTE PLC Splitter
  • Fiber Optic 1*2 CASSETTE PLC Splitter
Fiber Optic 1*2 CASSETTE PLC Splitter Fiber Optic 1*2 CASSETTE PLC Splitter Fiber Optic 1*2 CASSETTE PLC Splitter Fiber Optic 1*2 CASSETTE PLC Splitter

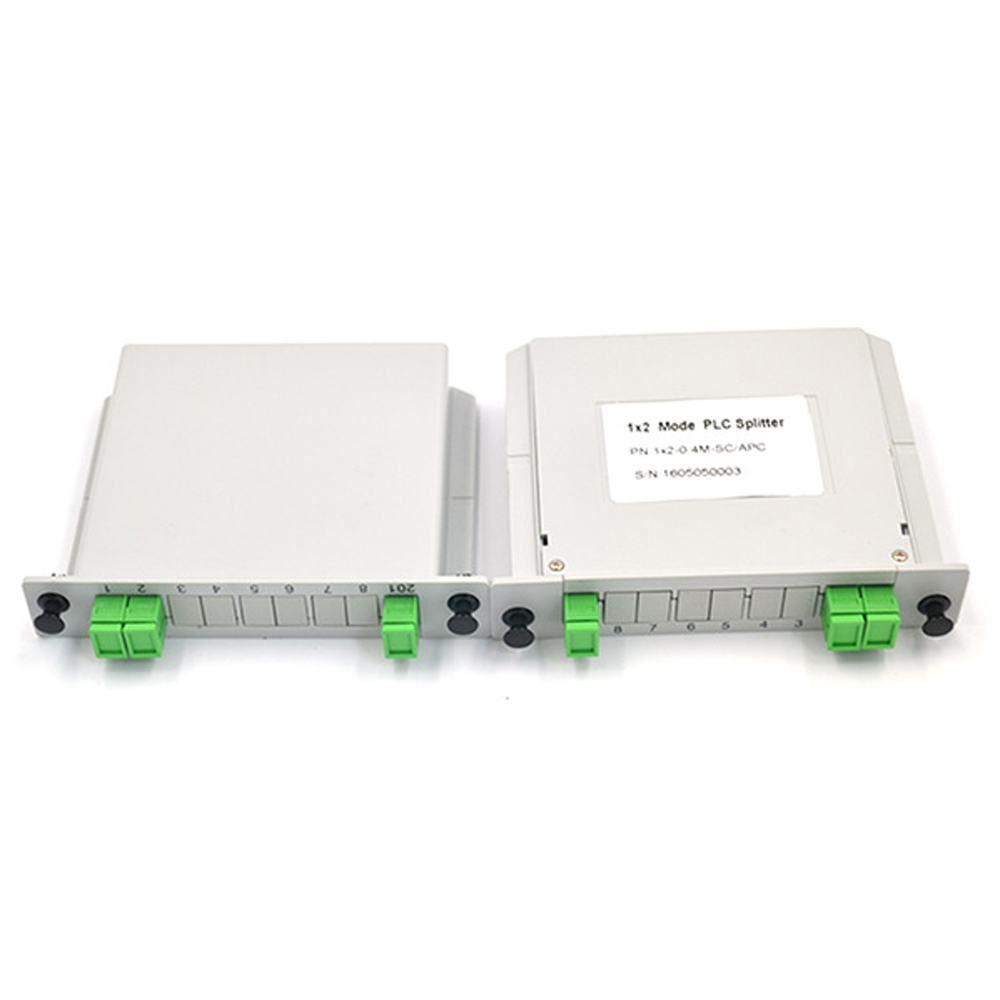

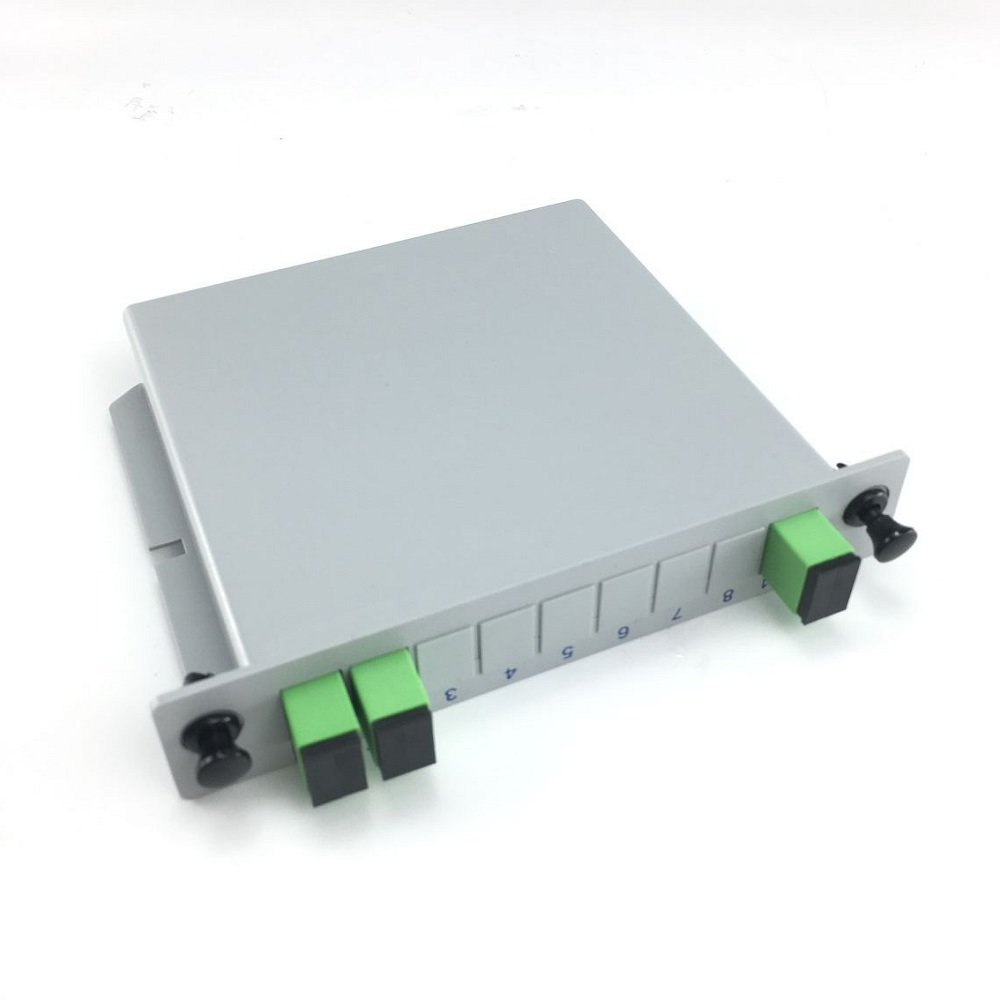

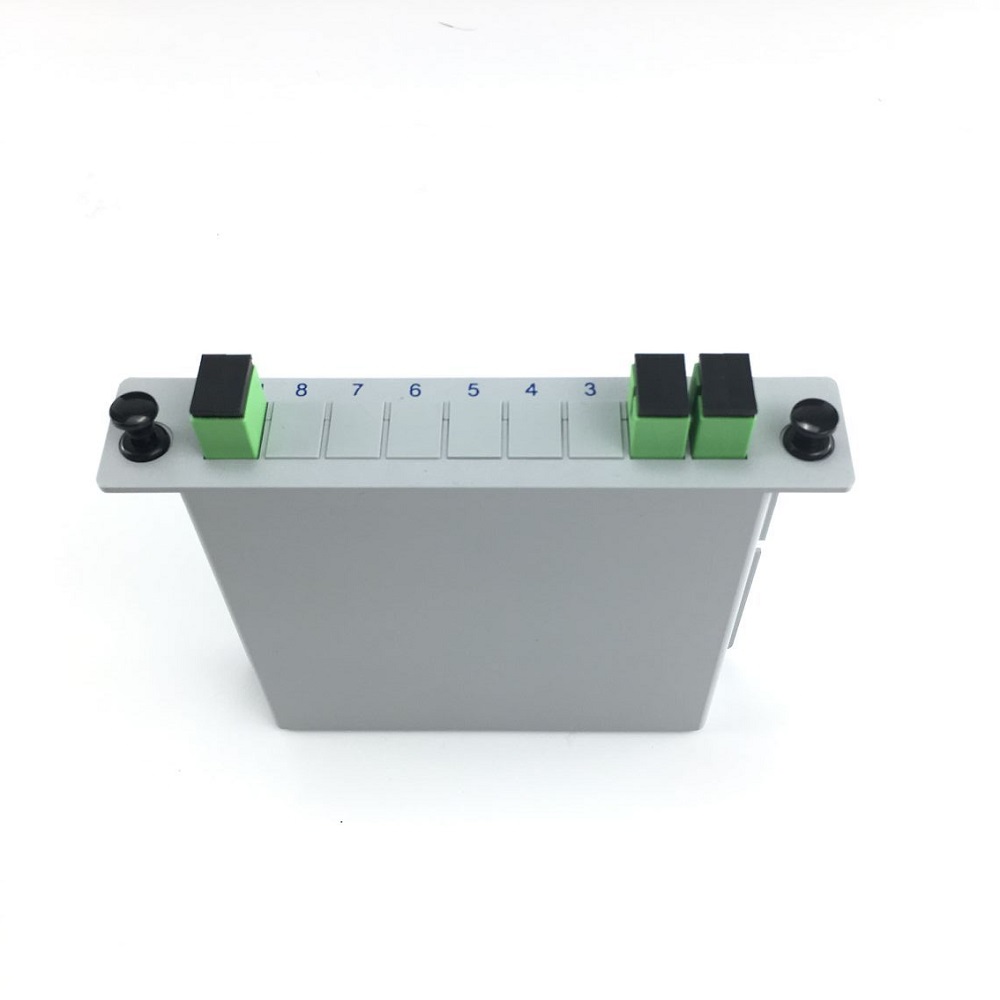

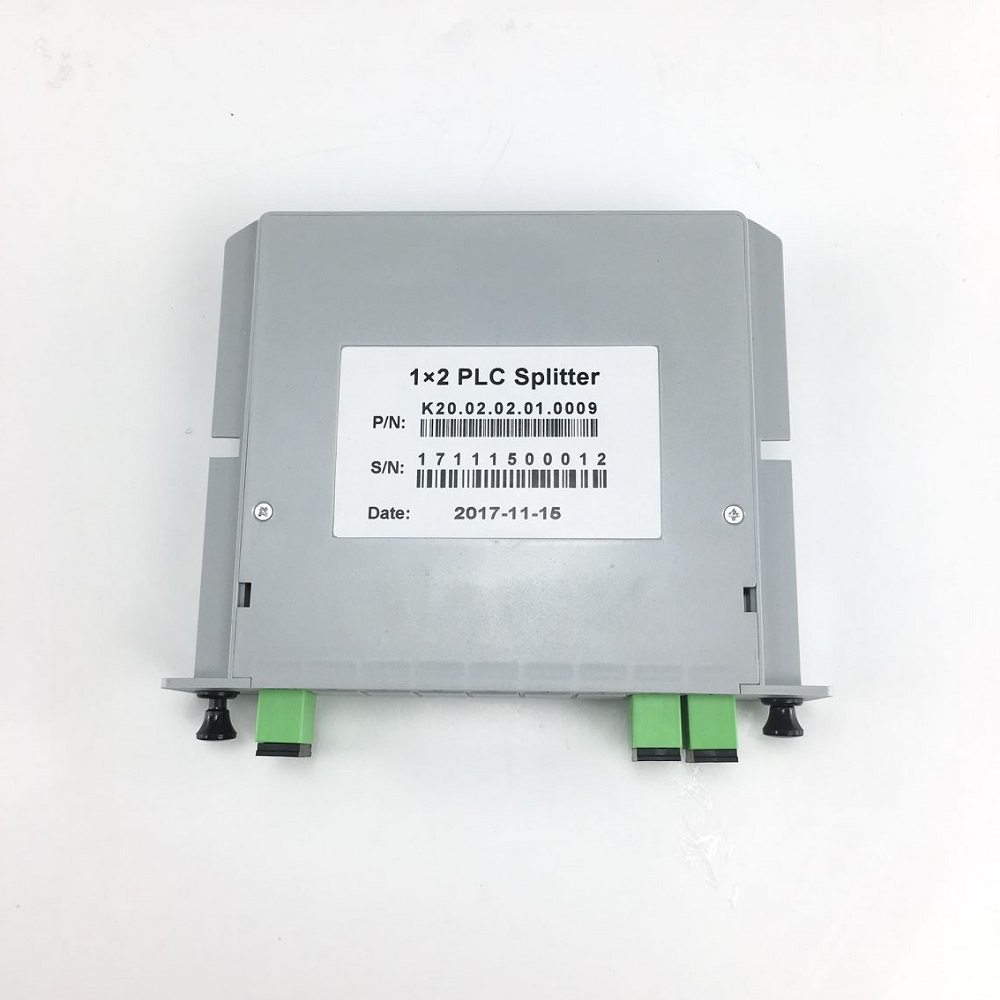

Fiber Optic 1*2 CASSETTE PLC Splitter

Fiber Optic 1*2 CASSETTE PLC Spliter

PLC splitter or planar lightwave circuit splitter is a passive component that has the special waveguide made of planar silica, quartz or other materials. It is employed to split a strand of optical signal into two or more strands


◆   Low PDL

◆   High directivity, high return loss

◆   All-optical structure

◆   Mini tube PLC splitter, ABS box PLC splitter and Insert PLC



Diameters

1:2

1:4

1:8

1:16

1:32

1:64

Wavelength (nm)

1260-1650

Insertion Loss(dB)

4.0

7.3

10.5

13.8

16.8

20.5

Return Loss(dB)

55/50

Directivity (dB)

55

Operation Temperature( ℃ )



-40 ~ +85



Storage Temperature( ℃ )

-40 ~ +85



Fiber Length

1m or customized

Fiber Type

Conform with ITU G657A

Package Way and Size(mm)

Mini Type

60*7*4

60*12*4

80*20*6


ABS Box

100*80*9

120*80*18

140*114*18

Insert Type

127*100*25

127*100*50

127*100*100

127*100*200

Features:

Environmentally Stable

Easy Installation

Low Insertion Loss

High Uniformity

High reliability

Application:

Network Protection

Monitoring

Access/PON Distribution

CATV

FTTH
