INLINE CLOSURE

  • CT-F007 96 Core Fiber Optic Closure(2 in 2 out)
  • CT-F007 96 Core Fiber Optic Closure(2 in 2 out)
  • CT-F007 96 Core Fiber Optic Closure(2 in 2 out)
  • CT-F007 96 Core Fiber Optic Closure(2 in 2 out)
  • CT-F007 96 Core Fiber Optic Closure(2 in 2 out)
  • CT-F007 96 Core Fiber Optic Closure(2 in 2 out)
  • CT-F007 96 Core Fiber Optic Closure(2 in 2 out)
CT-F007 96 Core Fiber Optic Closure(2 in 2 out) CT-F007 96 Core Fiber Optic Closure(2 in 2 out) CT-F007 96 Core Fiber Optic Closure(2 in 2 out) CT-F007 96 Core Fiber Optic Closure(2 in 2 out) CT-F007 96 Core Fiber Optic Closure(2 in 2 out) CT-F007 96 Core Fiber Optic Closure(2 in 2 out) CT-F007 96 Core Fiber Optic Closure(2 in 2 out)

CT-F007 96 Core Fiber Optic Closure(2 in 2 out)

Description

optical splice closures are used to distribute, splice, and  store the outdoor optical cables which enter and exit from  the ends of the closure. There are two connection ways:  direct connection and splitting connection. They are  applicable to situations such as overhead, man-well of  pipeline, embedded situation etc. Comparing with terminal box, the  closure requires much stricter requirement of seal.



Features

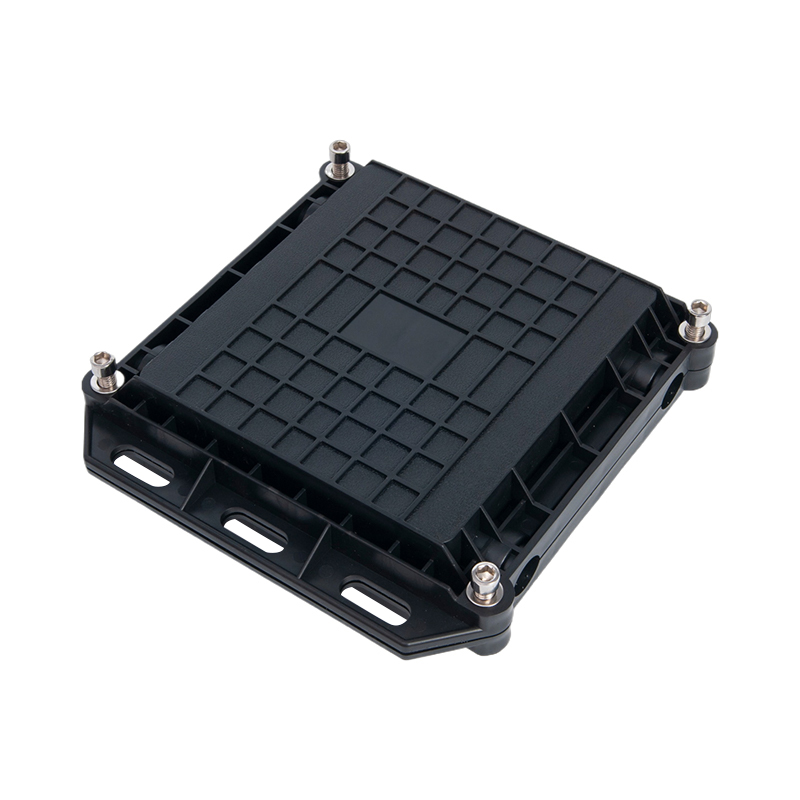

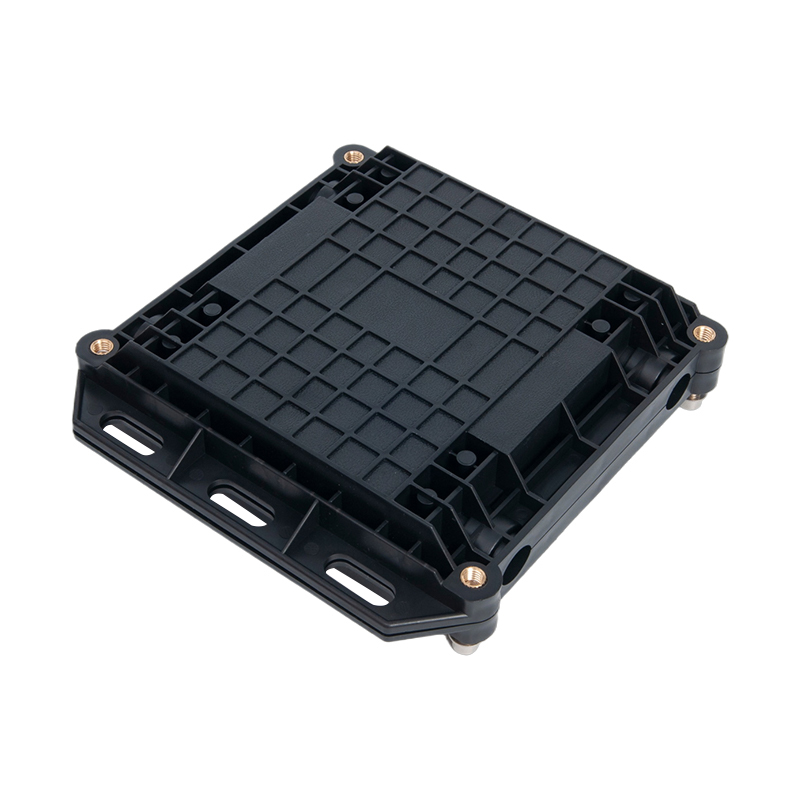

The closure casing is made of quality engineering PP plastics, and of good  performance of anti-erosion against acid and alkali salt, anti-aging, as well as  smooth appearance and reliable mechanical structure.

The mechanical structure is reliable and has the performance of resisting wild  environment and intensive climate changes and serious working environment.

 The protection grade reaches IP68.

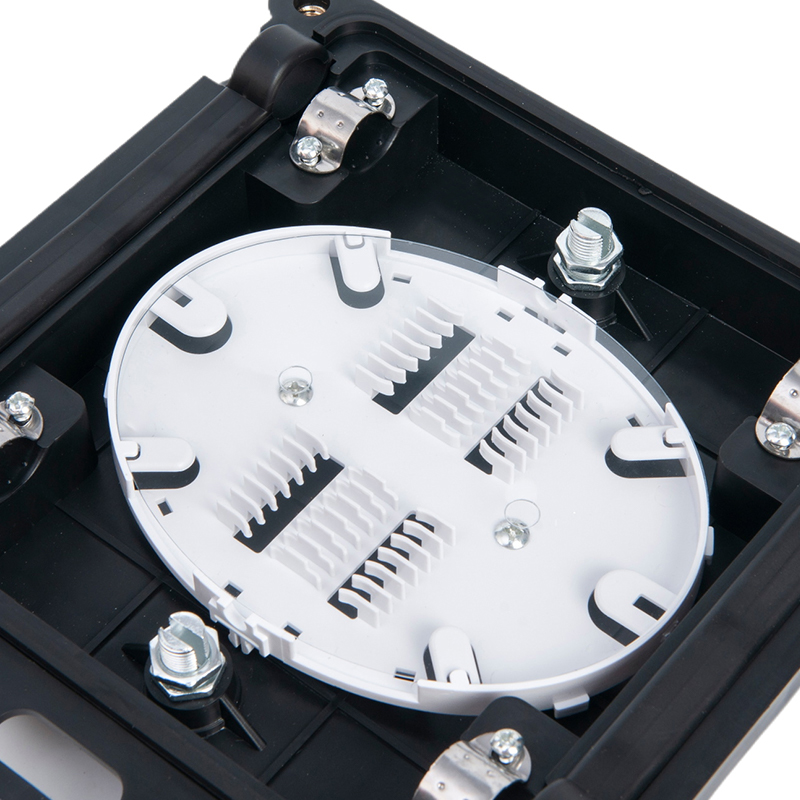

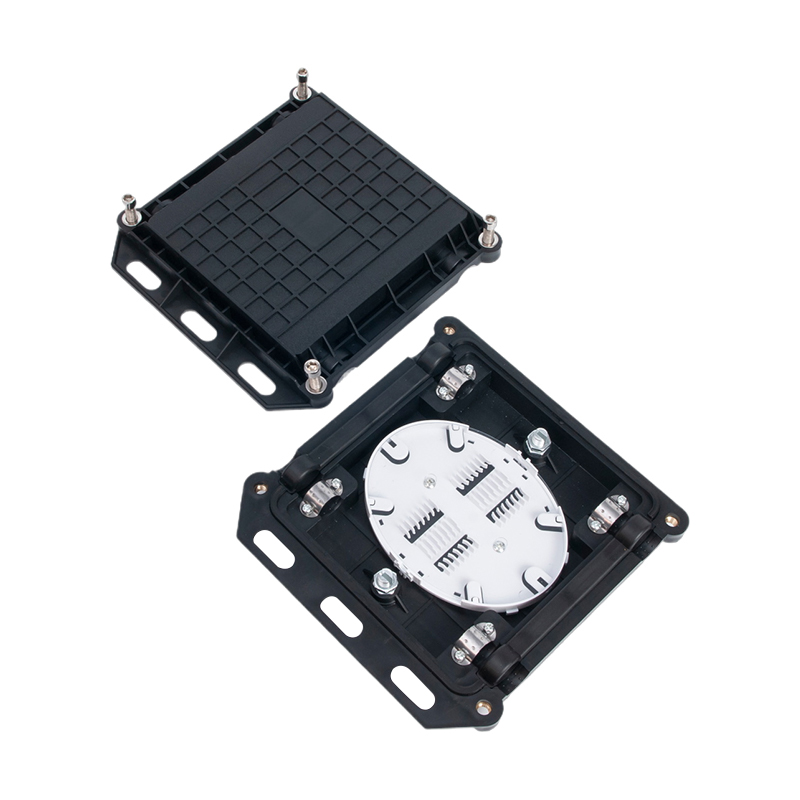

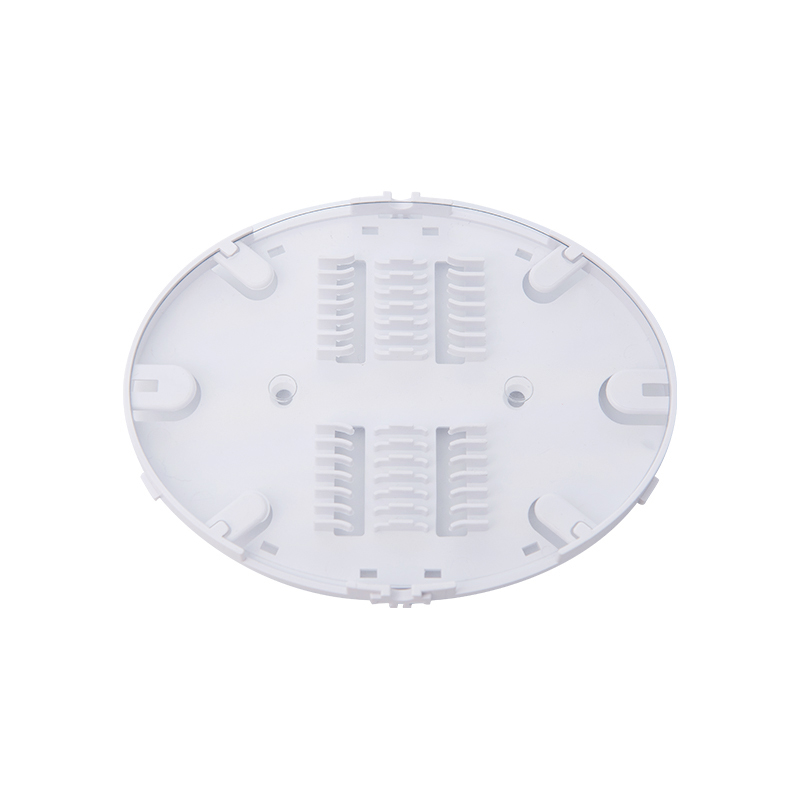

The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure  the curvature radius for optical winding 40mm.Each optical cable and fiber  can be operated individually.

The closure is of small volume, big capacity and convenient maintenance.

The  elastic rubber seal rings inside the closure are of good sealing and sweatproof performance.
