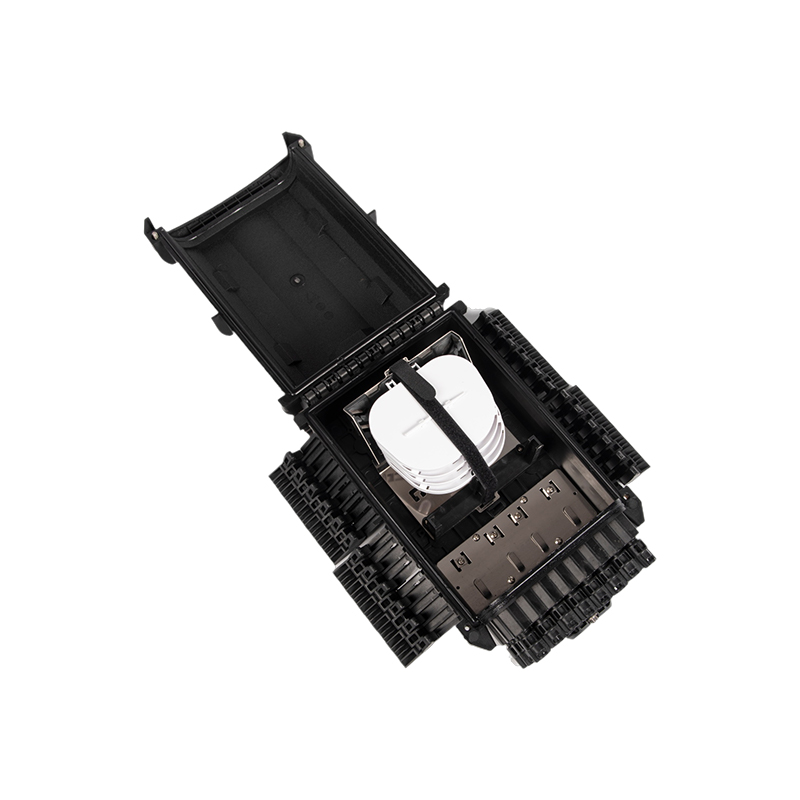

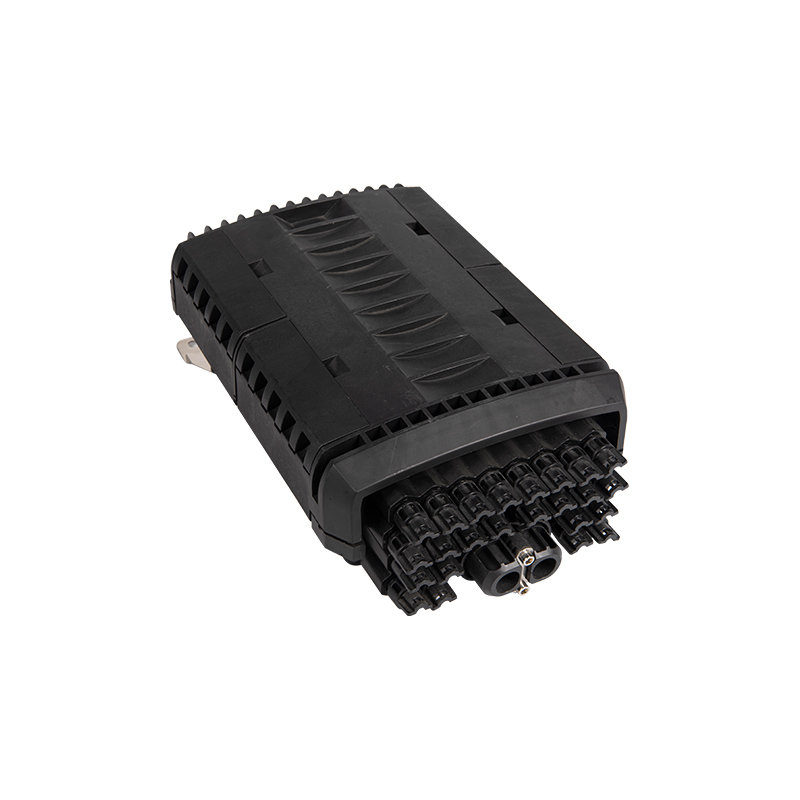

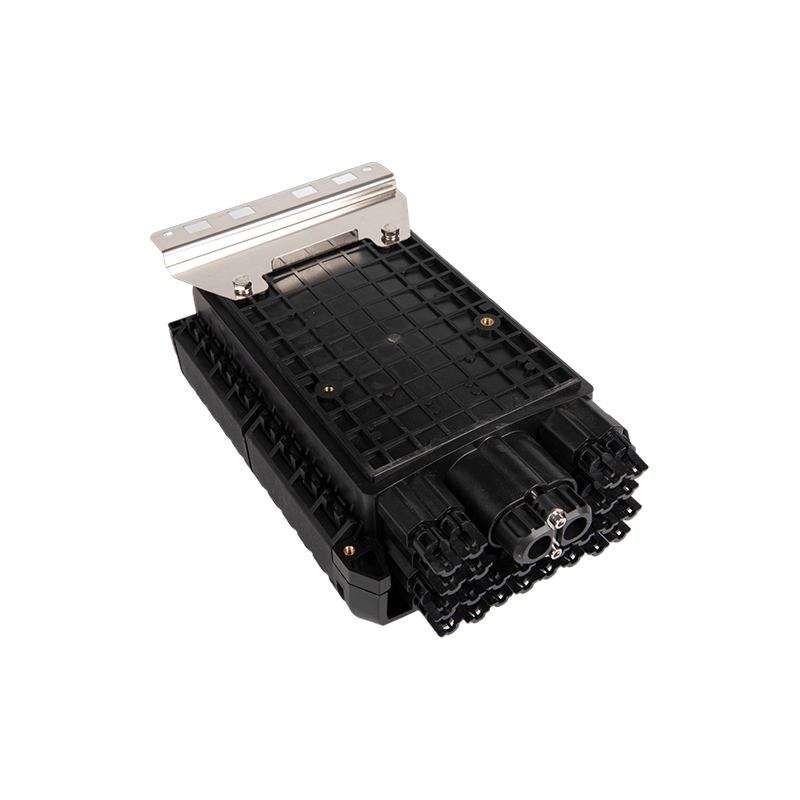

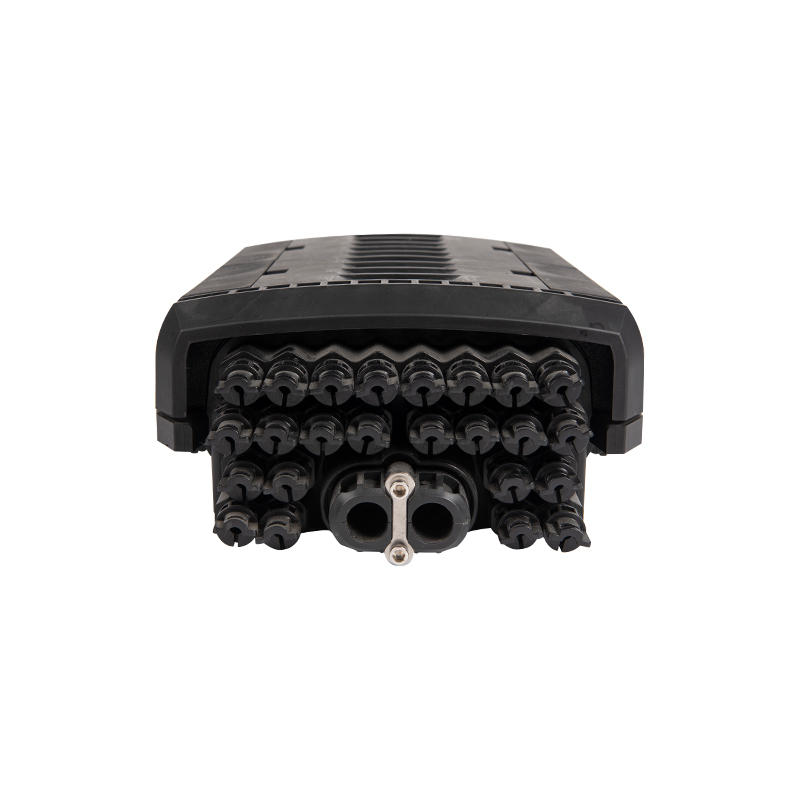

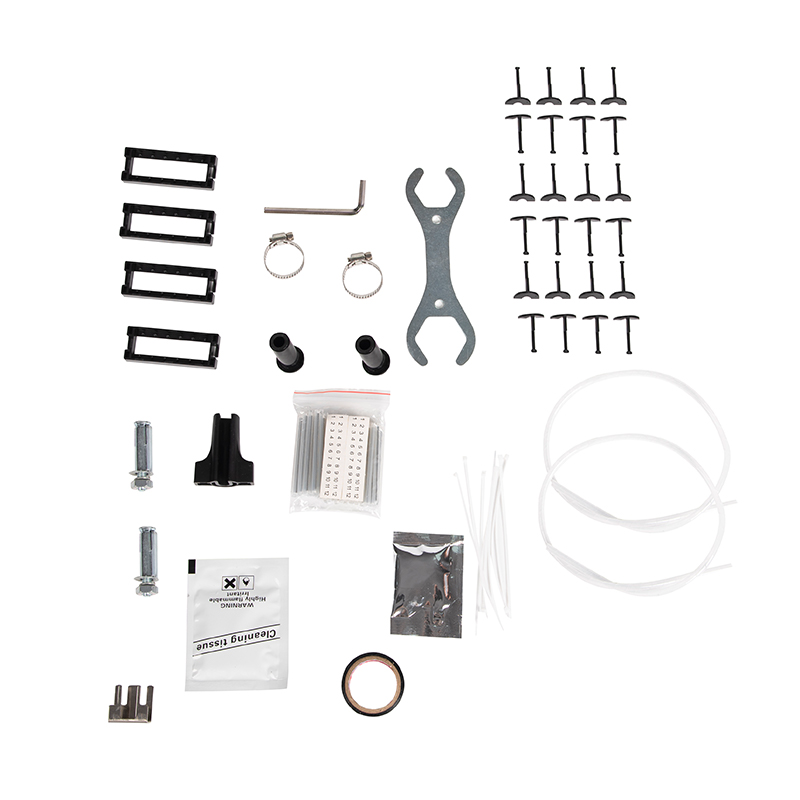

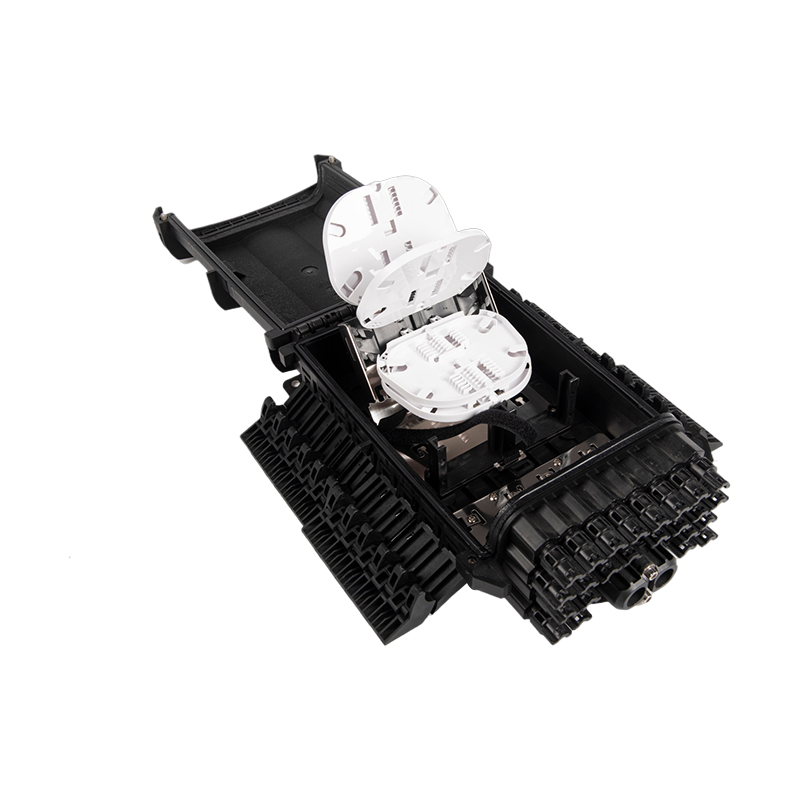

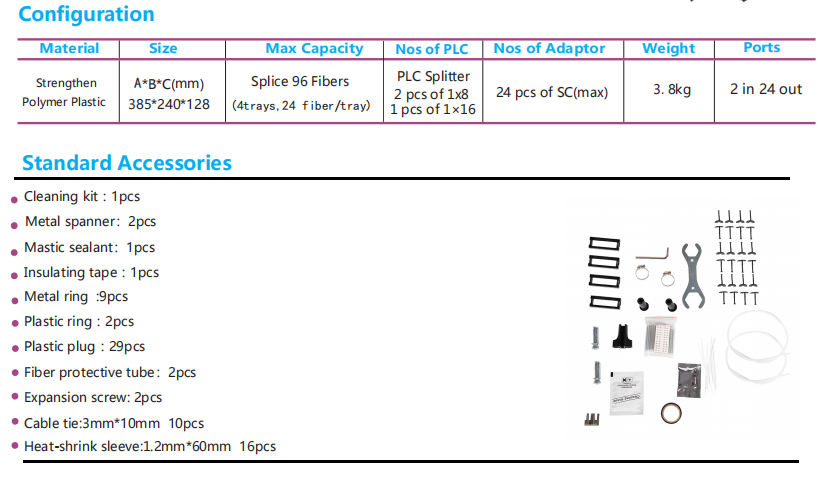

CT-F200E 24Core Fiber Optic Distribution Box

Description

This box is used as a termination point for the feeder  cable to connect with drop cable in FTTX communication  network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides  solid protection and management for the FTTX network  building.



Features

1、Total enclosed structure.

2、Material: PP  wet-proof、 water-proof、dust proof、anti-aging,protection level up to IP68.

3、Clamping for feeder cable and drop cable, fiber splicing, fixation,

storage distribution ... etc all in one.

4 、Cable, pigtails, patch cords are running through own path

without disturbing each other, cassette type SC adaptor .installation,

easy maintenance.

5、Distribution panel can be flipped up, feeder cable can be placed

in a cup-joint way, easy for maintenance and installation.

6 、Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses
