8 CORE
CT-F224 8 Core Fiber Optic Distribution Box
Description

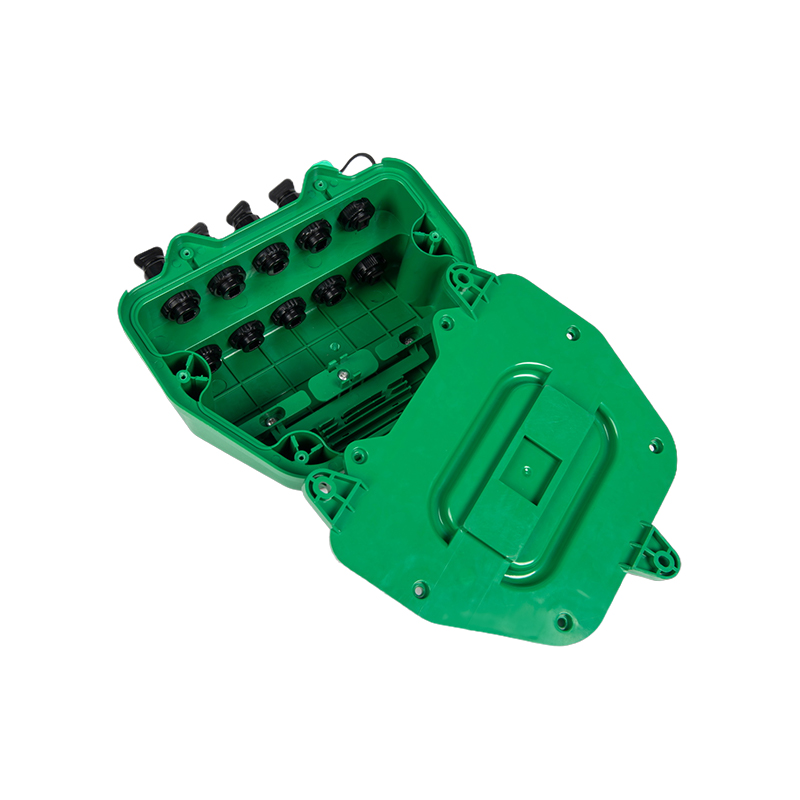

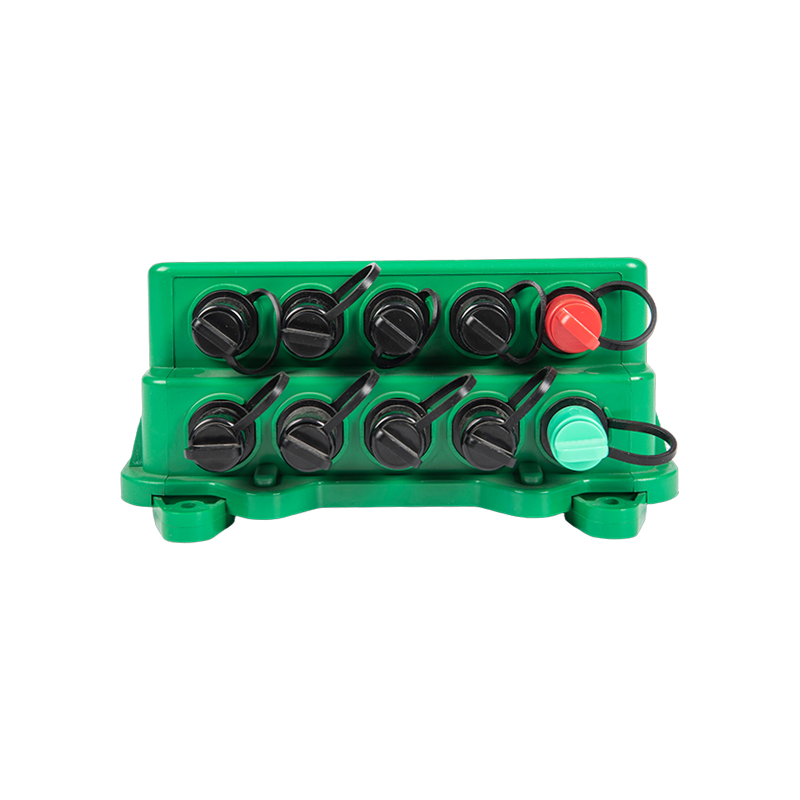

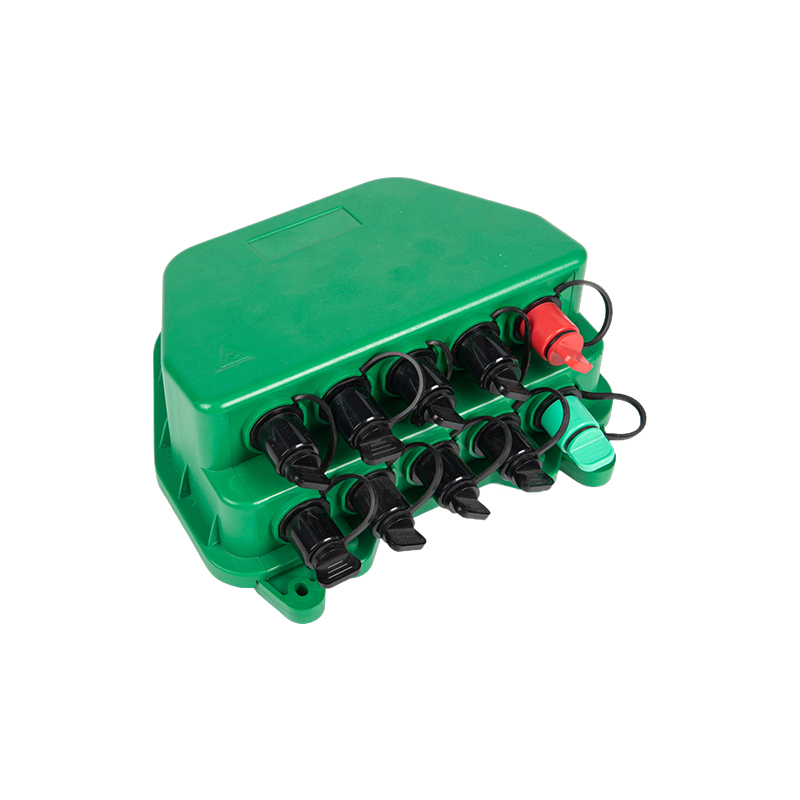

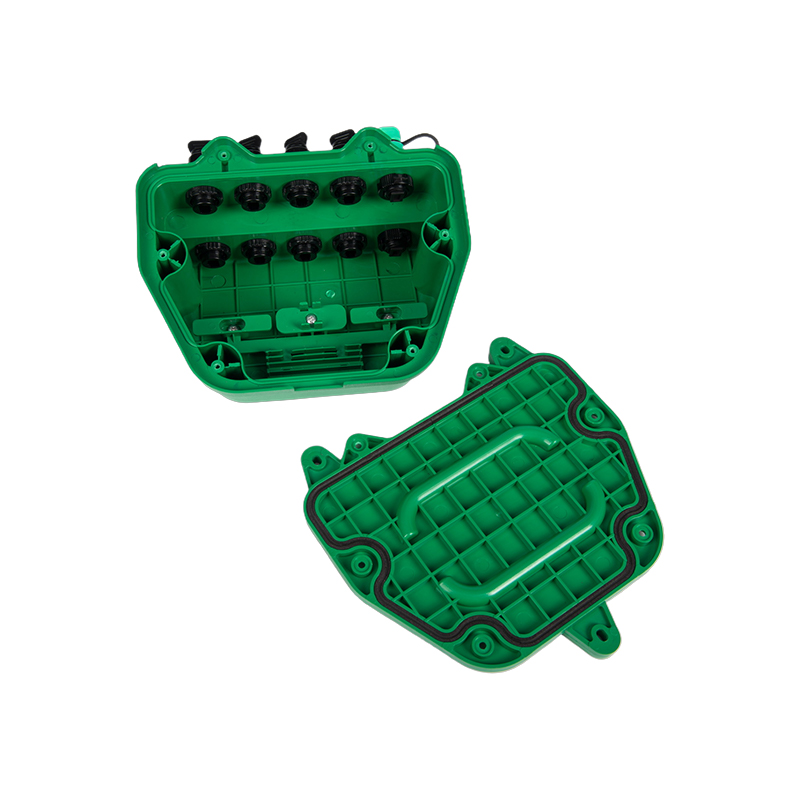

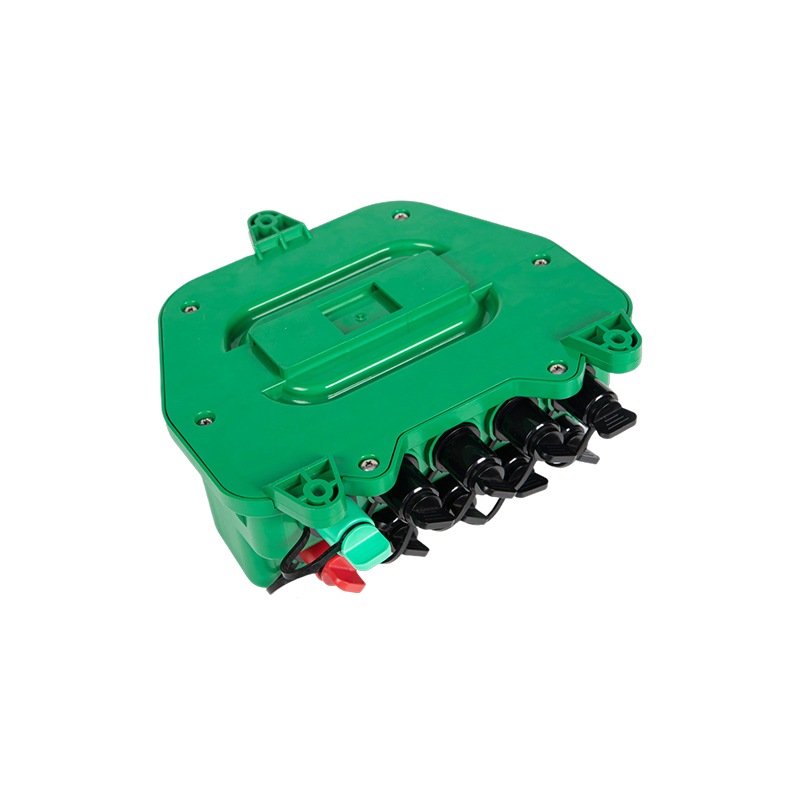

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Features
* Mini size, light weight, total enclosed with 6pcs screws on bottom plate;
* High strength engineer plastic,with strength strips, wet-proof, water-proof, dust-proof, anti-aging
* Outdoor wall mount, pole mounting, protection level up to IP67; * Compact design integrates distribution, splicing, splitting 3functions all in one box;
* PLC splitter, pigtails are running through their own paths without disturbing each other, easy maintenance;
* 2 layers splitting design, 1pcs of 1:2 PLC splitter output to be pre-spliced with 1pcs of 1:8 PLC splitter input;
* Adapters cap color can be customized to distinguish input output.
