12 CORE

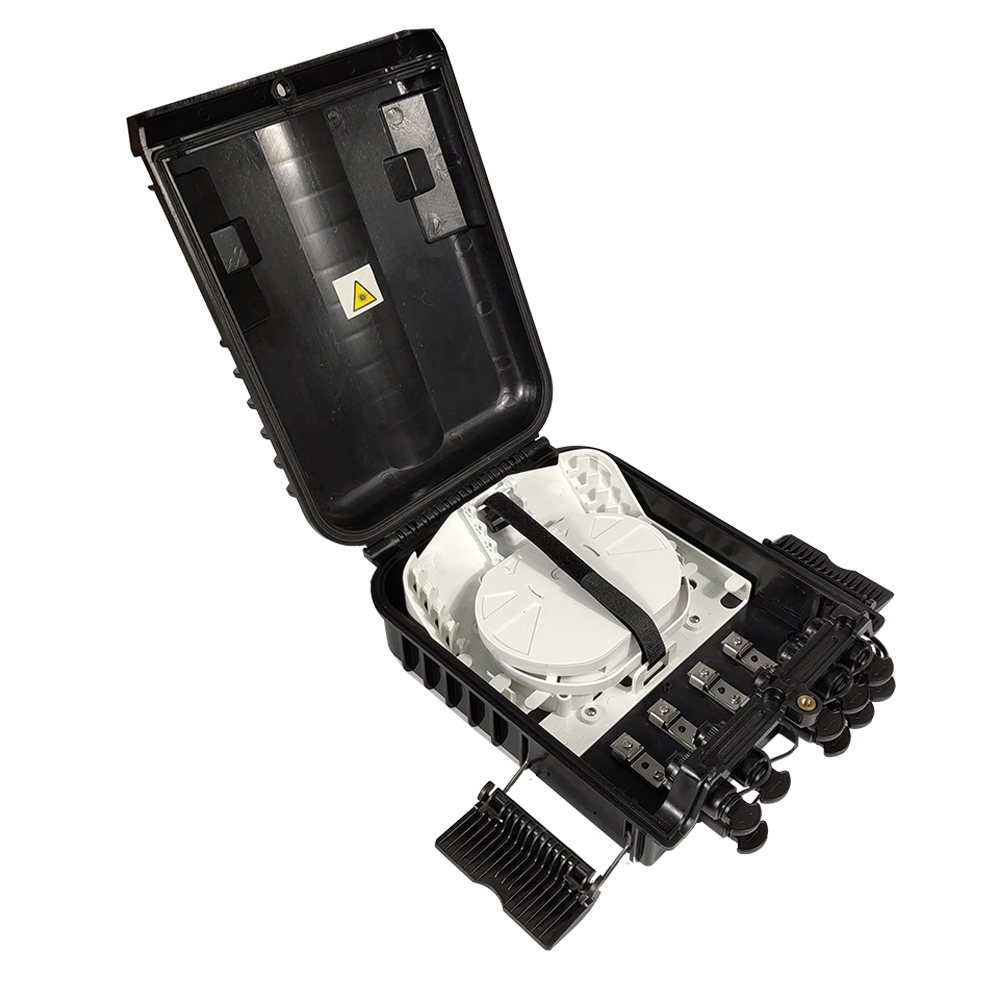

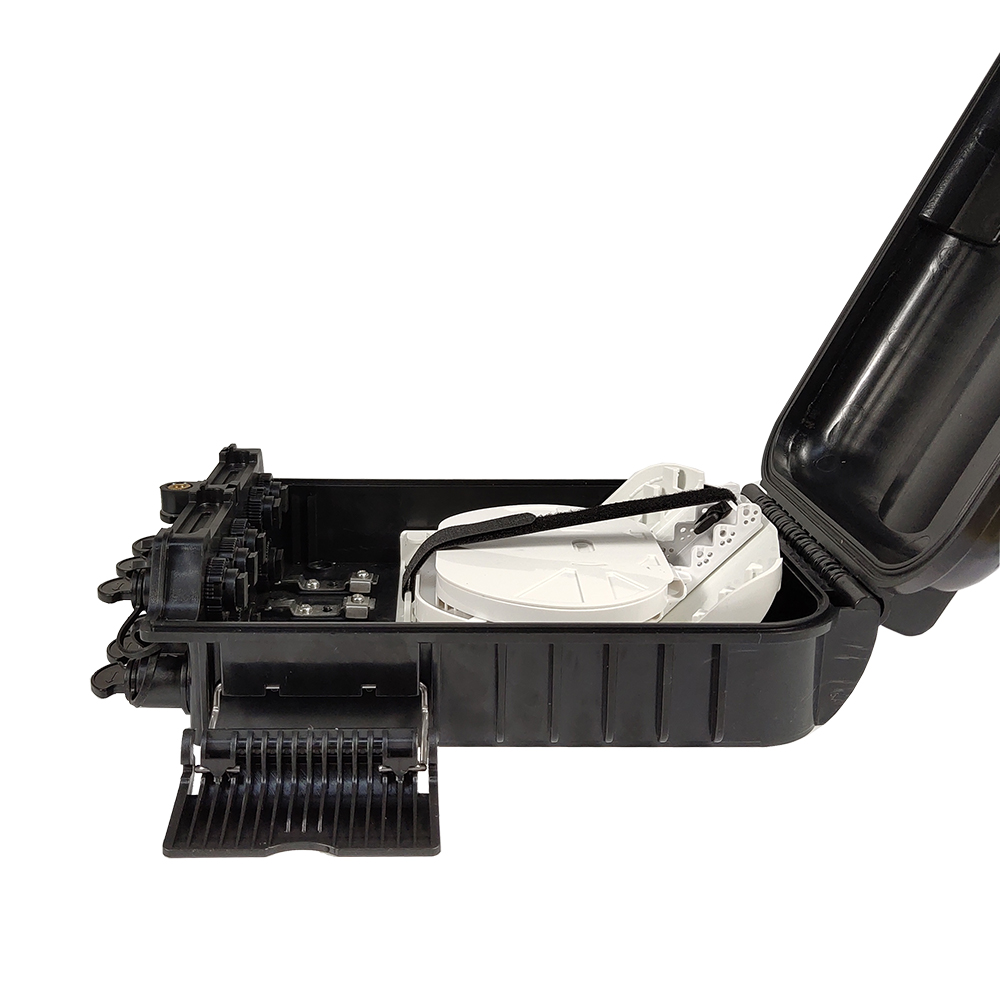

CT-N3-9S 12 Core Fiber Optic Distribution Box
1.DESCRIPTION
CT-N3-9S is a 9 cores fiber optic terminal box. The body of this box is made of 70%
PC and 30% ABS. It has the advantage of high pressure resistance and corrosion resistance.

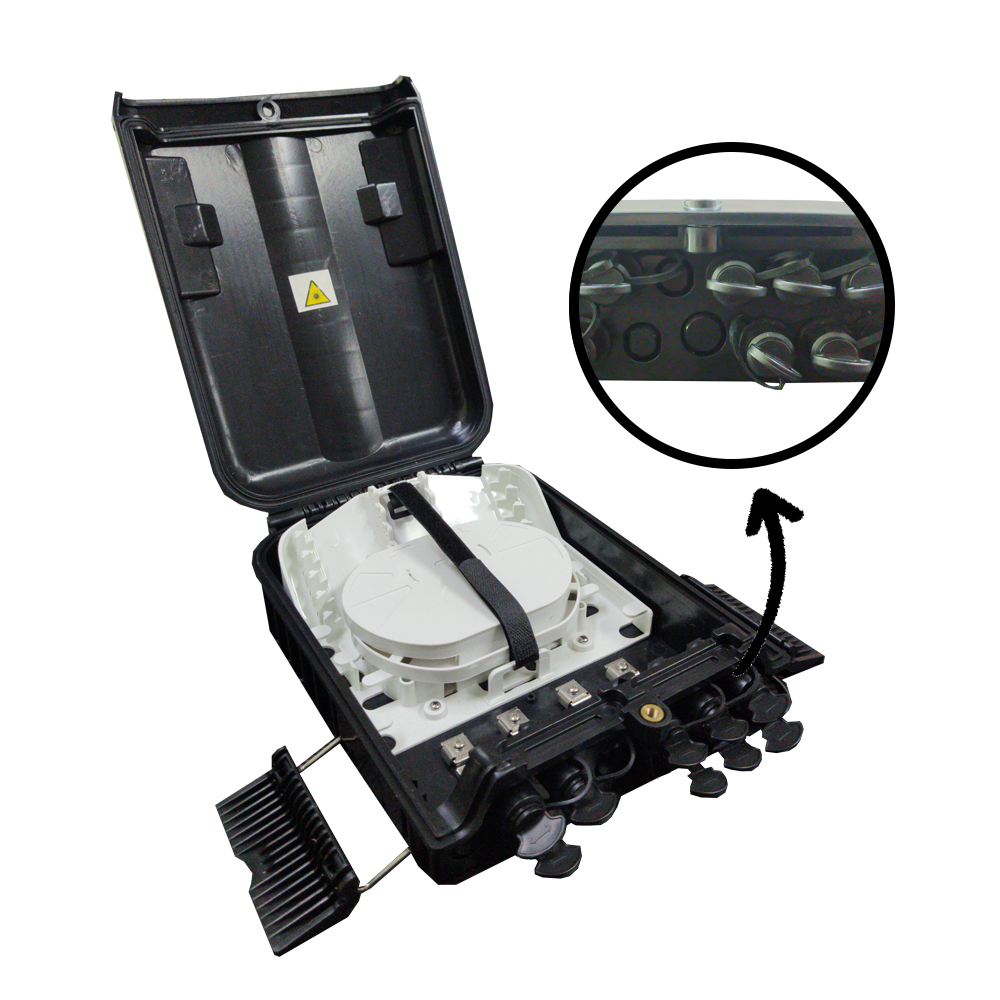

The biggest feature of this box is the design of a new drop cable outlet. Compared with the normal style of fiber terminal box, The optical drop cable passes directly from the surface makes it easier to install and maintain.
At the same time, the waterproof level reaches IP65. This box can be equipped with 1*9
Mini splitter and 9 adapters.
2.FEATURES fiber optic distribution box
1) Clip-lock new design
2) Wet-proof water-proof dust-proof anti-aging, protection level up to IP65
3) Clamping for feeder cable and drop cable, fiber splitting, splicing, fixation, storage, distribution...etc all in one
4) Up to 9 FTTH drop cable
5) Wall and pole mountable
3.SPECIFICATION
MODEL |
CT-N3-9S
|
Max. Capacity |
12 |
Dimension（L×W×H） |
290*210*82mm
|
N.W. (kgs) |
1.36 KG
|
IP level |
IP 65 | Material |
70%PC+30%ABS |

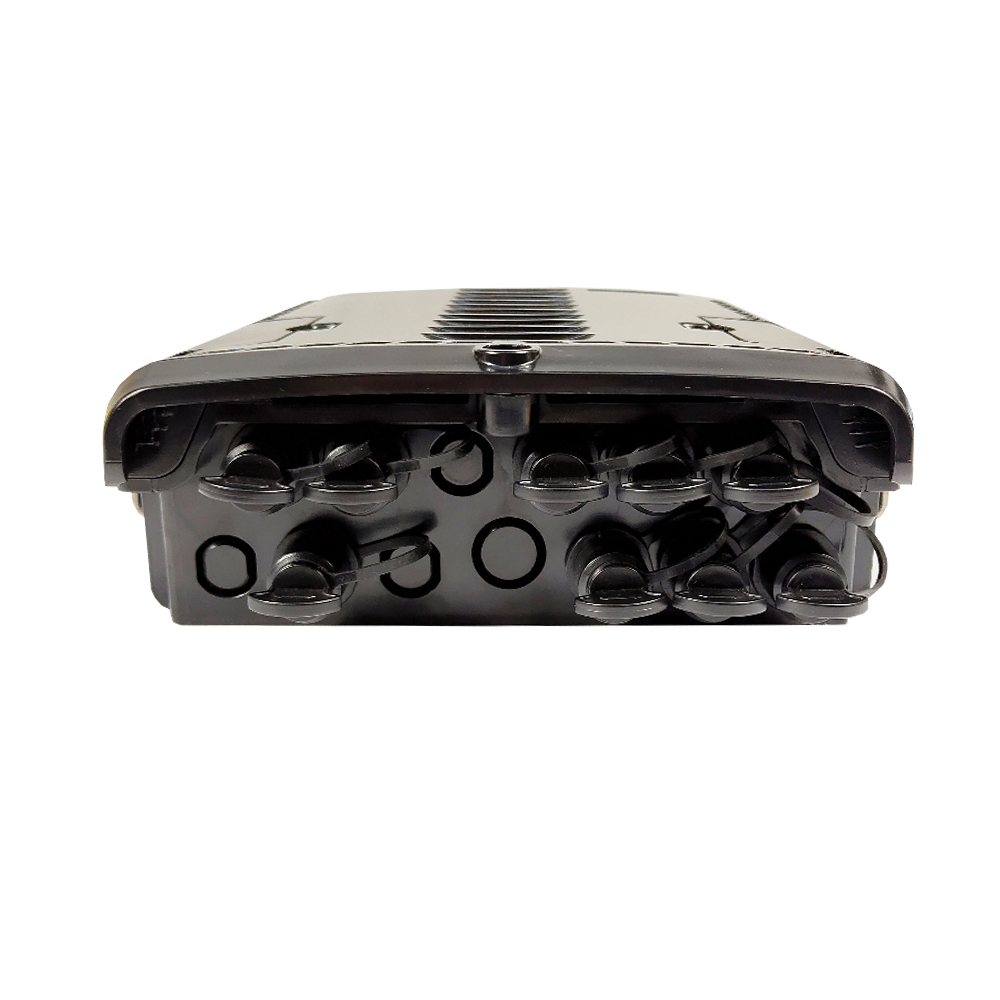

In/out port | 1 uncut cable port 2 Cable glands 12 Drop Cable Ports | ||
4.ORDERING INFORMATION
① Empty Box without Pole Strap
② Empty Box with Pole Strap
③ Empty Box with 1*9 Mini Type splitter+ 9 adapters or with 1*9 insert splitter
④ Empty Box with required splitter+adapters or required insert splitter
