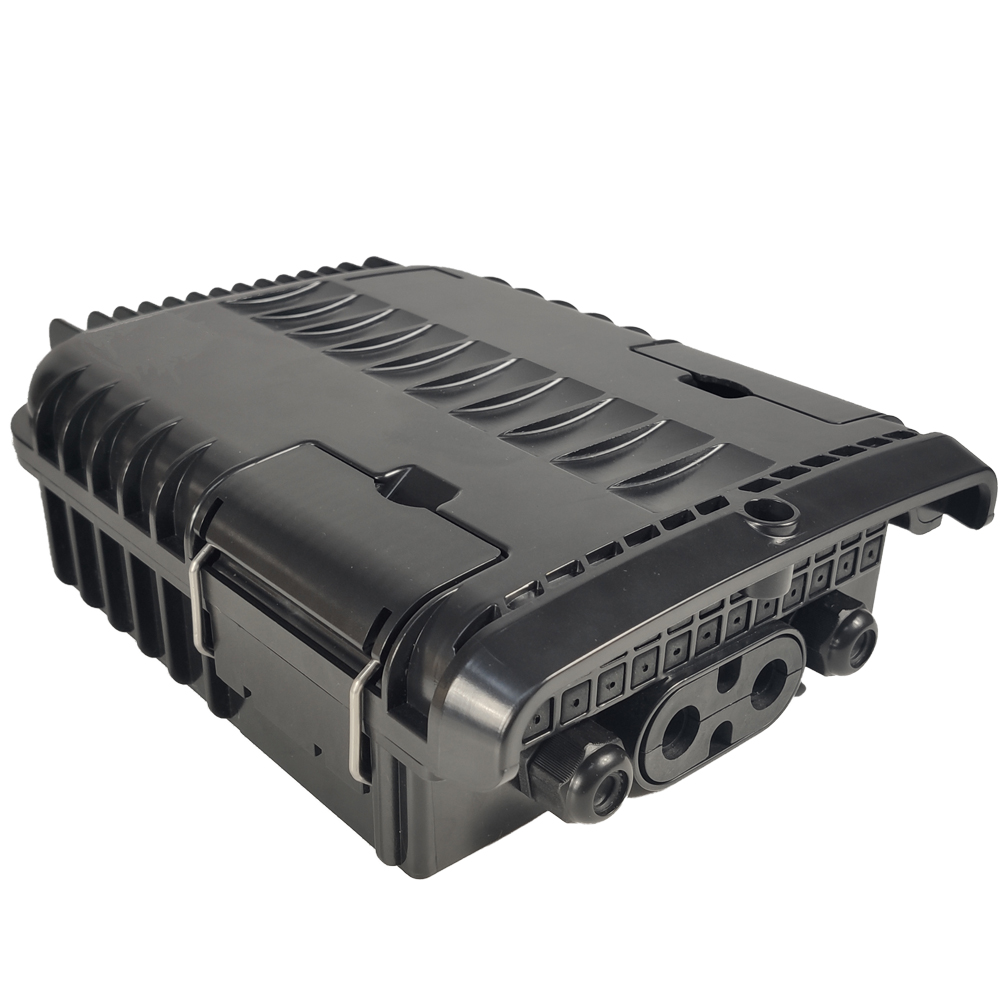

1. Description

The equipment is used as a termination point for the feeder cable to connect with  drop cable  in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2. Features

1. Total enclosed structure.

2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65/66.

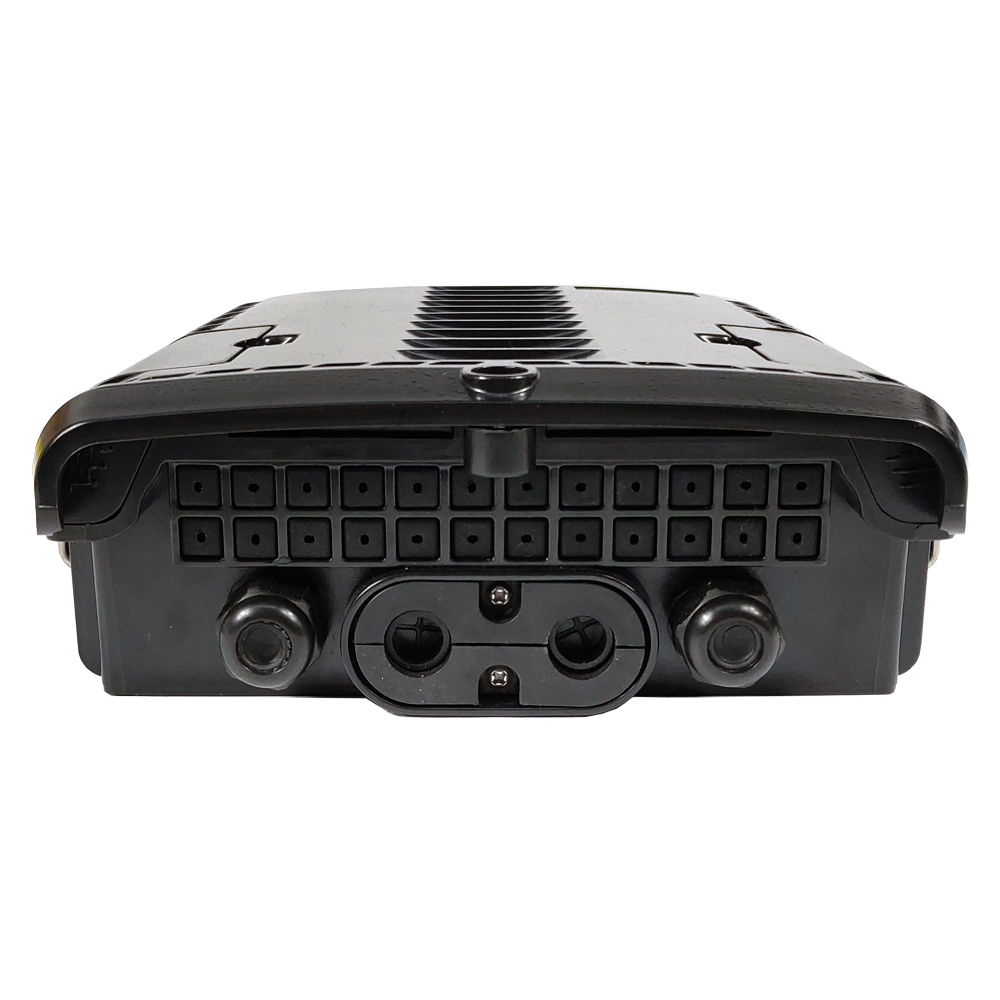

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

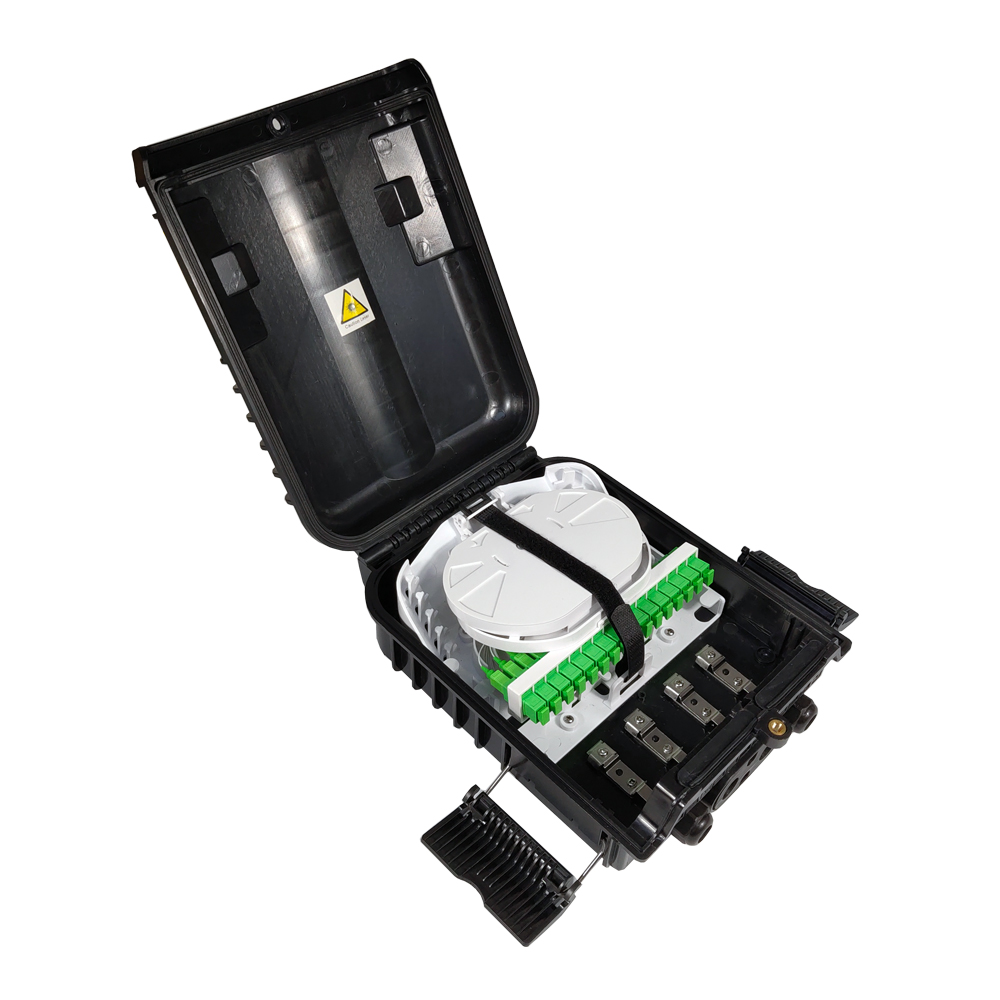

4. Cablepigtailsand  patch cords  are running  through their own paths without disturbing each other, micro type PLC splitter installation,easy maintenance.

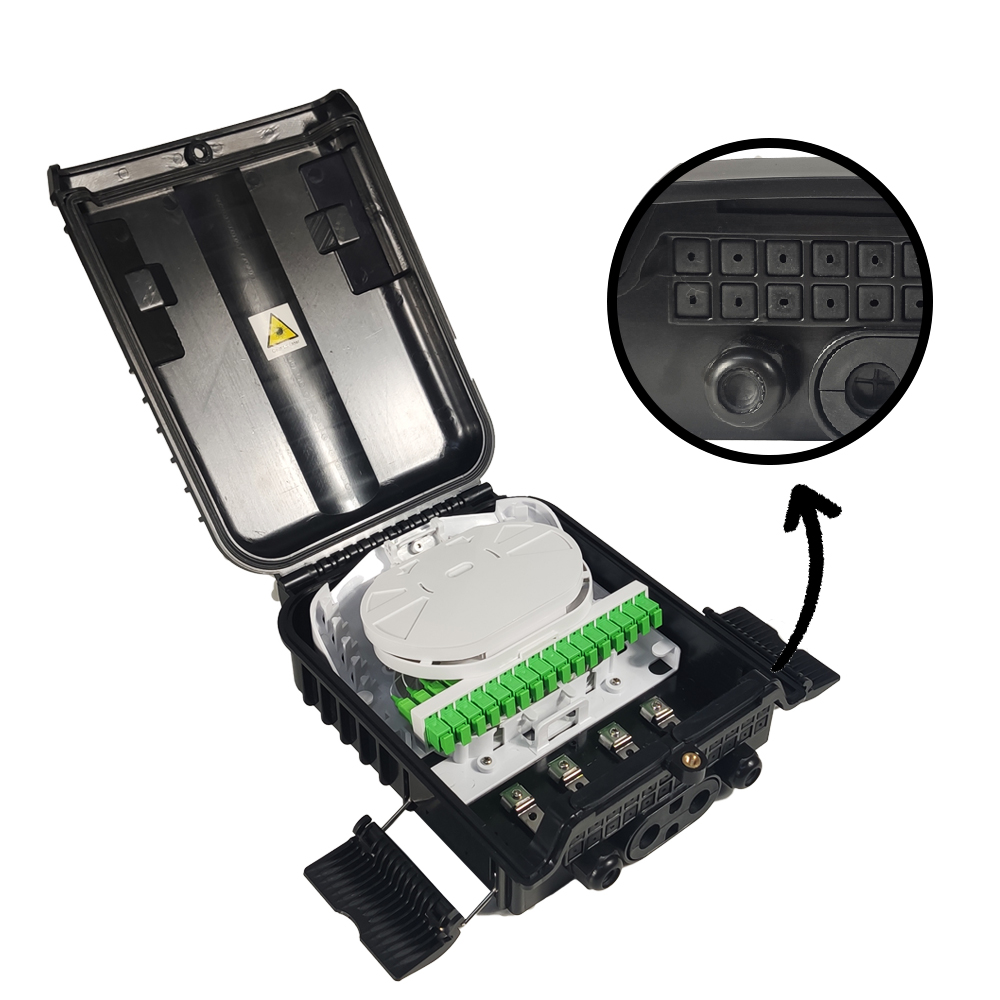

5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

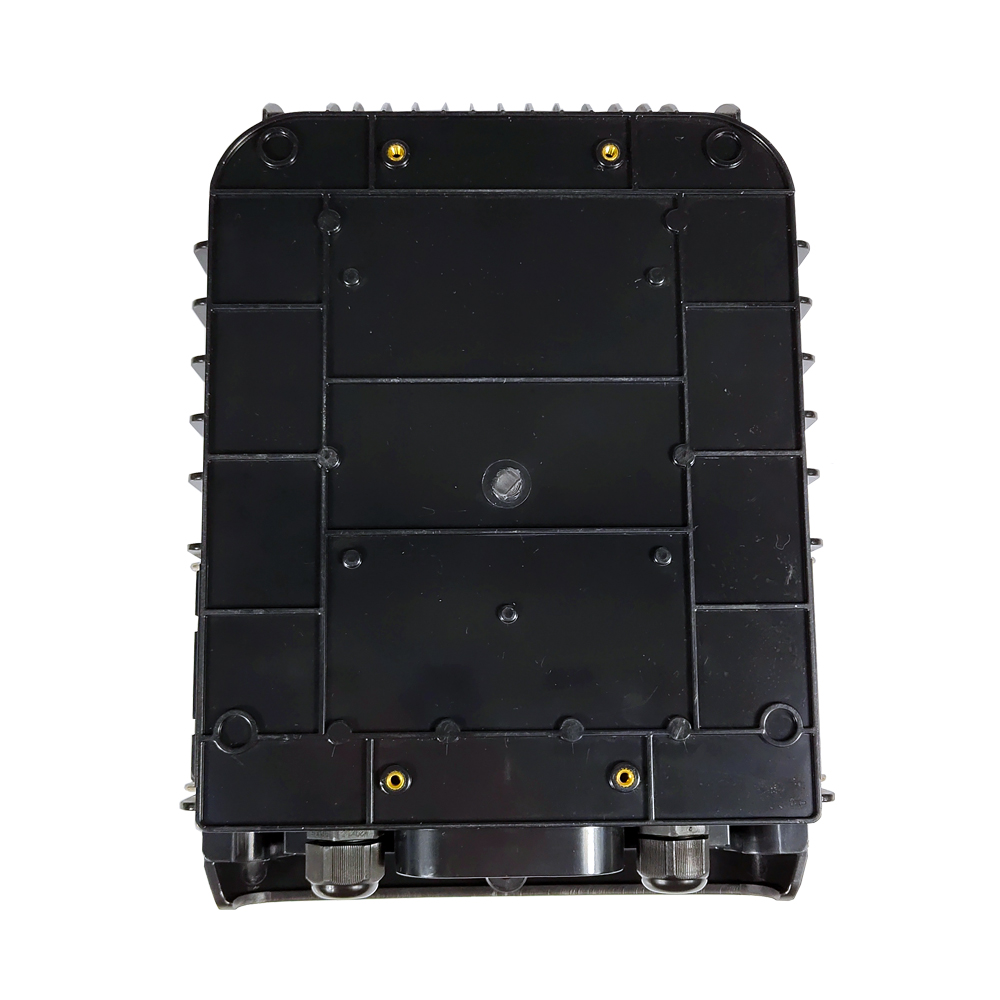

6. Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.

3. Specification

1. Environmental requirement

Working temperature:-40℃+85℃

Relative humidity: ≤85%+30℃

Atmospheric pressure: 70KPa-106Kpa

2. Main technical datasheet

Insertion loss≤0.15dB UPC return loss≥50dB APC return loss≥60dB

3. Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2*104 MΩ/500V (DC)IR≥2*104 MΩ/500V

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashoverU≥3000V


1. Configuration table



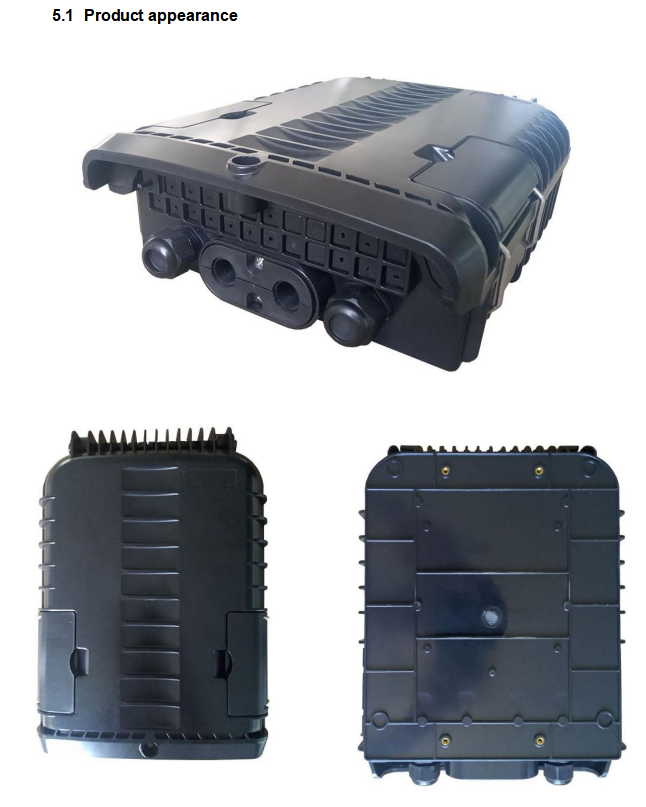

  4.1 TLM-N4-24A



Configuration table

Wall mounting

Pole mounting installation

Model

24 core

24 core

Size(mm)

290*210*82

290*210*82

Material

       PC/ABS

PC/ABS

Color

black

black

Inner box size(mm)

300*220*95

300*220*115

Individual weight(kg)

1.32

1.42

Outer box size(mm)

500*310*460

600*310*460

Gross weight(kg)

13.9

14.9

Outer box  capacity(PCS)

10

10

Into the largest cable diameter(mm)

12

          12
