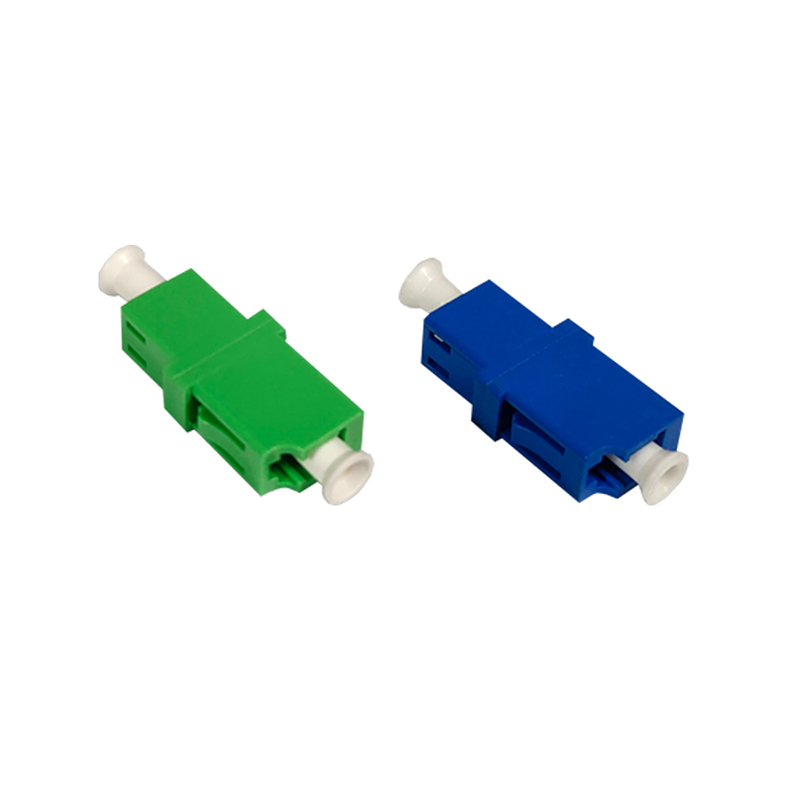

Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FS supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.

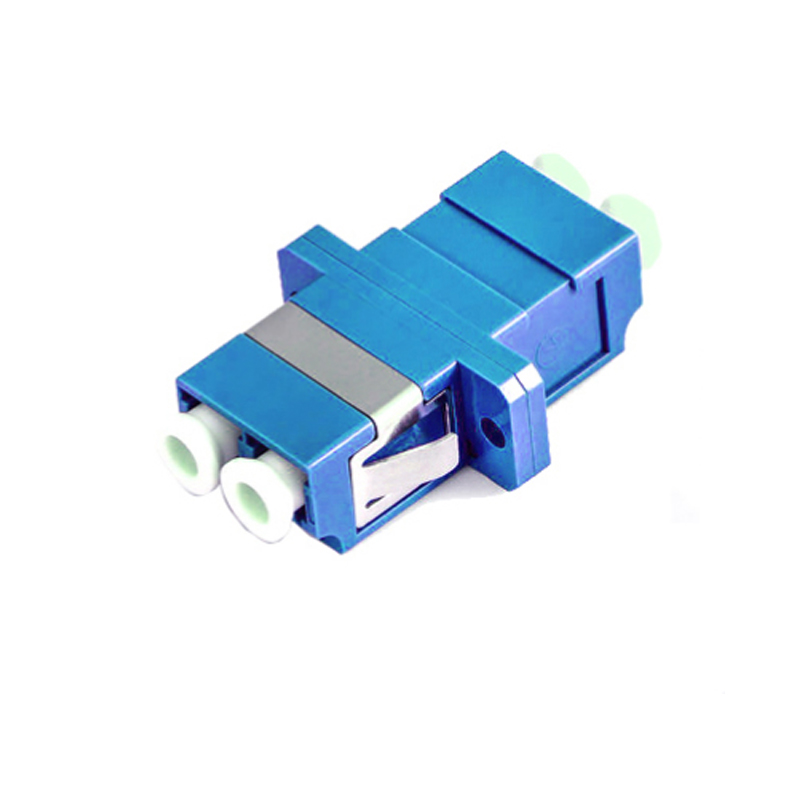

LC Duplex Adapter 2.jpg

 The Application of Fiber Optic Adapter

1) Network Protection

2) Monitoring

3) Access/PON Distribution

4) CATV

5) FTTH

The Specification of Fiber Optic Adapter

S.N

Parts

Material

Color

1

Dust Cap

PBT

   Black

2

Housing

PC

APC Green/ PC Blue

3

Inner Frame

PBT

APC Green / PC Blue

4

Sleeve

Ceramic

Milk White

5

Metal ring

SUS304

Metal Color






Performance of Fiber Optic Adapter

Parameter

Unit

LC,  FC, ST,MTRJ,MPO

SM

     MM

    PC

    UPC

   APC

     PC

Insertion Loss

    dB

   ≤0.3

   ≤0.3

   ≤0.3

    ≤0.3

Exchangeability

    dB

                                   ≤0.2

Repeatability

    dB

                                   ≤0.2

Durability

  Time

1000

Operating Temperature

    °C

-4575

Storage Temperature

    °C

-4585
