FIBER OPTIC ADAPTER

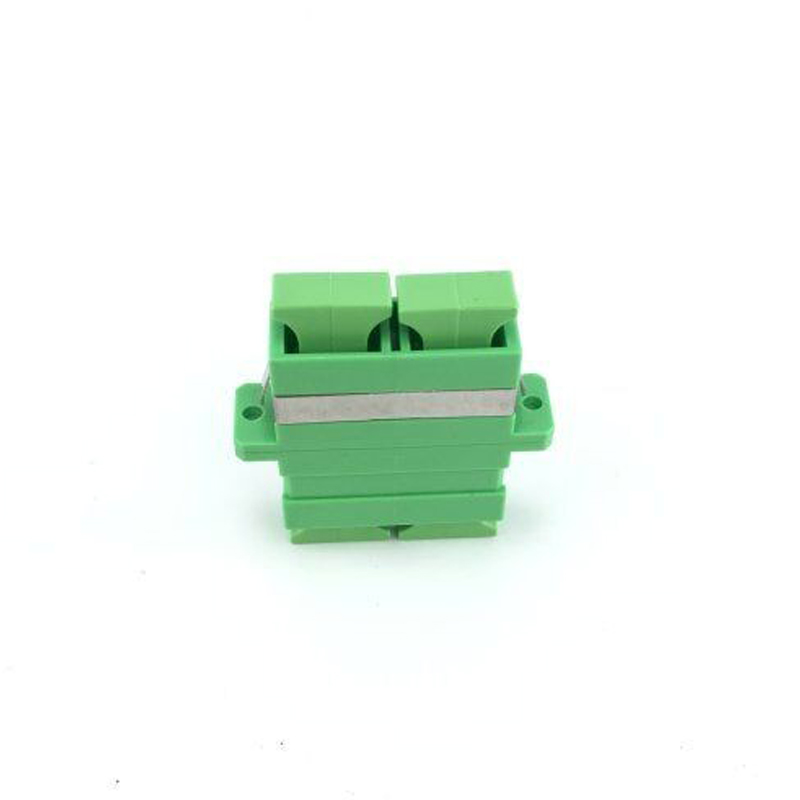

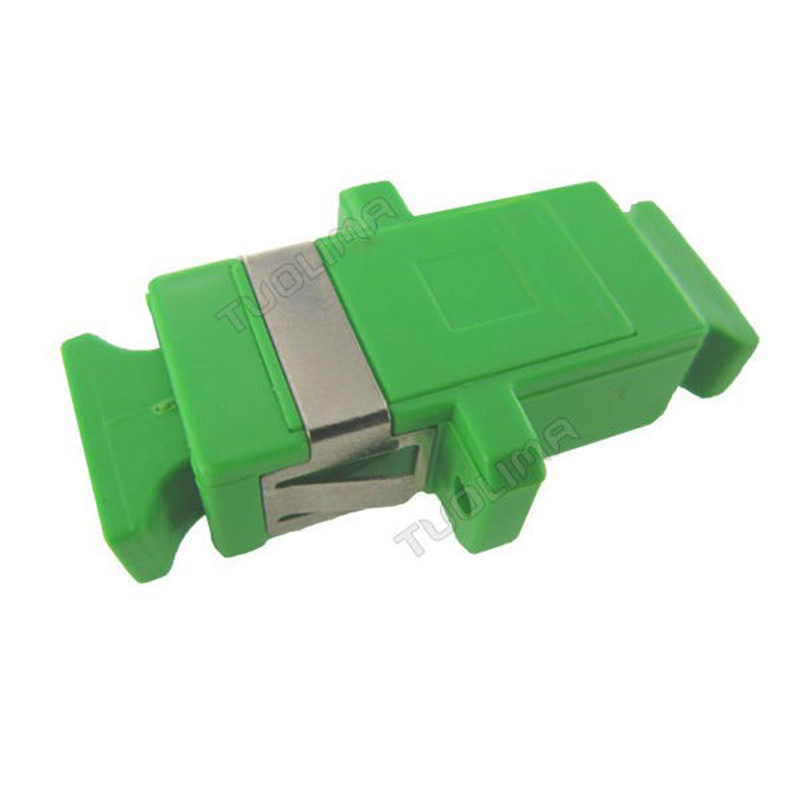

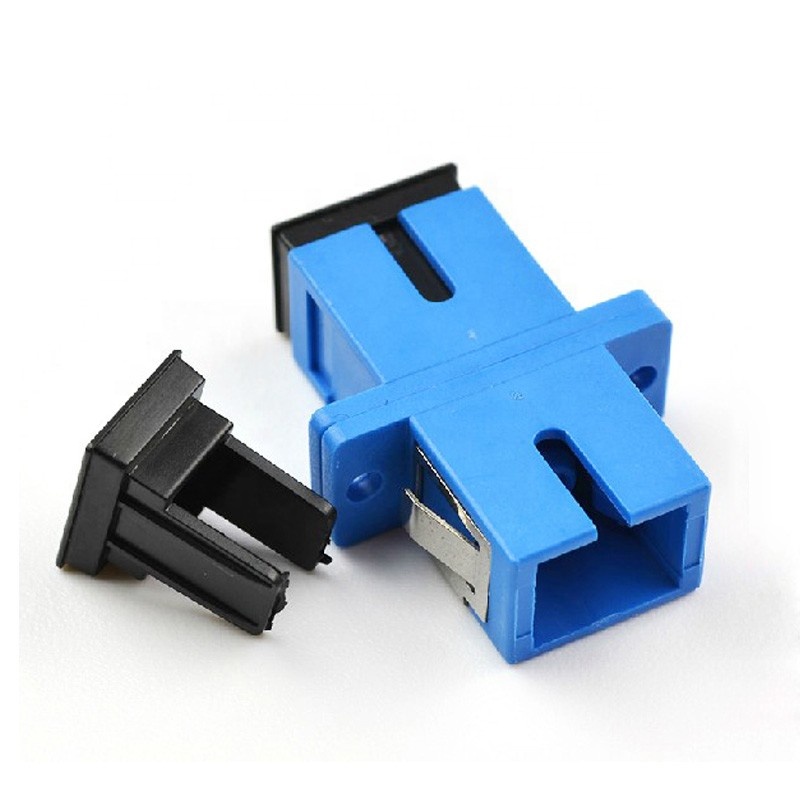

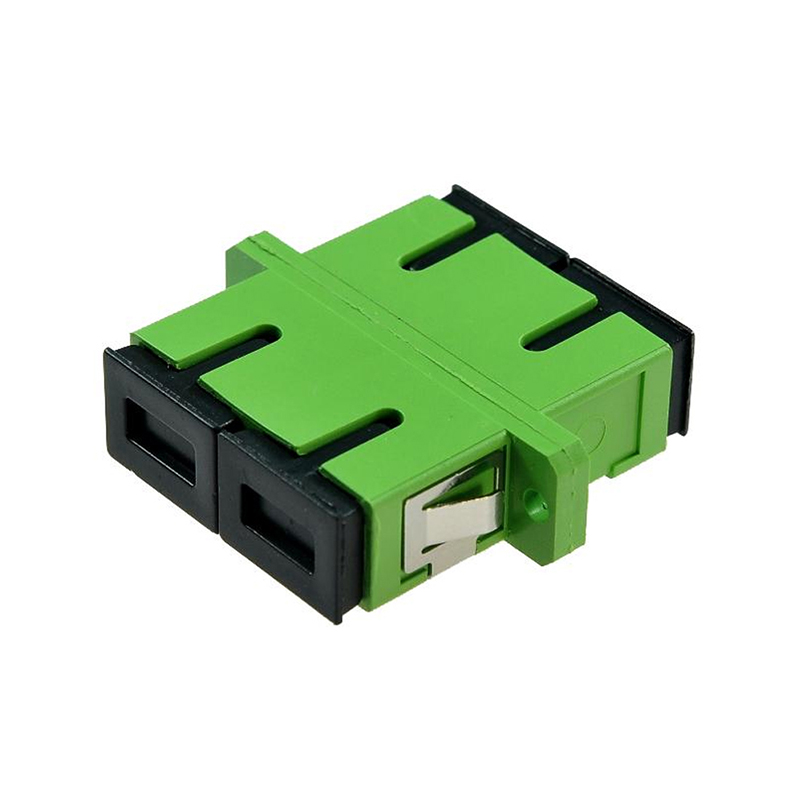

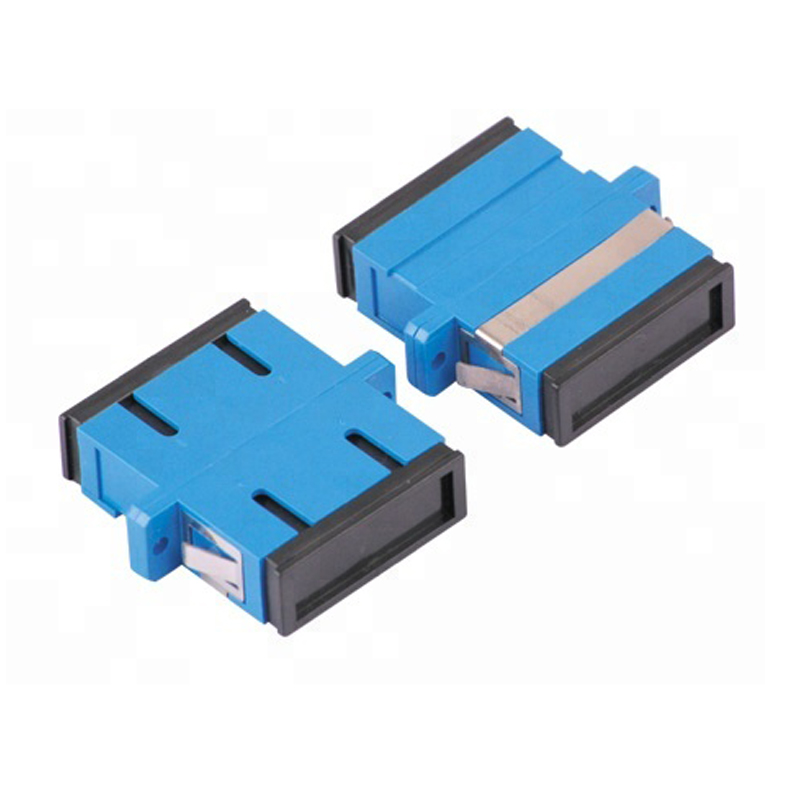

FIBER OPTIC SC ADAPTER
FIBER OPTIC SC ADAPTER
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FS supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.
The Application of Fiber Optic Adapter
1) Network Protection
2) Monitoring
3) Access/PON Distribution
4) CATV
5) FTTH
The Specification of Fiber Optic Adapter
S.N | Parts | Material | Color |
1 | Dust Cap | PBT | Black |
2 | Housing | PC | APC Green/ PC Blue |
3 | Inner Frame | PBT | APC Green / PC Blue |
4 | Sleeve | Ceramic | Milk White |
5 | Metal ring | SUS304 | Metal Color |
Performance of Fiber Optic Adapter
Parameter | Unit | SC | |||
SM | MM | ||||
PC | UPC | APC | PC | ||
Insertion Loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
Exchangeability | dB | ≤0.2 | |||
Repeatability | dB | ≤0.2 | |||
Durability | Time | 〉1000 | |||
Operating Temperature | °C | -45～75 | |||
Storage Temperature | °C | -45～85 | |||
