FIBER OPTIC PIGTAIL

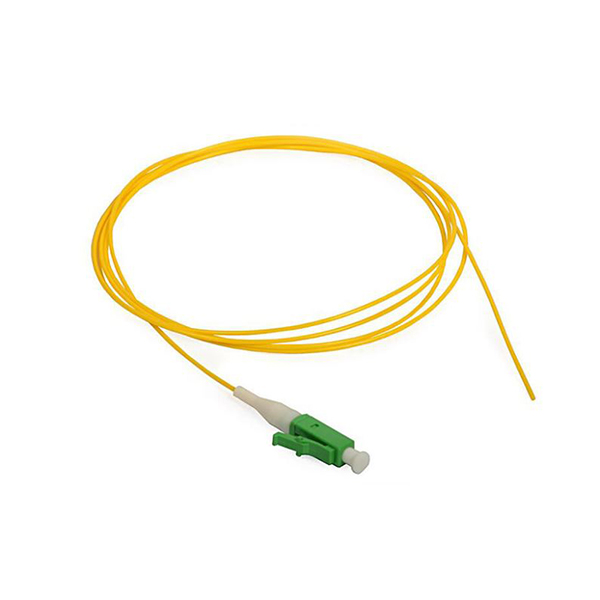

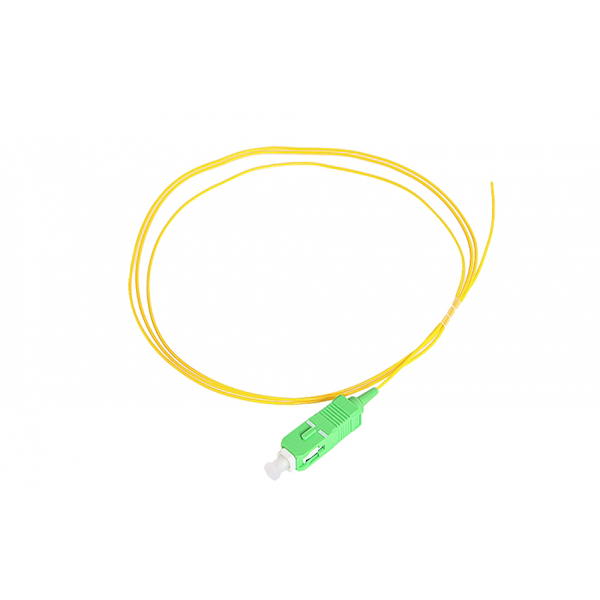

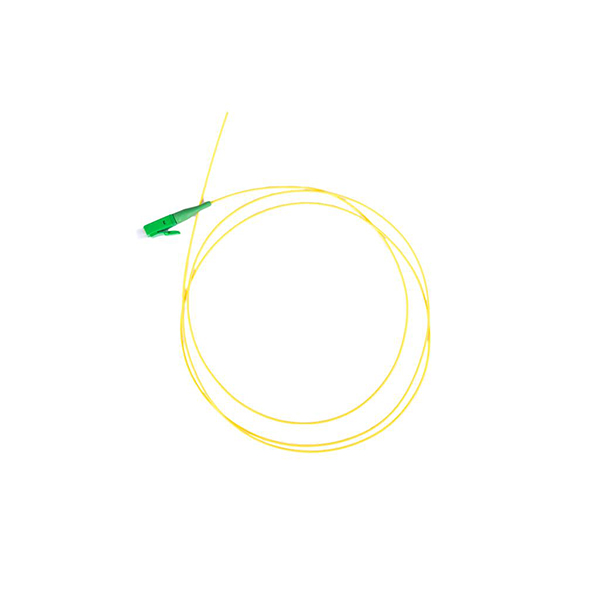

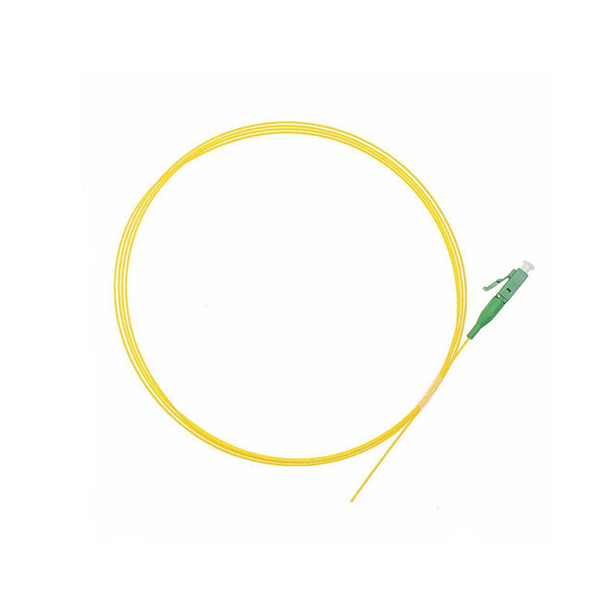

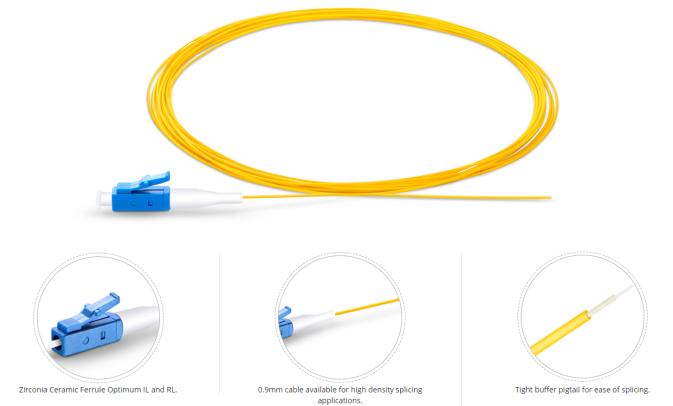

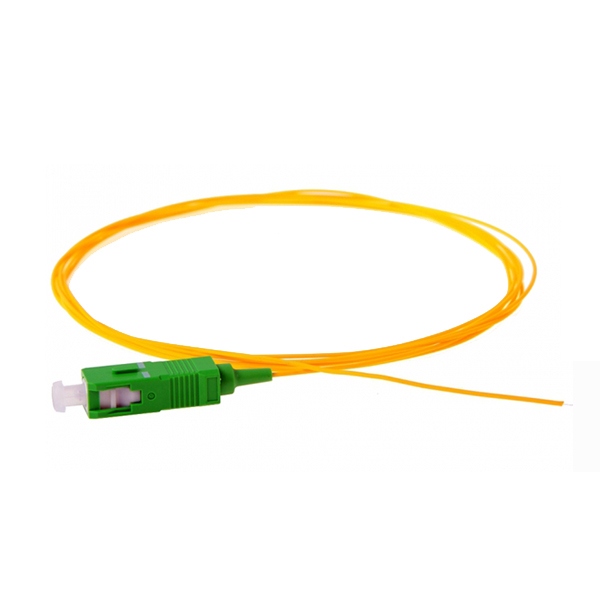

FIBER OPTIC SC LC PIGTAIL
FIBER OPTIC SC LC PIGTAIL
Description
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Product Specifications
Specification | ||||||
Item | Unit | SM | MM | |||
SC/UPC SC/APC | SC/PC | |||||
Insertion Loss | dB | ≤0.20 | ||||
Max. Insertion Loss | dB | ≤0.30 | ||||
Repeatability | dB | ≤0.10 | ||||
Changeability | dB | ≤0.20 | ||||
Return Loss | dB | 45 | 50 | 60 | ||
Operation Temperature | ℃ | -25 ~ +70 | ||||
Storage Temperature | ℃ | -40 ~ +85 | ||||
Fiber type | um | 9/125 | 50/125，62.5/125 | |||
Core number | single fiber | |||||
Durability | ＞1000 times | |||||
Diameter | nn | 0.9 | ||||
Industry Standard | Bellcore TA-NWT-001209 | |||||
