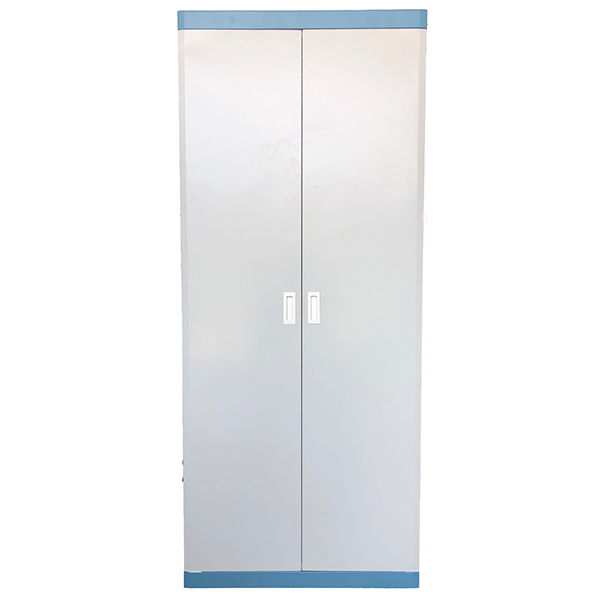

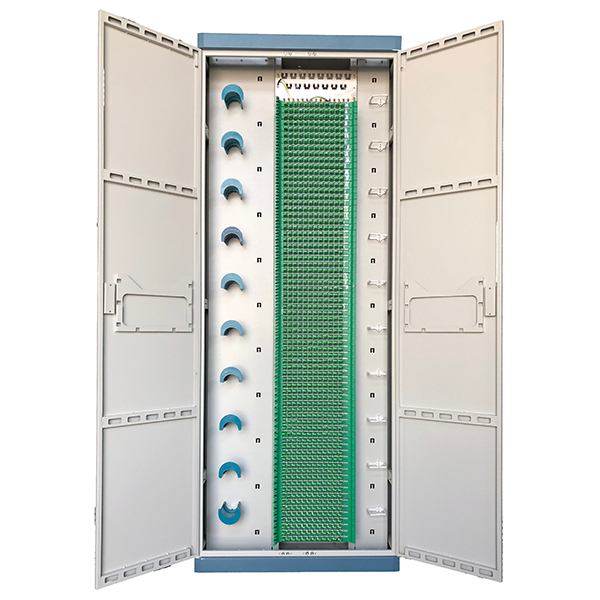

GPX-K FIBER OPTIC RACK MOUNTED 720Core PATCH PANEL
GPX-K FIBER OPTIC RACK MOUNTED 720Core PATCH PANEL
Dimensions and Capability | ||
Dimensions(H*W*D) | Quantity of 12 cores integrated trays | Full capacity (without splitter tray) |
2000*840*300 | 60 | 720 |
2200*840*300 | 72 | 864 |
2600*840*300 | 84 | 1008 |
*Customized designs are available upon request
material quality | |
Component name | Thickness （mm） |
Top of box/Bottom of box /Cabinet post /Cabinet frame | 1.5 |
Other components | 1.2 |
Overview
optical fiber distribution frame GPX-K is made of top quality steel alloy and treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance.
Features
l This frame reached both YD/T778 and Chinese telecom enterprise product standard “CT GPX-K Optical Fiber Distribution Frame (splice and distribution integrated module)”.
The indoor frame contains the functions of optical fiber terminal, distribution, transfer and storage, with the advantage of big capacity, convenient for operation, as well as plays a major role in optical cable
l communications.
l Fully front side operation.
l Adapters are installed on the 12 cores splice and distribution integrated tray, as well as the tray is installed on the tray rack mount. (Capacity subjects to different requirements)
l Cable and pigtail can be inlet from the top of the frame. Cable (fiber) inlet hole is protected by cable-protected belt and contains enough space for fiber crossing.
l Both left and right sides of the frame are embedded removable structure, as well as the side rack should be removed when frames combine.
Optional Elements
l Hardware to fasteners, and fastening to the number of fiber needed can be offered on request.
l Elements to protect buffers depending on the number of cables needed can be offered on request.
l Accessories such as screws, nut, fasteners for raiser floor or concrete floor can be offered on request.
l Customer’s logo can be printed on the upper left corner or upper right corner of the frame on request.
Operation Conditions | |
Temperature | -5℃ -- 60℃ |
Humidity | 90% at 30℃ |
Air Pressure | 70kPa – 106kPa |
Shipping Information | |
Package Contents | ODF 1 unit |
Package Dimensions(W*H*D) | It depends on the dimensions of the product |
Material | wooden box |
Weight | It depends on the dimensions of the product |
Lead Time | 10-15 working days normally |
