OUTDOOR FIBER OPTIC TRNSION CABLE CLAMP
FTTH Cable Tension Clamp ACC
Ø DESCRIPTION
ACC cable clamp for drop cable clamp 2X6mm2.
connection clamp
It is intended for suspension of flexible subscriber cables FTTH with optical fiber.

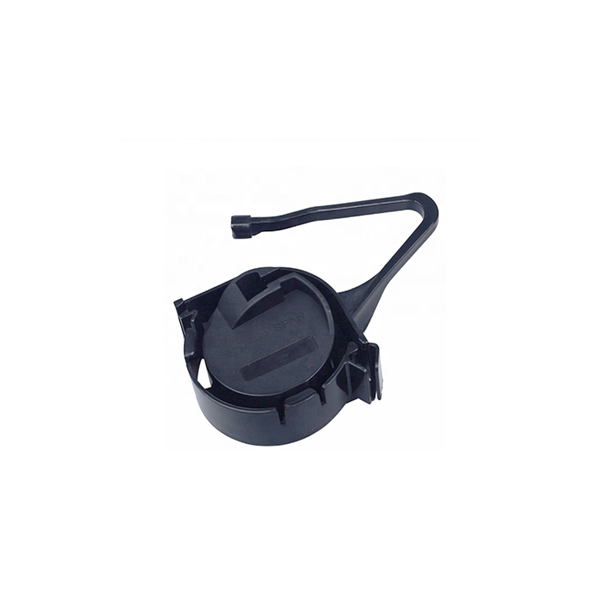

It consists of a round (heart-shaped) body and an open bow-duck that can be securely clamped into the clamping body. The clamp is made of PA66 nylon.
Used as an anchorage of a flexible cable on the end support (on poles, buildings). When using two clamps, suspension is carried out on intermediate supports.
the device allows the connection at some stops on pole and front connecting cables (3 to 6 mm round. the single piece plastic at is composed of a drum shaped body which is coiled around (3 rounds), and self tightening the cable, and a locking handle for a minimum installation and on any material with a hole 10 mm.
TUOLIMA offer this tension clamp with appropriate fish type, S-type and other FTTH clamps.
All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature-cycling test.
Key words: Tension clamp for drop wire, Tension clamps for FTTH drop cable, ACC cable clamp.
Ø ORDERING INFORMATION
Code | Outer Material | MBL(kN) | Round Cable Size |
ACC | UV resistant nylon | 1.3kN | 2-6mm |
Weight | Flat Cable Size | Application | |
50g | 2.0*3.0 or 2.0*5.2mm | Drop cable | |

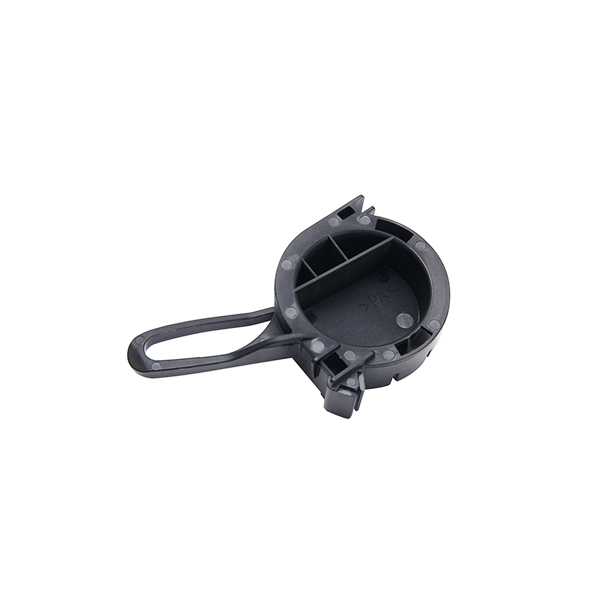

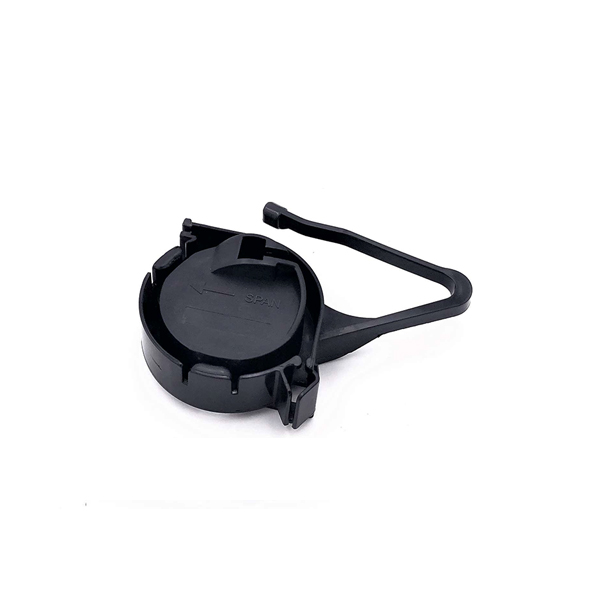

Ø DETAILED IMAGES
Ø FEATURES
• The unique patented design allows the anchoring of the cable on the end support without any radial pressure on the cable and fiber and provides additional protection for the FTTH cable
• The final adjustment of the arrow is at hand.
• When using two clamps, suspension is carried out on intermediate supports.

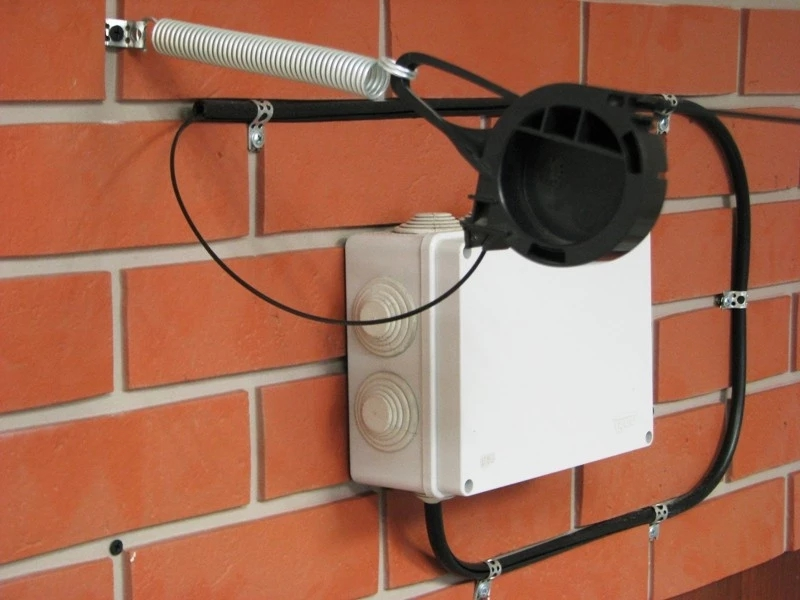

Ø INSTALLATION
