OUTDOOR FIBER OPTIC TRNSION CABLE CLAMP

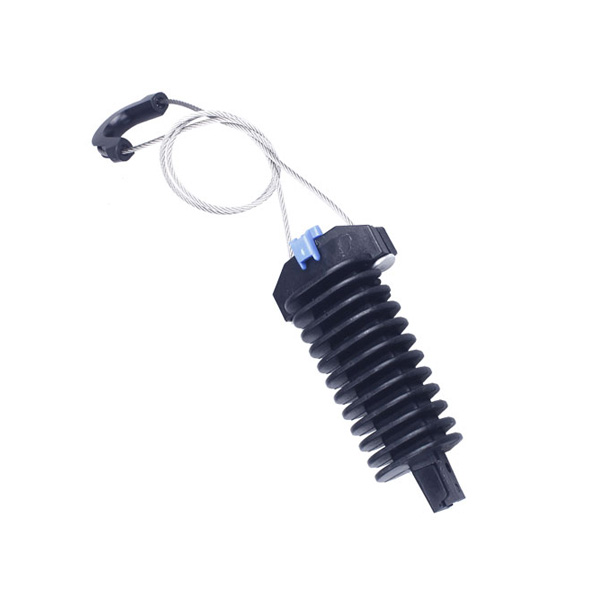

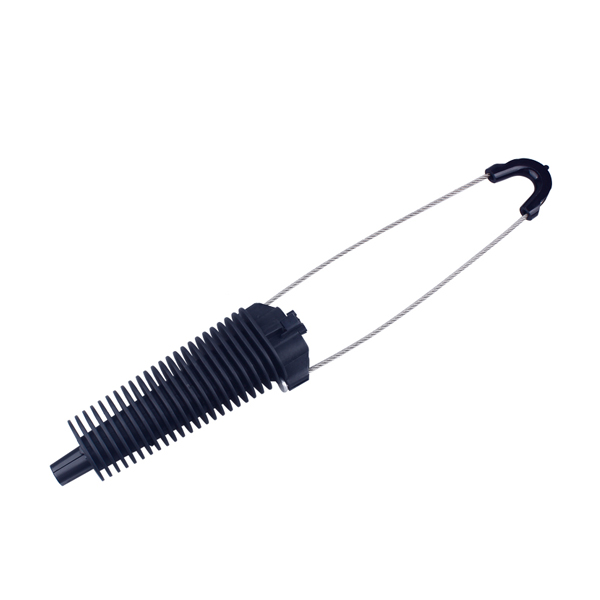

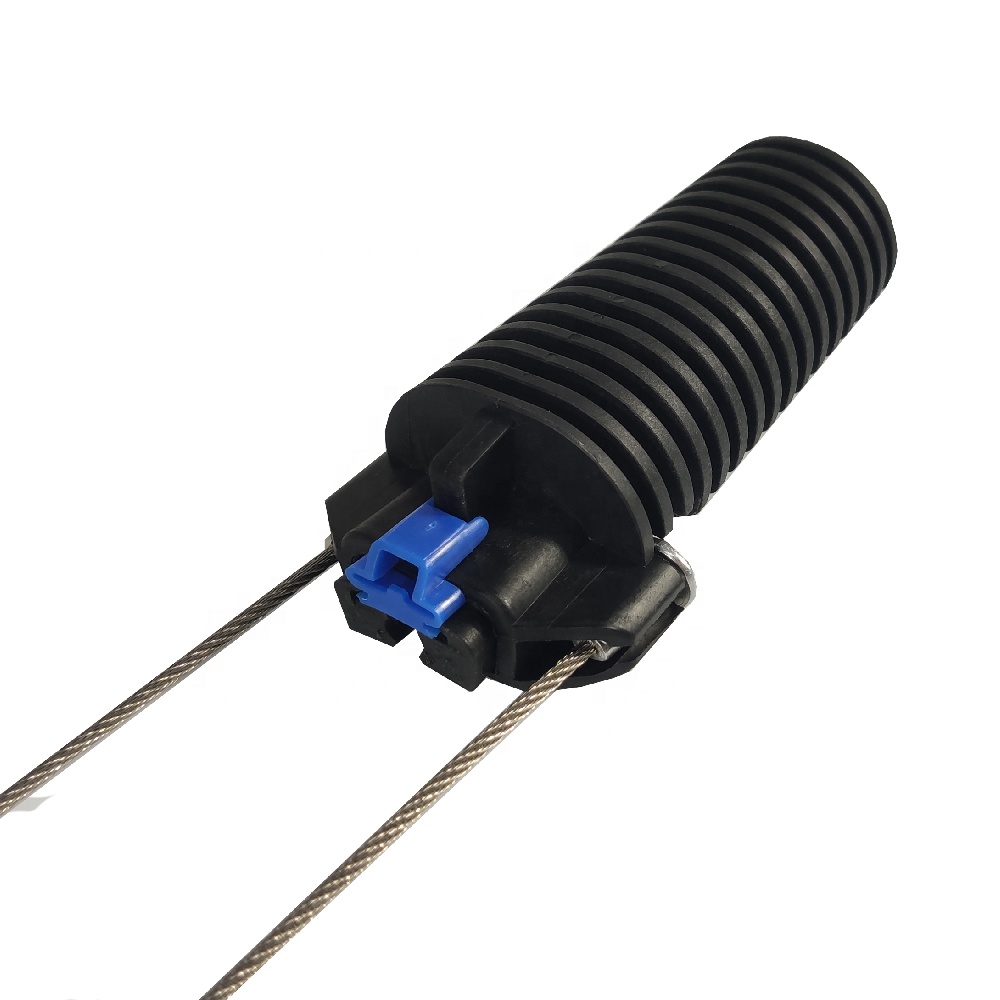

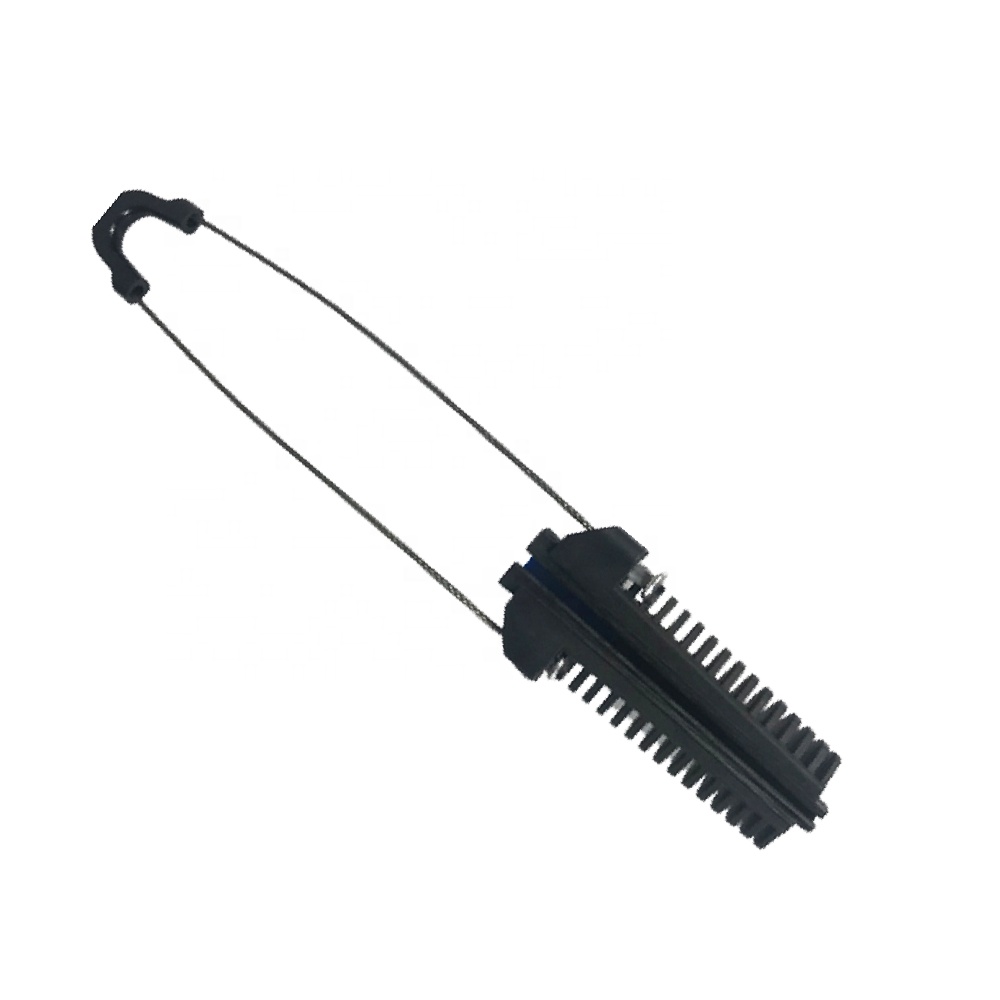

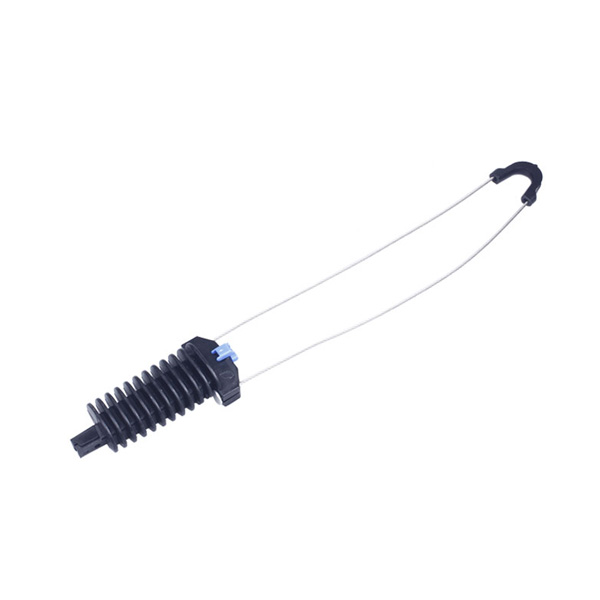

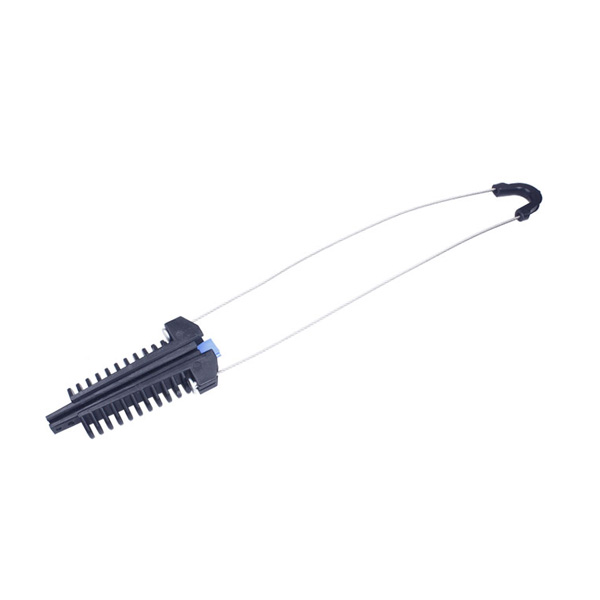

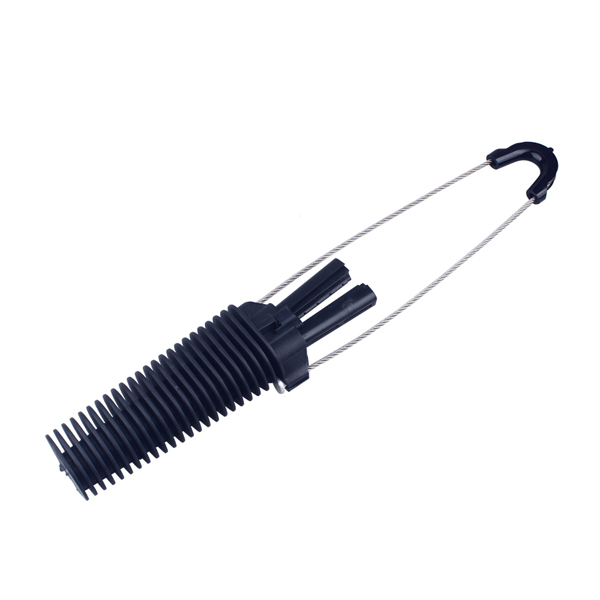

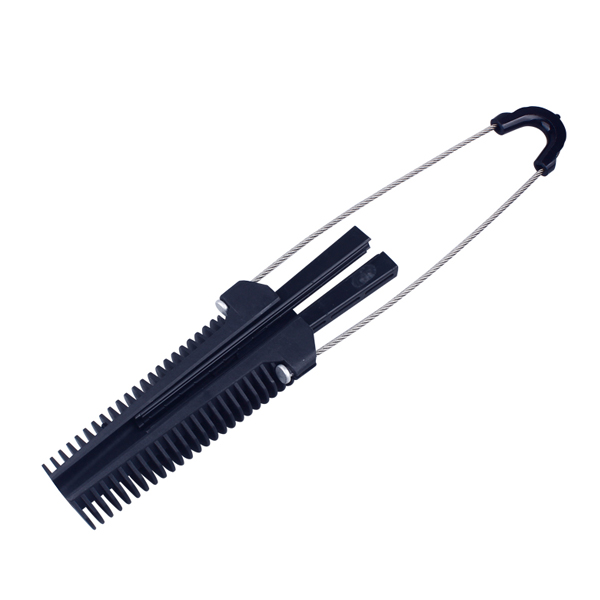

PA-300/500 ADSS Anchoring Clamp
Ø DESCRIPTION
This Conical wedge clamp composed of an opened thermoplastic body with very high mechanical and climatic resistance, an inner sheath consisting one or two insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation.
Two stainless bail ends are compressed on it to lock into clamp. Simple assembling because the wedges open by pulling them back. The flexible steel
loop can be fixed into a closed eye bracket.
The anchoring clamps are designed for a fast, easy and reliable dead-ending offibre optic cables on access networks with spans up to 100 m.
Key words: Suspension clamp,Use for figure 8 cable.
Ø ORDERING INFORMATION
MODEL | Cable Diameter | Material | MBL | Weight |
PA-300 | 4-8mm | Plastic and stainless steel | 3.5kN | 133g |
PA-500 | 4.5-9mm | Plastic and stainless steel | 6kN | 199g |
Ø INSTALLATION
