FIBER OPTIC DROP CABLE CLAMP

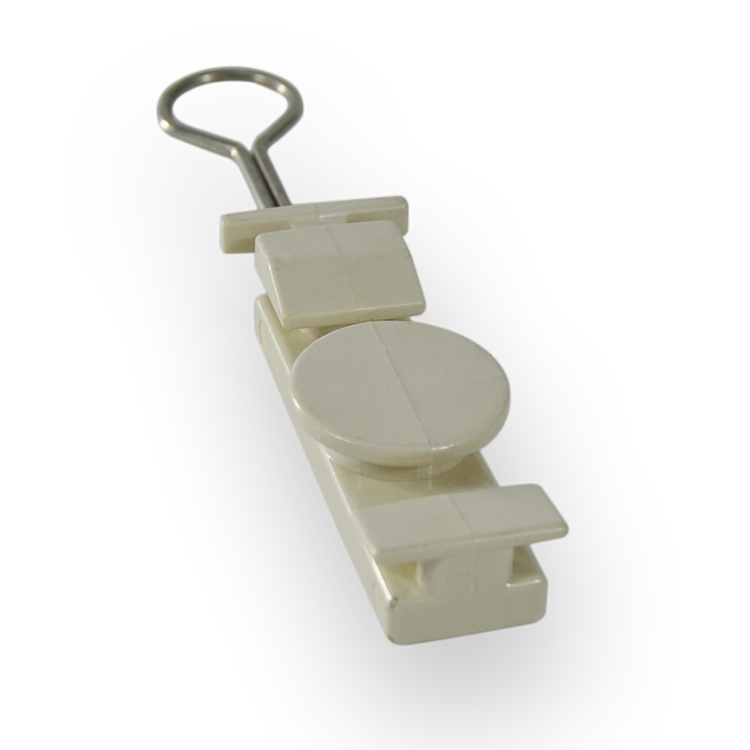

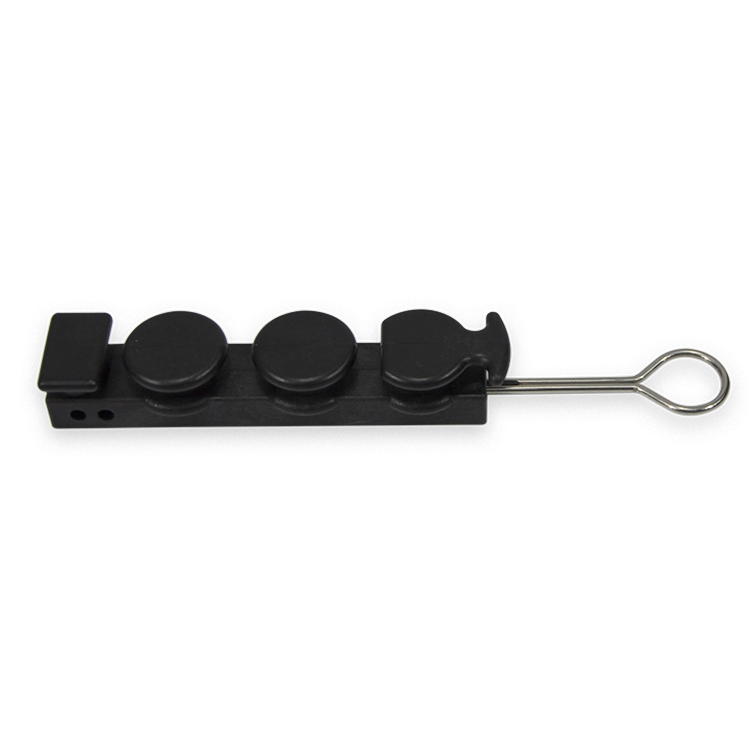

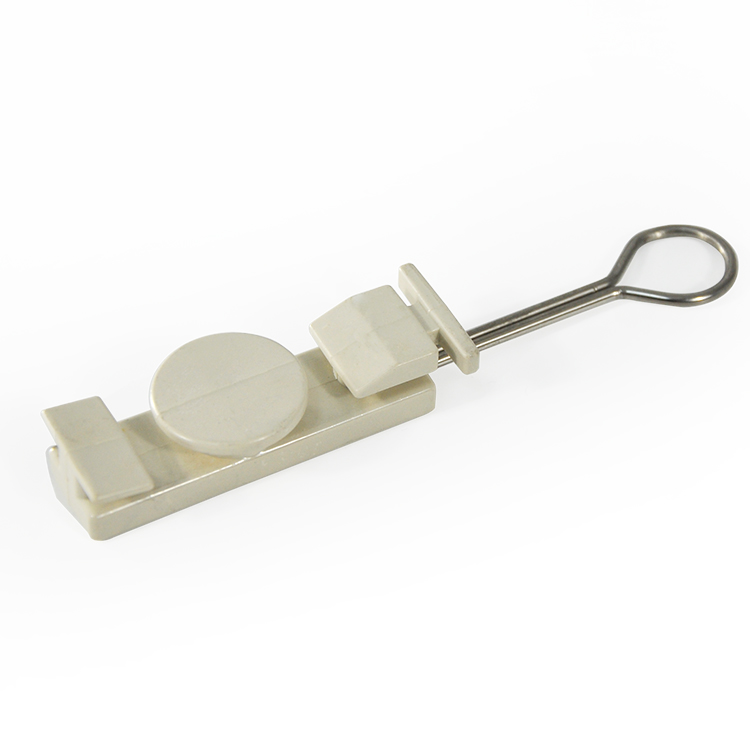

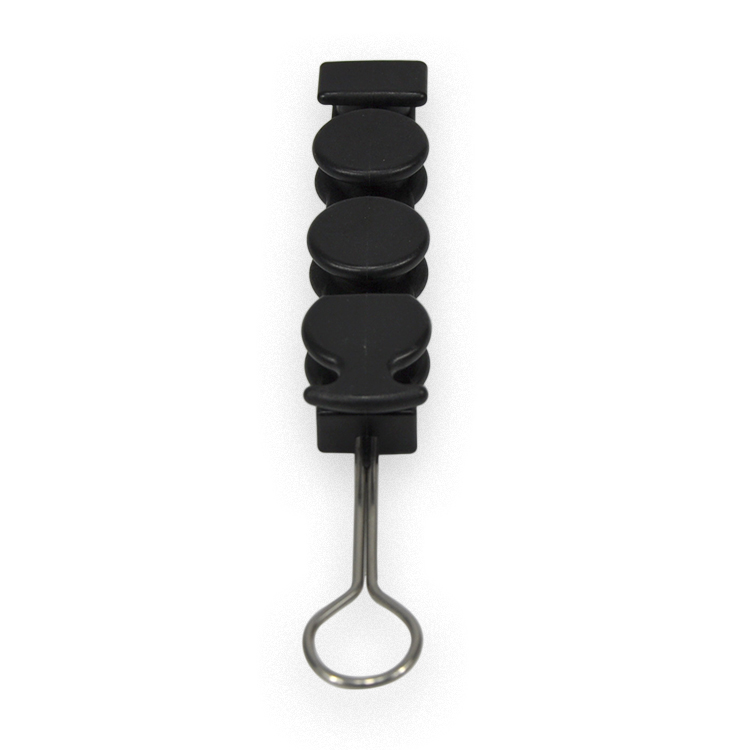

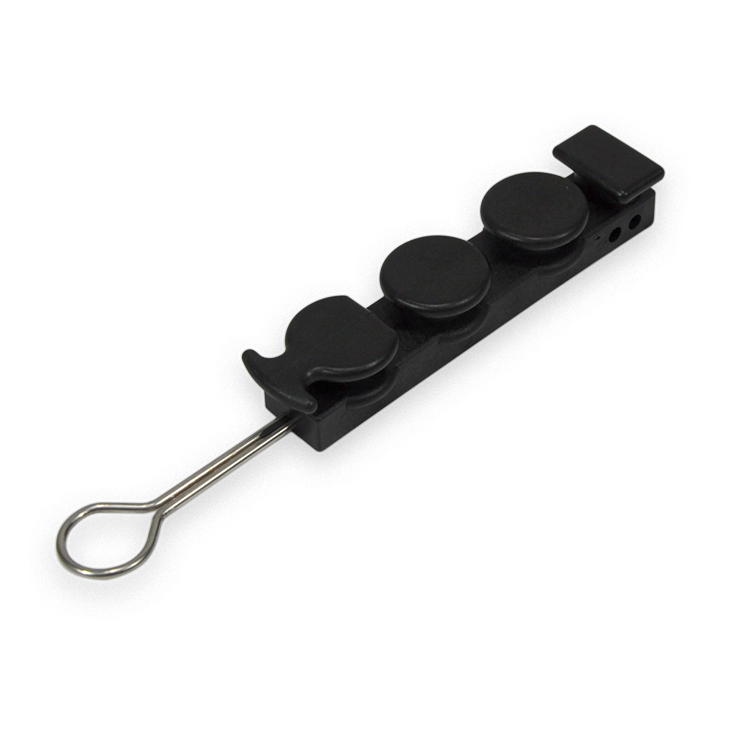

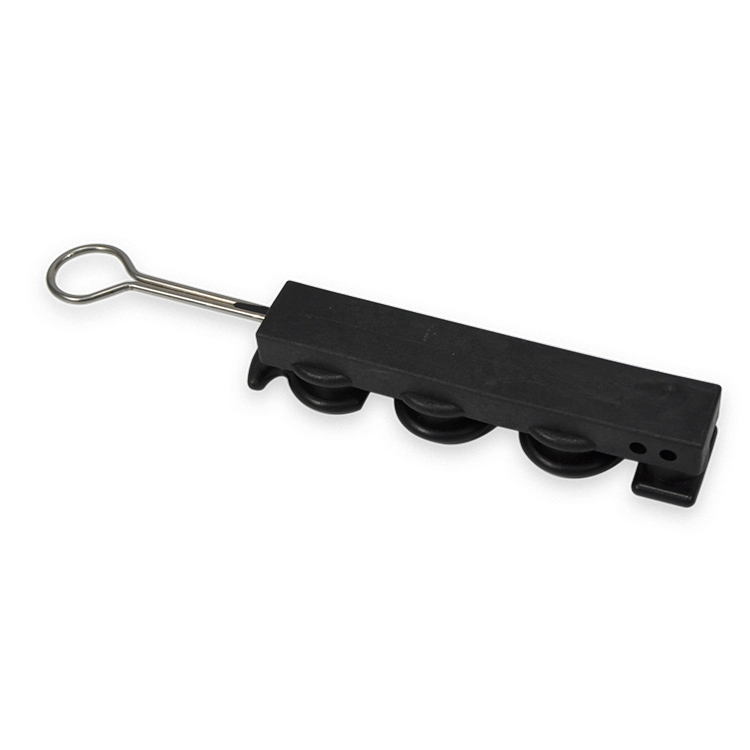

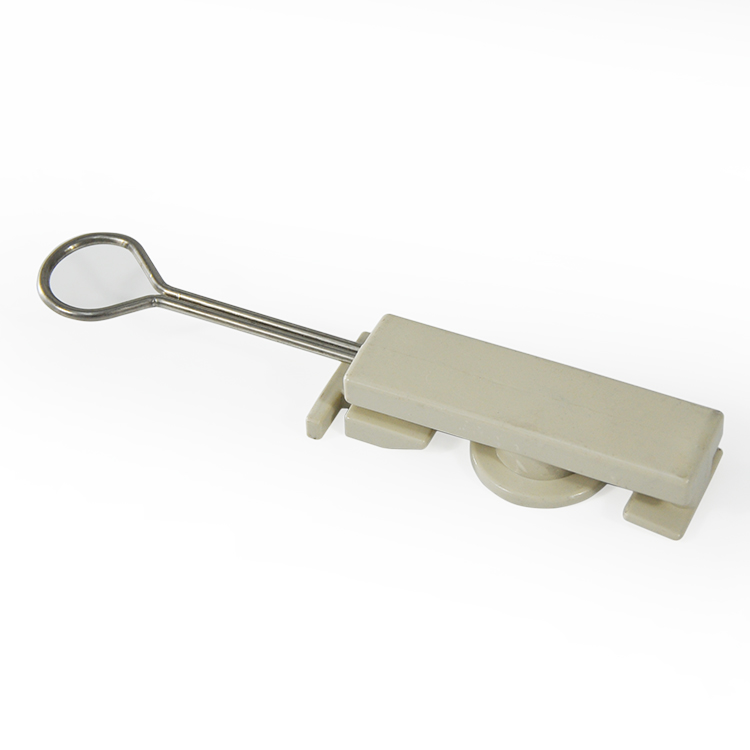

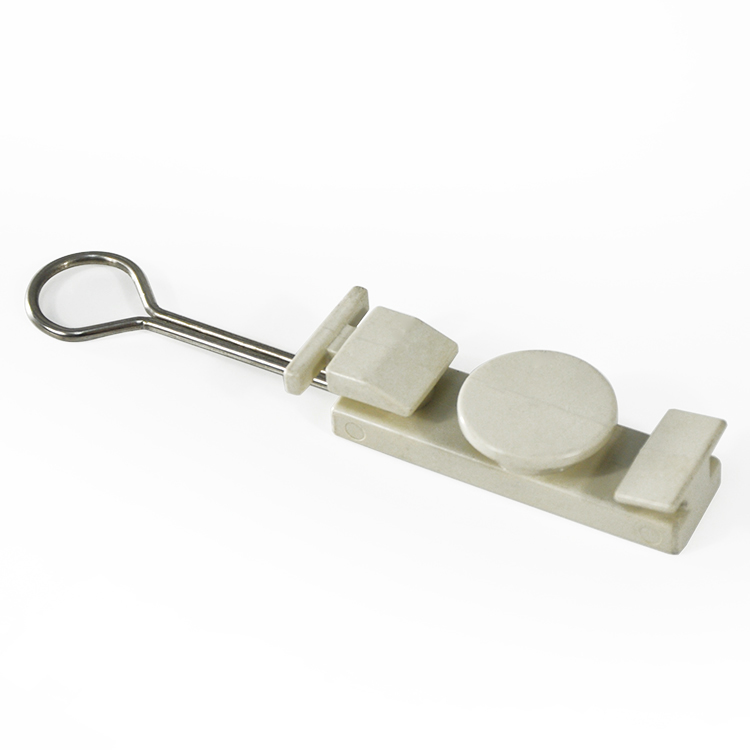

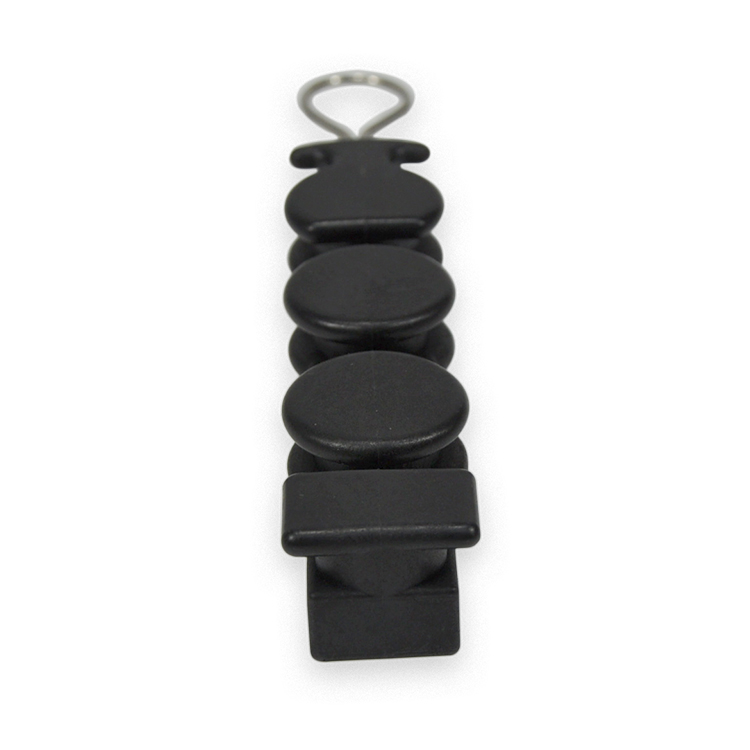

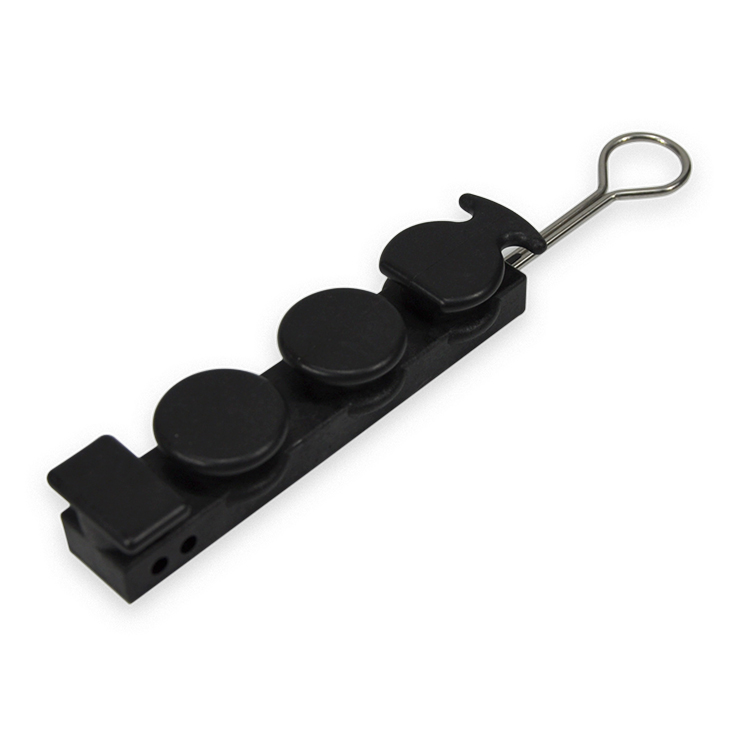

FTTH Cable Tension Clamp S-Type

Ø DESCRIPTION

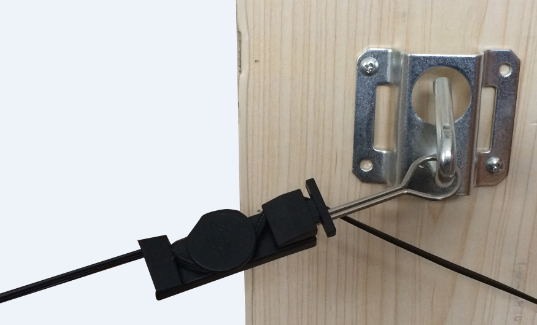

S Fix Drop Wire Clamp is also called insulated / plastic drop wire clamp. It is a kind of drop cable clamps, which is widely used for securing drop wire on various house attachments . The prominent advantage of insulated drop wire clamp is that it can prevent electrical surges from reaching the customer premises. The working load on support wire is effectively reduced by the insulated drop wire clamp . It's characterized by good corrosion resistant performance, good insulating property and long life service.

We offer this tension clamp with appropriate fish type, S-type and other FTTH clamps.

All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature-cycling test.

Key words: Tension clamp for drop wire, Tension clamps for FTTH drop cable, S Fix Drop Wire Clamp.

Ø ORDERING INFORMATION

Code	Material	MBL(kN)	Round Cable Size	Max Length
S Type	ABS Plastic or Strengthened Nylon& 201/304 Steel	1.3kN	2*5mm	136.4mm
Weight	Size		Application	Color
25.8g	180x27x22mm		Drop cable	Any
