FIBER OPTIC DROP CABLE CLAMP
S-HOOK FTTH Cable Tension Clamp
Ø DESCRIPTION
S hook type cable clamp is tension clamp for FTTH drop cable. The drop wire clamp is to connect a triplex overhead entrance cable to a devices or buildings.Widely used both indoor installation and outdoor installation.Provided with a serrated shim to increase hold on drop wire. Used to support one and two pair telephone drop wire at span clamps,drive hooks, and various drop attachments. The s hook drop wire clamps can withstand the rigors of all environmental conditions in the telecommunications outside plant. The placement of slots and a hole in the clamp’s inner wedges allow for proper cable slack adjustment, tensioning and assistance with re-entry.
The drop wire clamp is composed of a mandrel shaped body and an opened bail that can be locked into the clamp body. It is made out of UV resistant nylon and steel.
CTUO offer this tension clamp with appropriate fish type, S-type and other FTTH clamps.
All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature-cycling test.
Key words: Tension clamp for drop wire, Tension clamps for FTTH drop cable, S-hook cable clamp
Ø ORDERING INFORMATION
Code | Outer material | Max Pull Force(kNS) | Length |
S hook | PA66 Nylon and ss 201 | 200kNS | 150mm |
Weight | Thickness of steel hook | Thickness of nylon | |
40.1g | 4mm | 7.2mm | |
Ø FEATURES
• Unique hook and wedge lock design.
• Easy cable slack adjustment to apply proper tension.
• Can be re-entered and reused.
• Weather and corrosion resistant Nylon PA66 body.
• SS201 hook for maximum corrosion resistance.
• No special tools required for installation.
• No loose parts - wedge is tethered to clamp body.

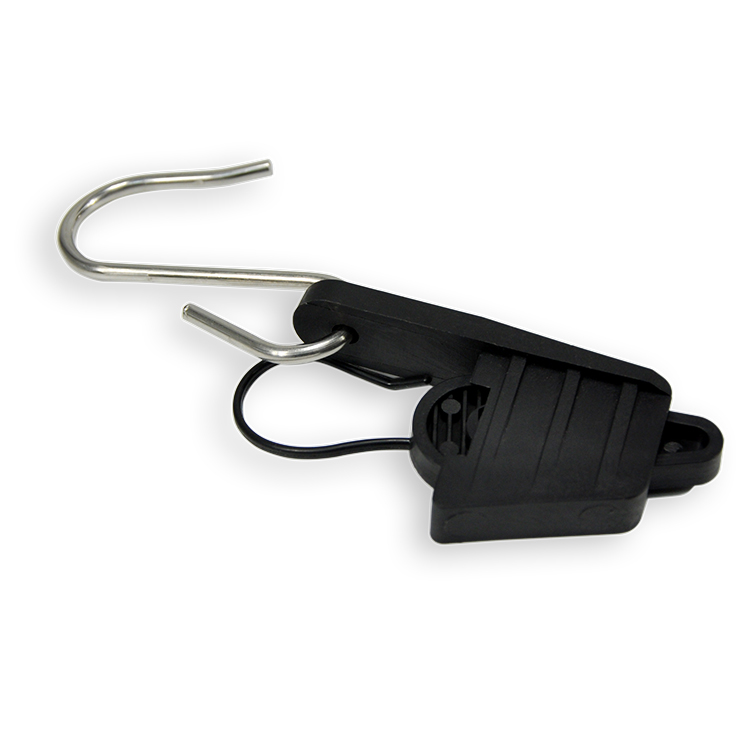

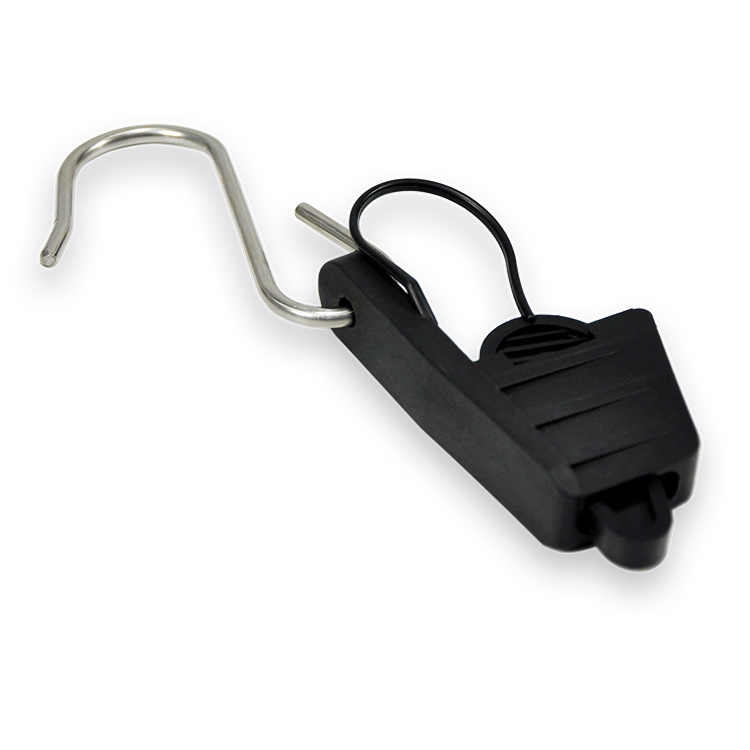

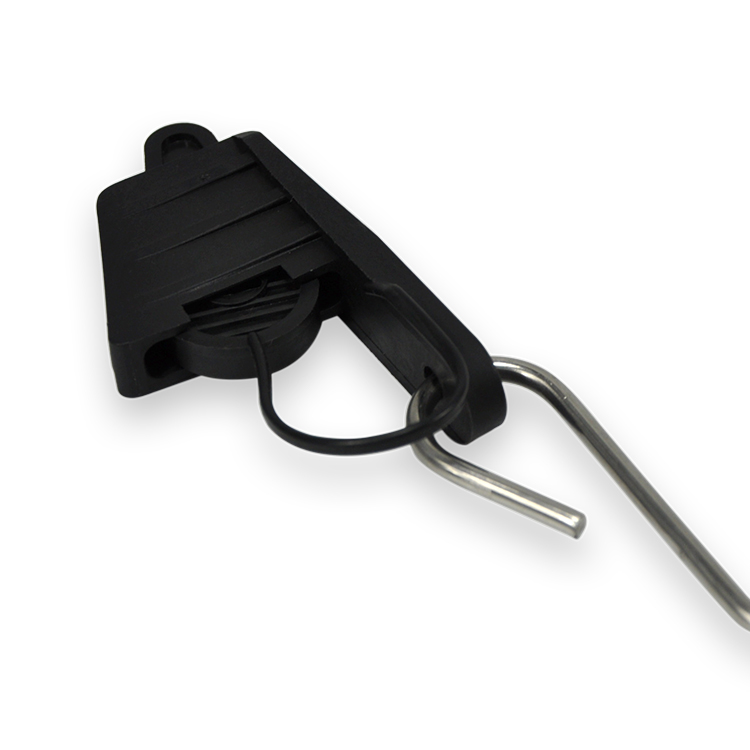

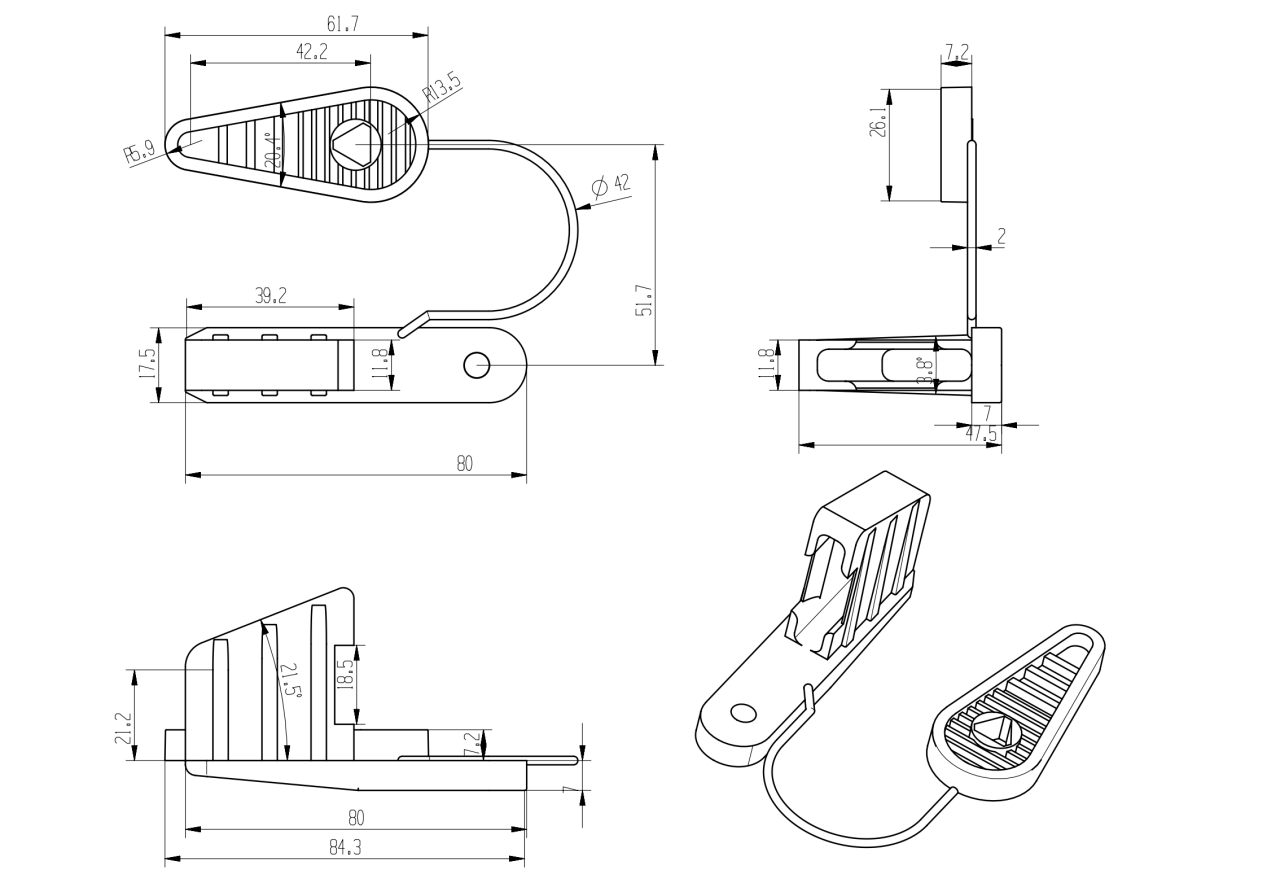

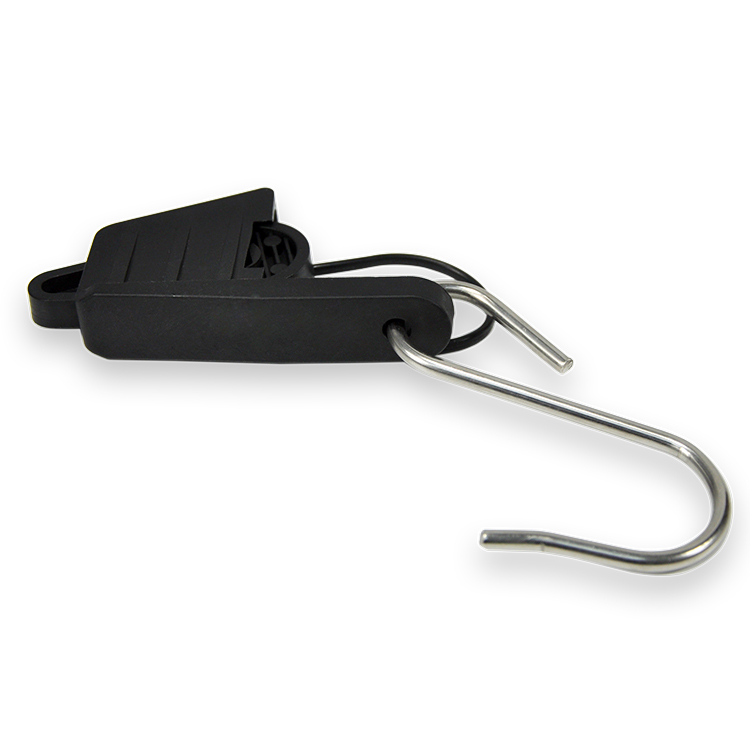

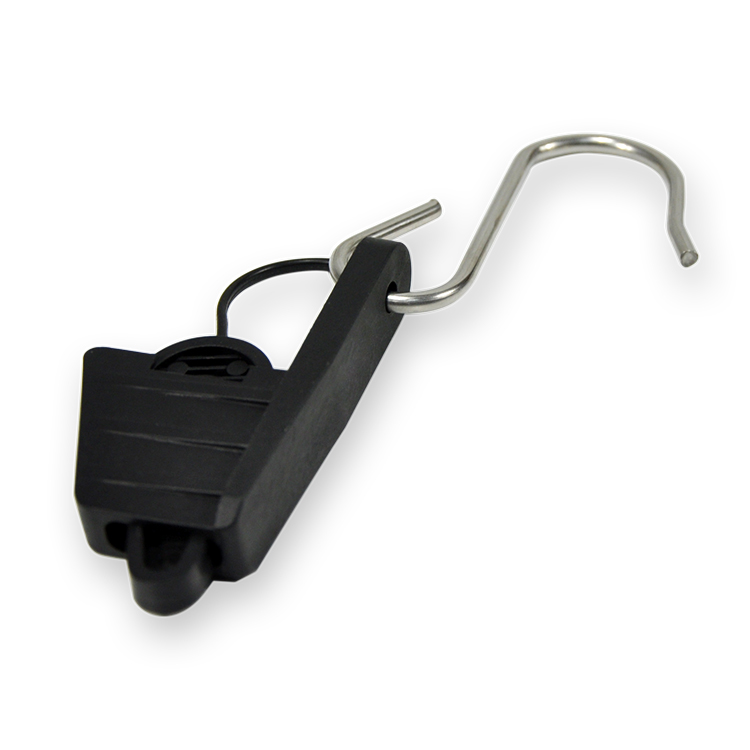

Ø DETAILED IMAGES
