FTTH Cable Tension Clamp ODWAY-HY1

Ø DESCRIPTION

ODWAY series are tension clamps for FTTH drop cable. The drop wire clamp ODWAC is composed of a body, a wedge and a shim. A solid wire bail is crimped to the wedge. All parts are made out of (strengthened) nylon.

TUOLIMA offer this tension clamp with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps.

All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature-cycling test.



Key words: Tension clamp for drop wire, ODWAC-HY1.



Ø ORDERING INFORMATION

Code

Length

Outer Material

Thickness of outer sheath

Tensile Strength

ODWAY HY1

220mm

Strengthened Nylon

2.85mm

600N

Cable Diameter

Internal Material

Insert Material

Thickness of insert

Weight

3-7mm

Nylon

Nylon

2.6mm

38g

Ø FEATURES

  Place the cable in the clamp body

Place the shim in the clamp body over the cable, the grip side in contact with the cable

Insert the wedge through the front of the body and pull to secure the cable

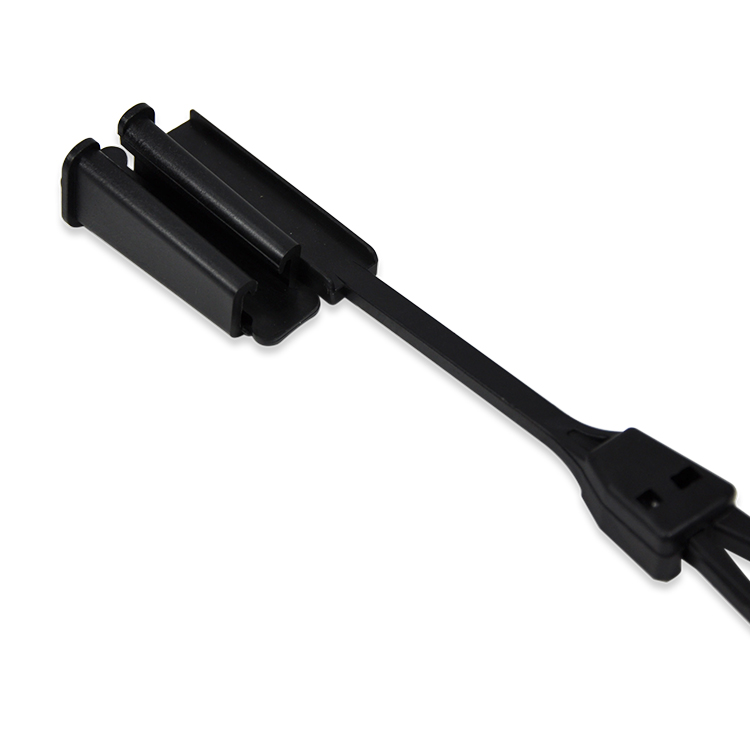

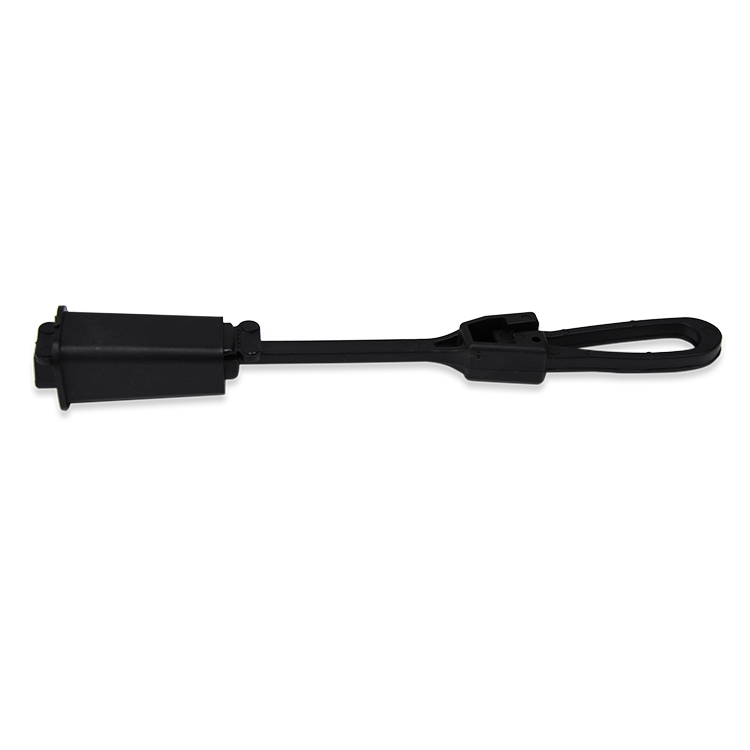

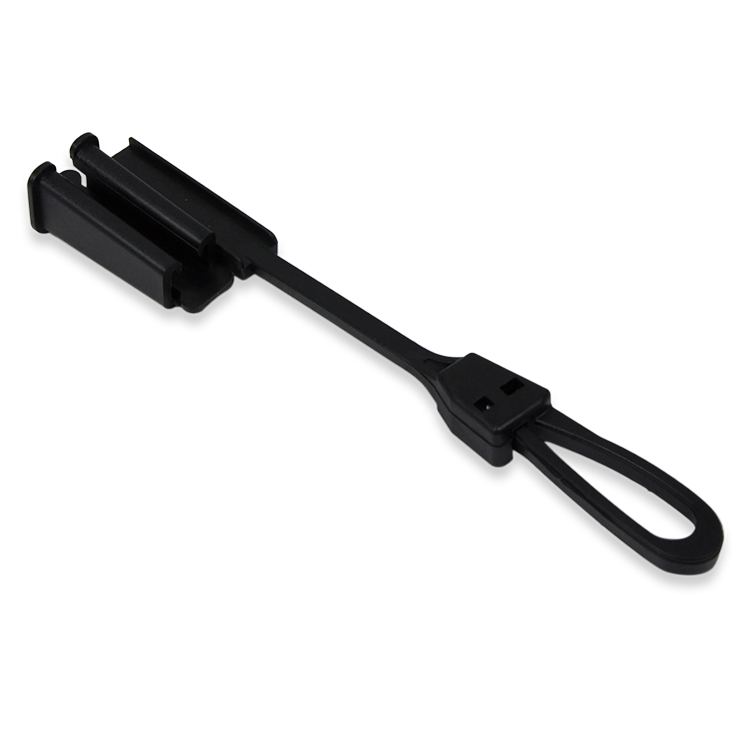

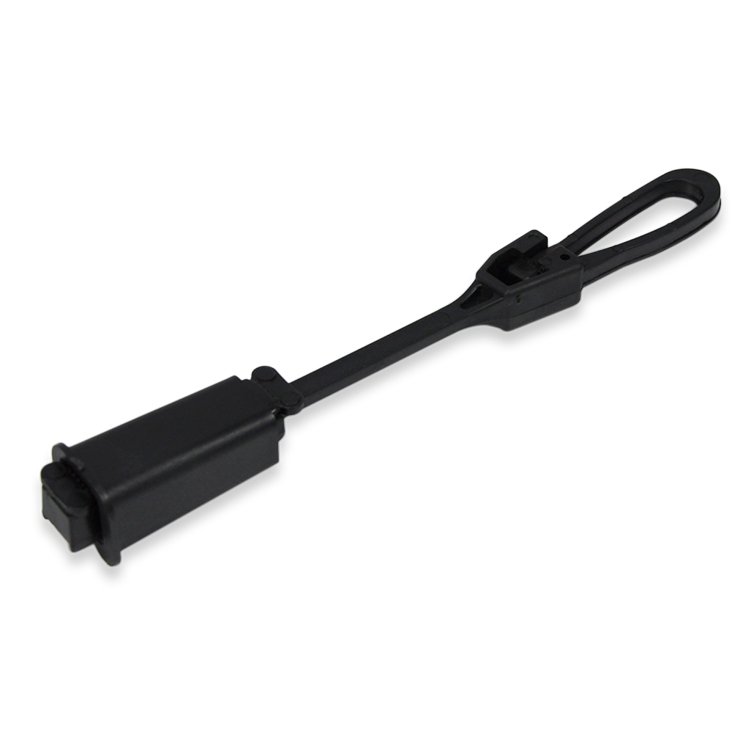

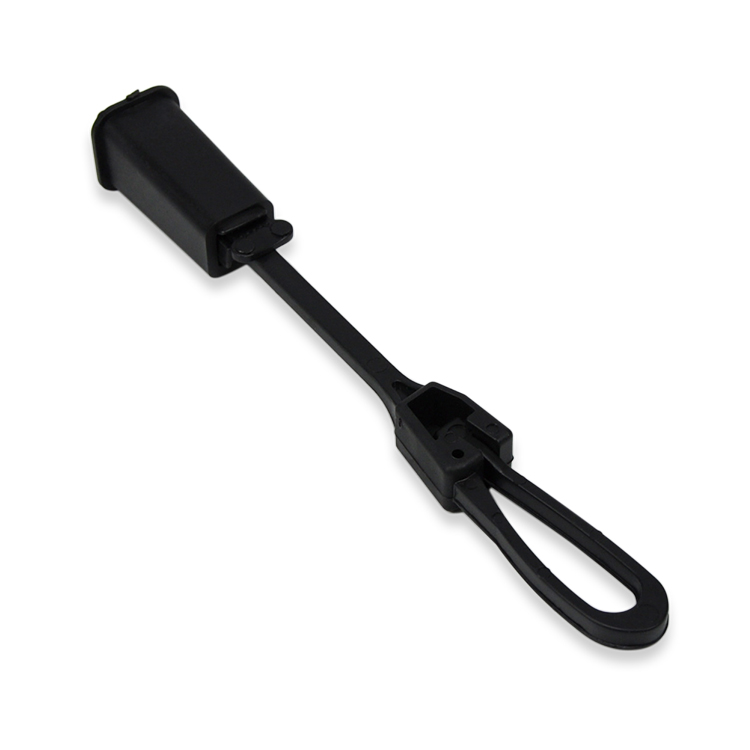

Ø DETAILED IMAGAS
