FIBER OPTIC DROP CABLE CLAMP
FTTH Cable Tension Clamp ODWAY-HY
Ø DESCRIPTION
ODWAY series are tension clamps for FTTH drop cable.
TUOLIMA offer this tension clamp with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps. The drop wire clamp ODWAC is composed of a body, a wedge and a shim. A solid wire bail is crimped to the wedge. All parts are made out of stainless steel and (strengthened) nylon.
All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature-cycling test.
Key words: Tension clamp for drop wire, Tension clamps for FTTH drop cable ODWAY cable clamp.
Ø ORDERING INFORMATION
Code | Length | Outer Material | Thickness of outer sheath | Tensile Strength | ||
ODWAY HY1 | 220mm | Strengthened Nylon | 2.85mm | 600N | ||
Cable Diameter | Internal Material | Insert Material | Thickness of insert | Weight | ||
3-7mm | Nylon | Nylon | 2.6mm | 33.2g | ||
Ø FEATURES
• Place the cable in the clamp body
• Place the shim in the clamp body over the cable, the grip side in contact with the cable
• Insert the wedge through the front of the body and pull to secure the cable

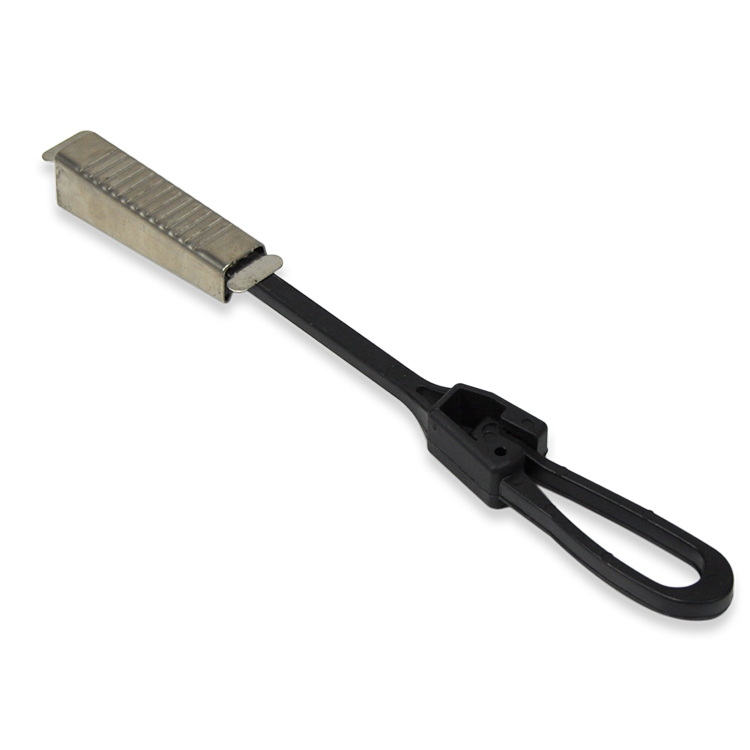

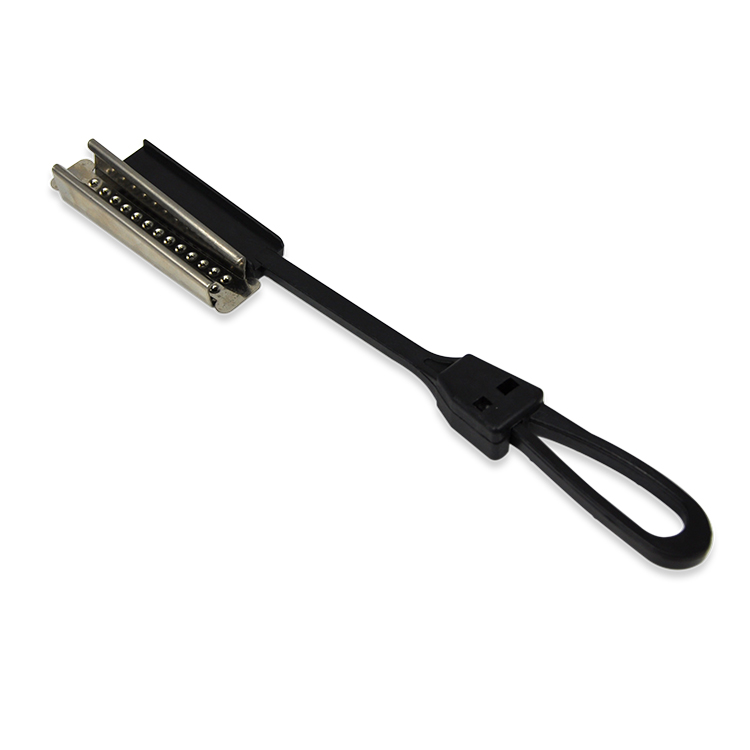

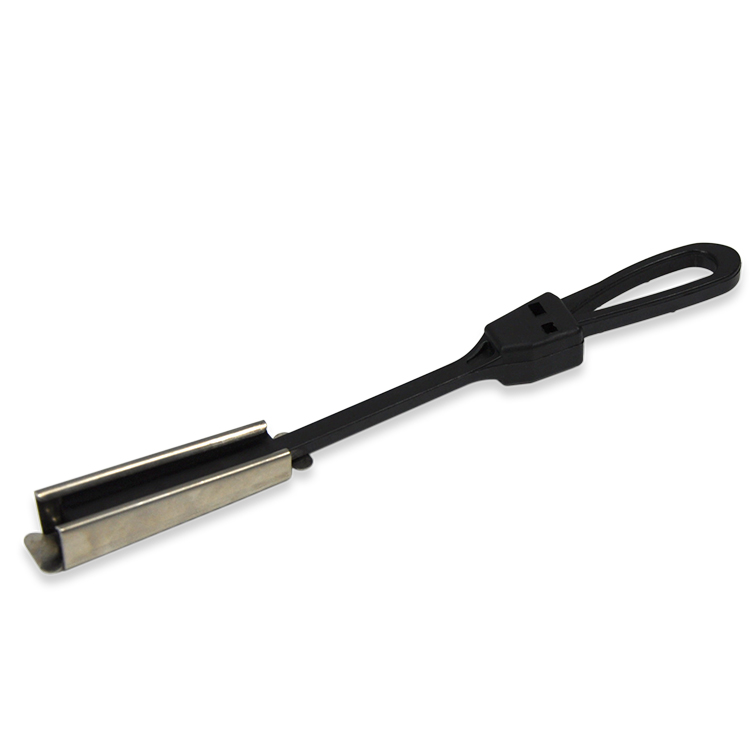

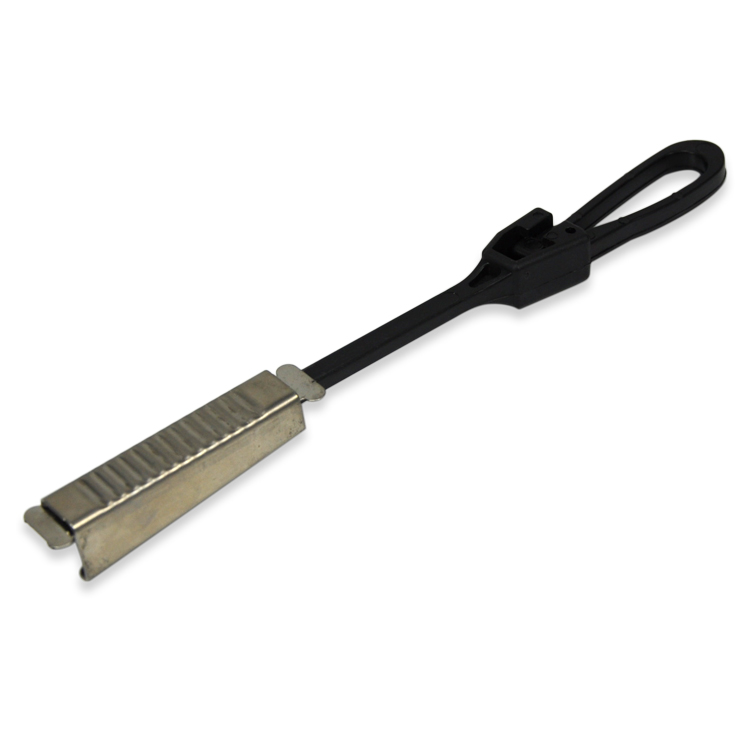

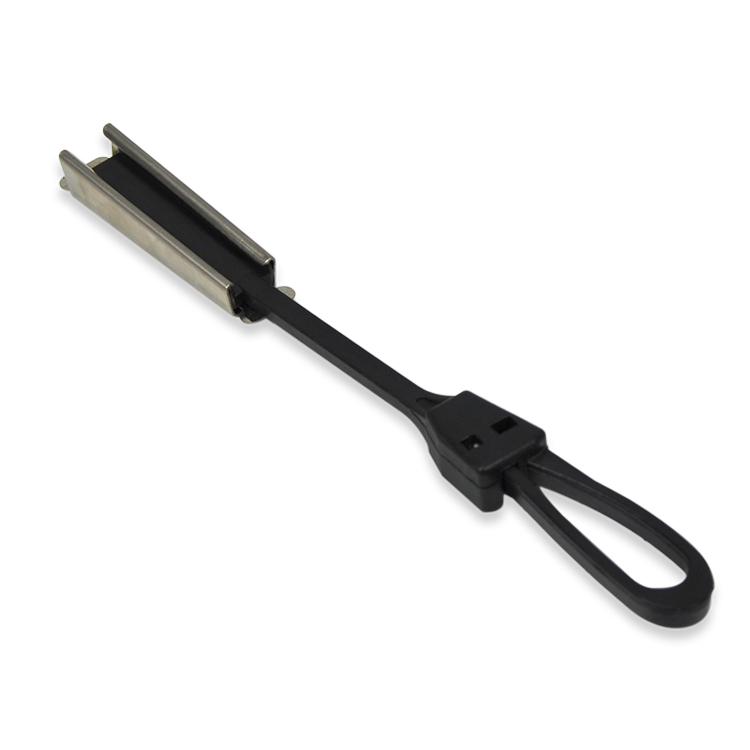

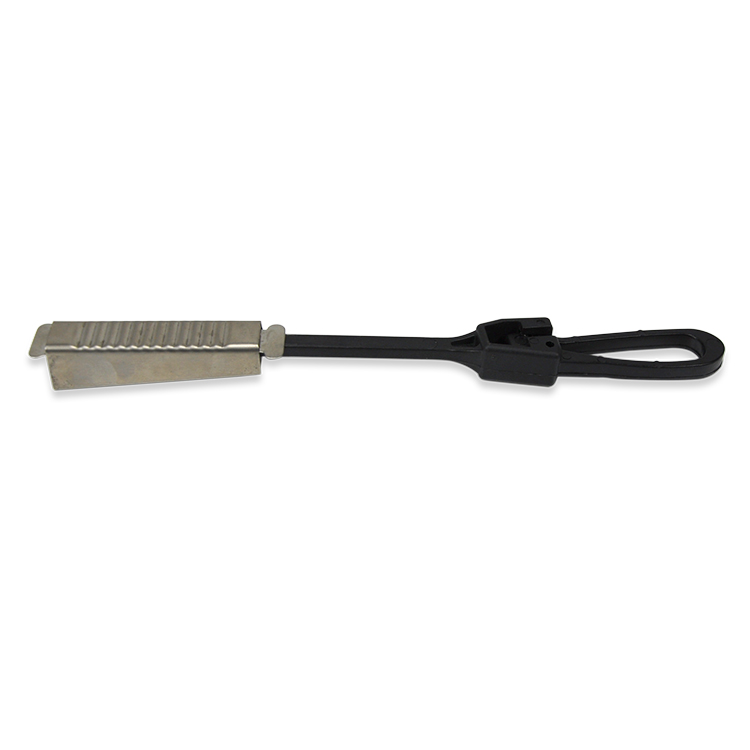

Ø DETAILED IMAGAS
