Fiber Optic Outdoor Cable

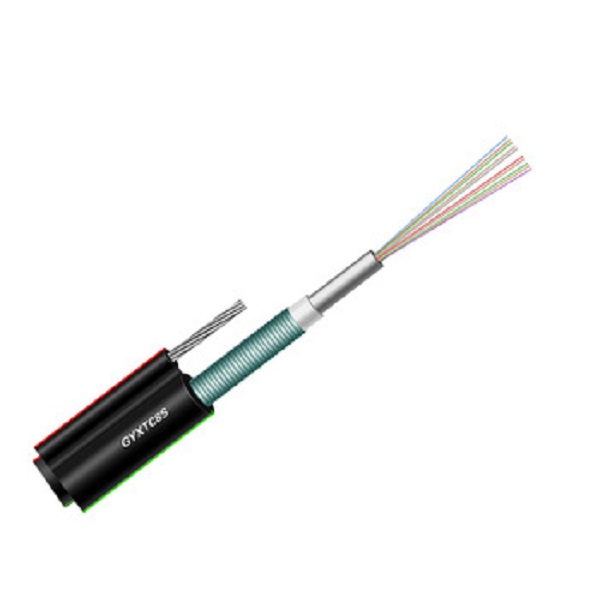

GYTC8S / GYXTC8S Fiber Optic Cable

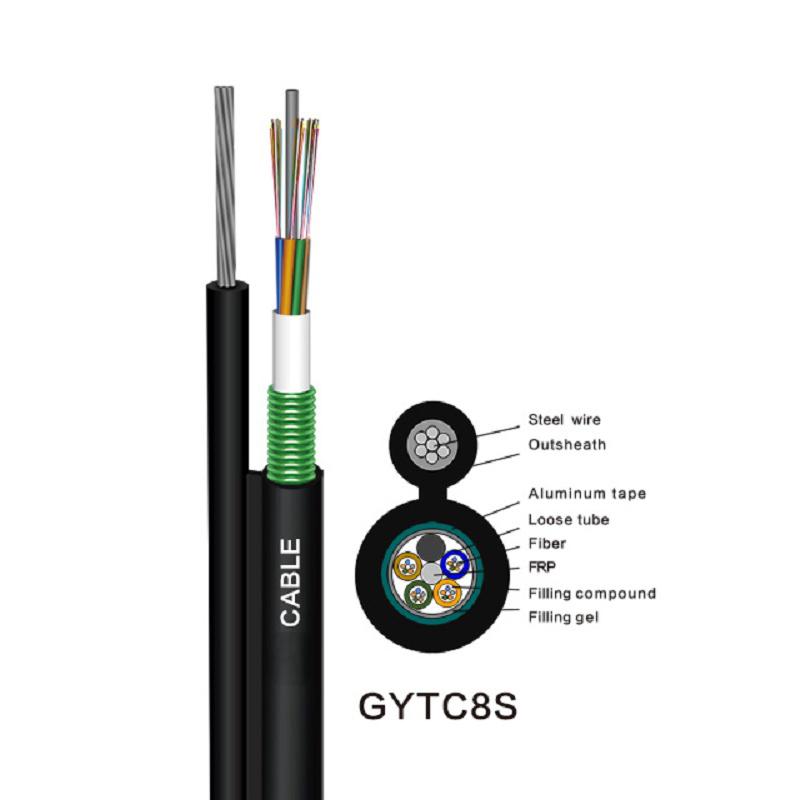

The cross-section of GYTC8S/GYXTC8S Cable's is in the shape of "8". The steel strand is suspended, and the double-sided plastic-coated corrugated steel belt forms excellent flattening resistance. With self-supporting overhead steel strand, much installation time and cost is saved.
Features

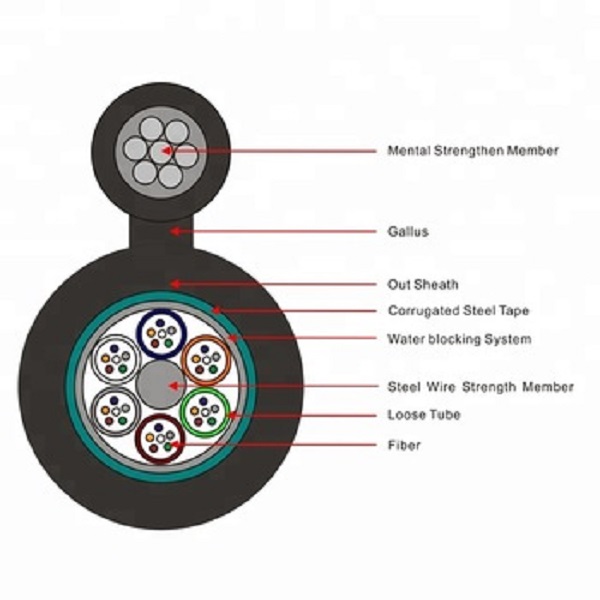

The structure of the standard figure-eight self-supporting stranded optical cable is that multimode or single mode fiber optic cables are sheathed in a loose tube made of high modulus plastic, and the tube is filled with a water blocking compound. The center of the cable core is a metal reinforced core. For certain fiber optic cables, a layer of polyethylene needs to be squeezed outside the metal-reinforced core. The loose tube (and filler rope) is twisted around the central reinforced core to form a compact and Round cable core, the gap in the cable core is filled with water blocking filler. The cable core is longitudinally wrapped with steel-plastic composite tape, and placed in parallel with the steel strands while extruding a figure-eight sheath into a cable.
Advantages of GYTC8S / GYXTC8S Fiber Optic Cable
Use high-quality optical fiber to ensure that the optical cable has excellent transmission performance
Accurately control the excess length of the outdoor fiber optic cable to ensure that the optical cable has excellent mechanical and high/low-temperature characteristics
Full-section water-blocking structure to ensure good water-blocking and moisture-proof performance
The loose tube is filled with special grease to protect the optical fiber critically
The longitudinally clad steel tape strengthens the resistance to lateral pressure of the optical cable
Packaging
Packing material: Non-returnable wooden drum.
Both ends of cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture.
Cable printing: The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
Cable type and number of optical fiber
Manufacturer name
Month and Year of Manufacture
Cable length
Drum marking: Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with following:
Manufacture name and logo
Cable length
Cable type and number of fibers
Roll way
Gross and net weight
