Fiber Optic Outdoor Cable
GYFXBY Flat Fiber Optic Cable

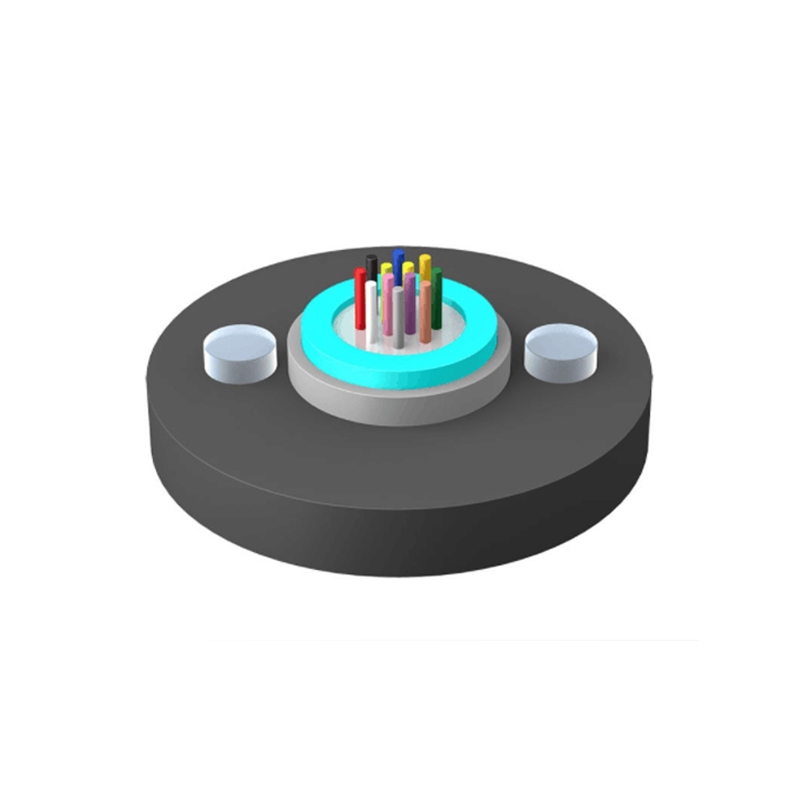

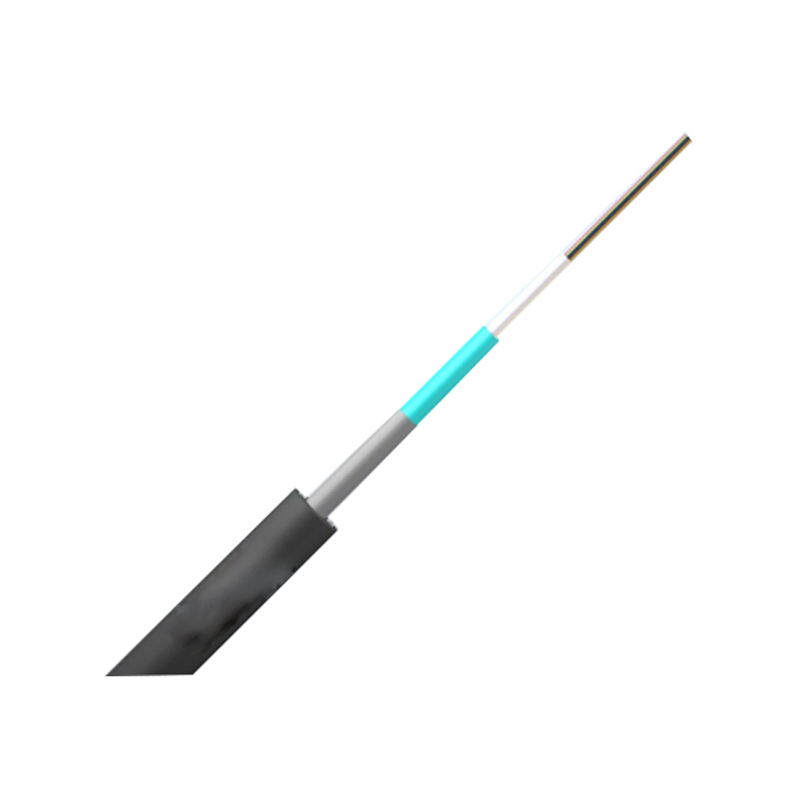

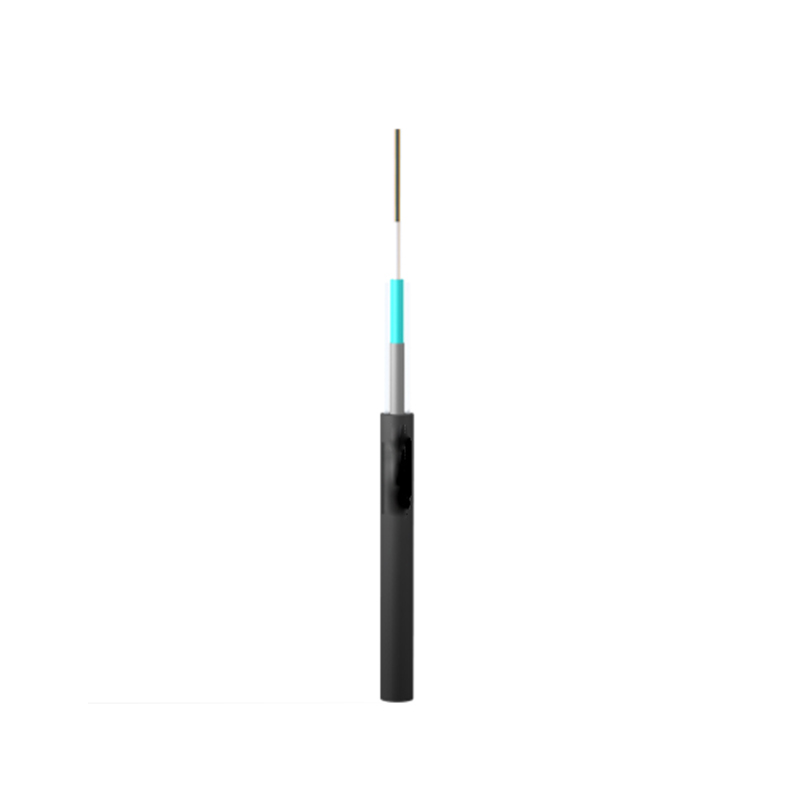

The structure of flat fiber optic cable is to sheath single-mode or multi-mode optical fiber into a loose tube made of high modulus plastic, and the tube is filled with water blocking compound. The loose tube is covered with double-sided plastic coated (wrinkle) copper tape longitudinally.
Advantages of GYFXBY Flat Fiber Optic Cable
The water-blocking tape is longitudinally wrapped to prevent the longitudinal water seepage of the optical cable and fiber optic cable clamps
Two parallel steel wires ensure the tensile strength of the optical cable
PE sheath has good resistance to ultraviolet radiation and environmental stress cracking resistance
Small diameter, light weight, easy to lay
Packaging
Packing material: Non-returnable wooden drum.
Both ends of cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture.
Cable printing: The sequential number of the outdoor armored fiber optic cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
Cable type and number of optical fiber
Manufacturer name
Month and Year of Manufacture
Cable length
Drum marking: Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with following:
Manufacture name and logo
Cable length
Cable type and number of fibers
Roll way
Gross and net weight
