Fiber Optic Air Blown Cable
GCYFXTY Air Blown Fiber Optic Cable

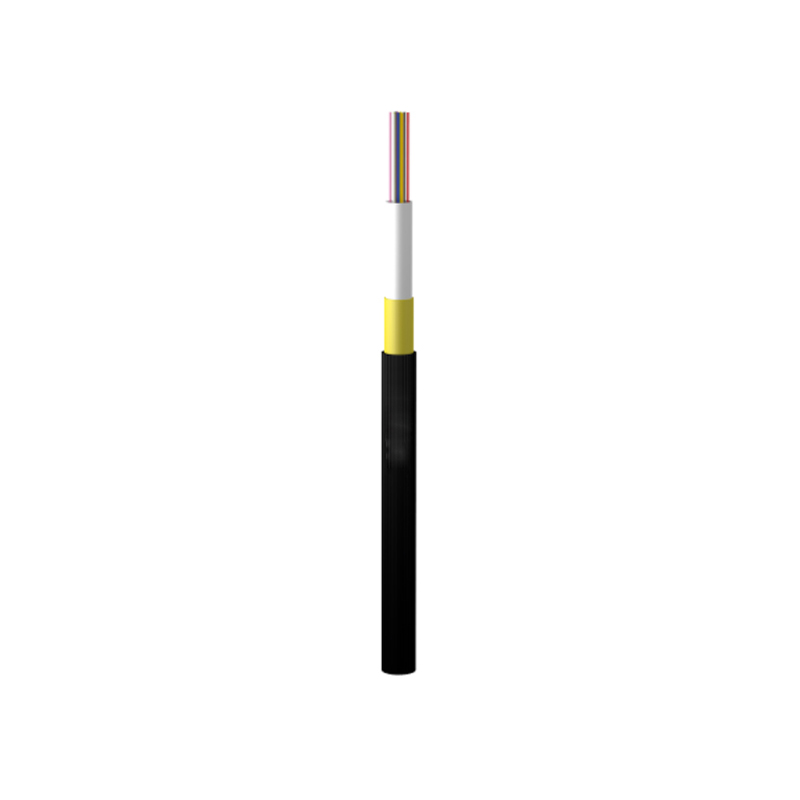

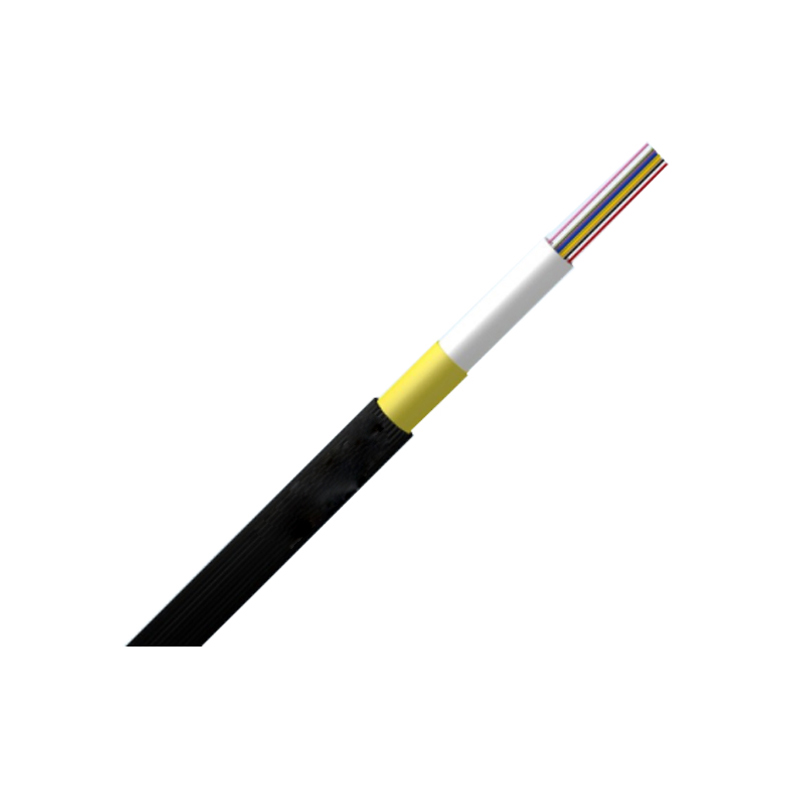

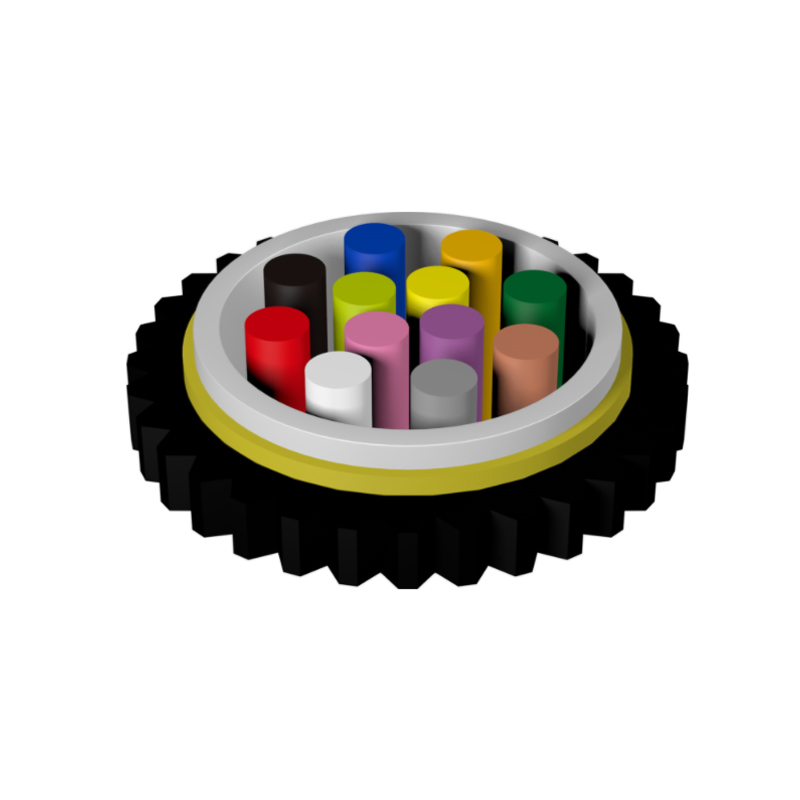

GCYFXTY Air Blown Cable is a loose tube made of a high modulus material with a 250µm single-mode or multi-mode fiber.
The tube is filled with a non-toxic and harmless waterproof compound, and the loose tube is twisted with a non-metallic reinforcing element. Then extruded black or colored high-density polyethylene (HDPE) sheath into cable.
Specification of GCYFXTY Air Blown Fiber Optic Cable
1. Min. bending radius for installation
Static: 10*cable diameter
Dynamic: 20*cable diameter
2. Application temperature range of fiber optic cable
Operation: -5℃~ +60℃
Installation: -5℃~ +50℃
Storage/transportation: -20℃~ +70℃
Packaging
Packing material: Non-returnable wooden drum.
Both ends of cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture.
Cable printing: The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
- Cable type and number of optical fiber
- Manufacturer name
- Month and Year of Manufacture
- Cable length
Drum marking: Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with following:
- Manufacture name and logo
- Cable length
- Cable type and number of fibers
- Roll way
- Gross and net weight
