GCYXTY Air Blown Fiber Optic Cable

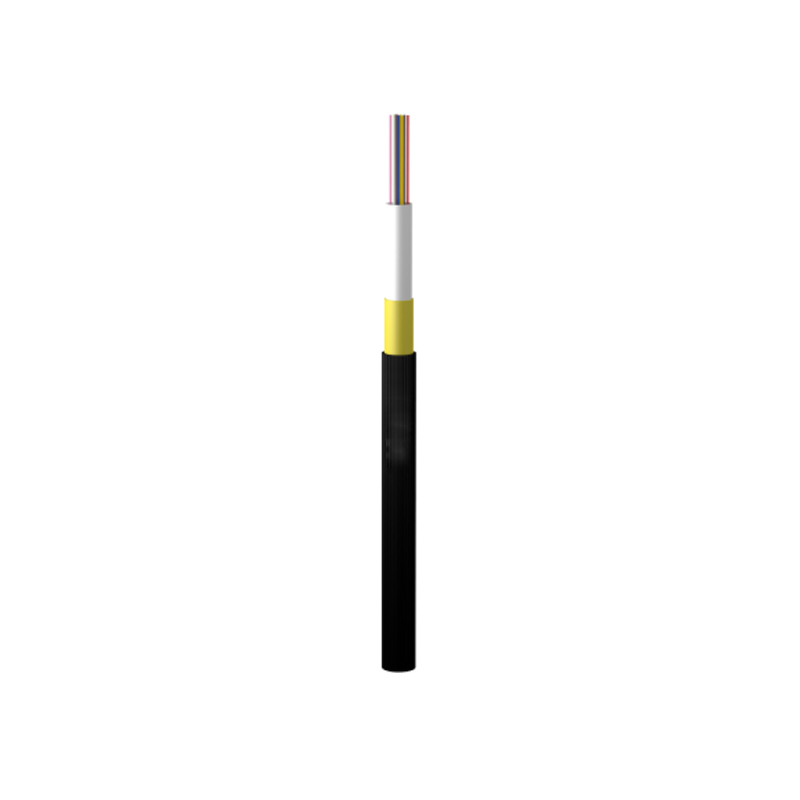

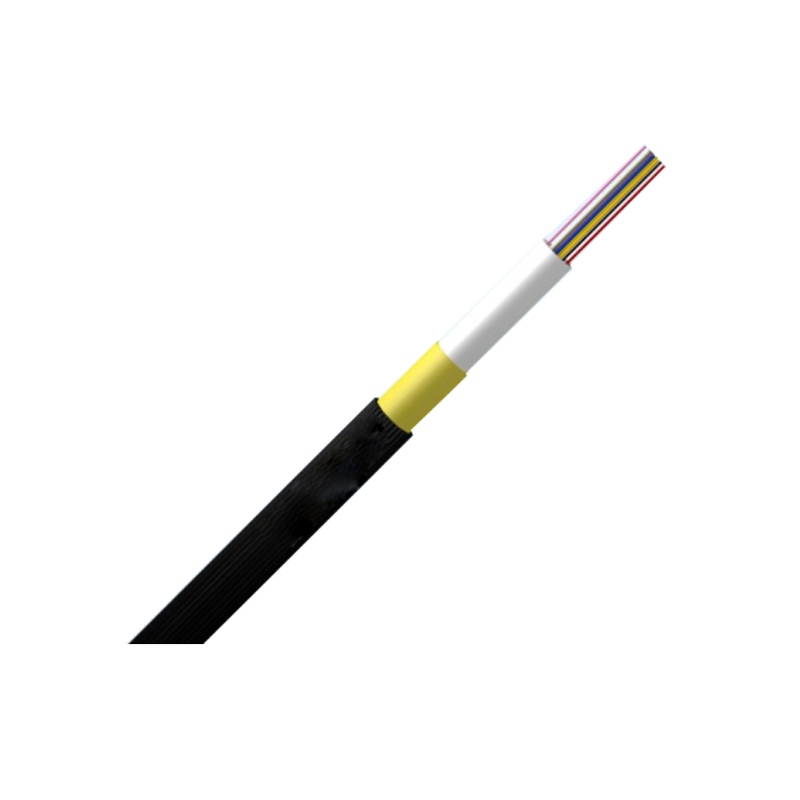

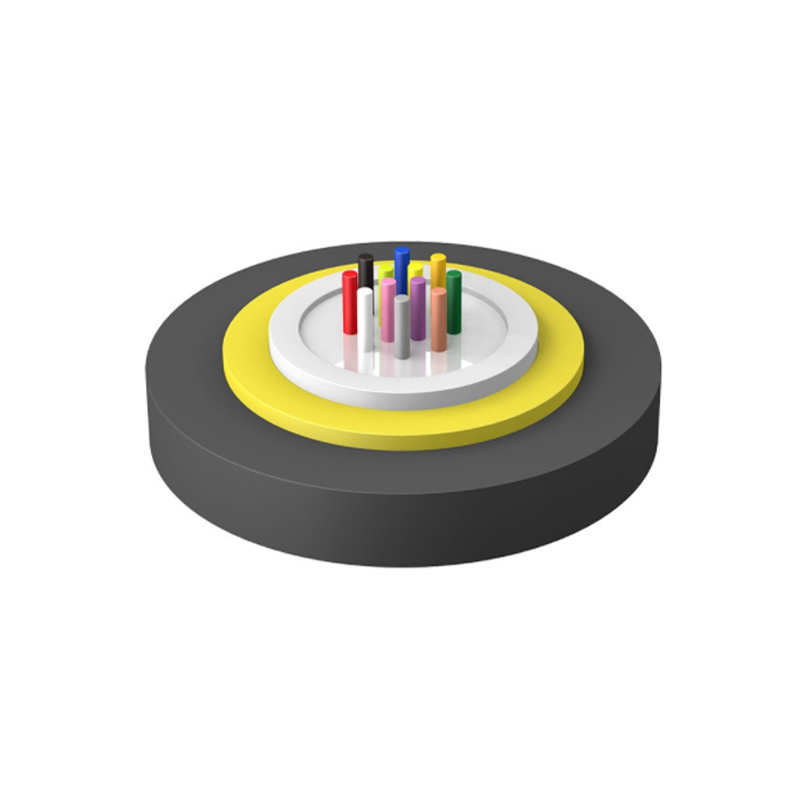

GCYXTY Air Blown Cable is a loose tube made of a high modulus material with a 250µm single-mode or multi-mode fiber.
The tube is filled with a non-toxic and harmless waterproof compound, and the loose tube is twisted with a non-metallic reinforcing element. Then extruded black or colored high-density polyethylene (HDPE) sheath into cable.

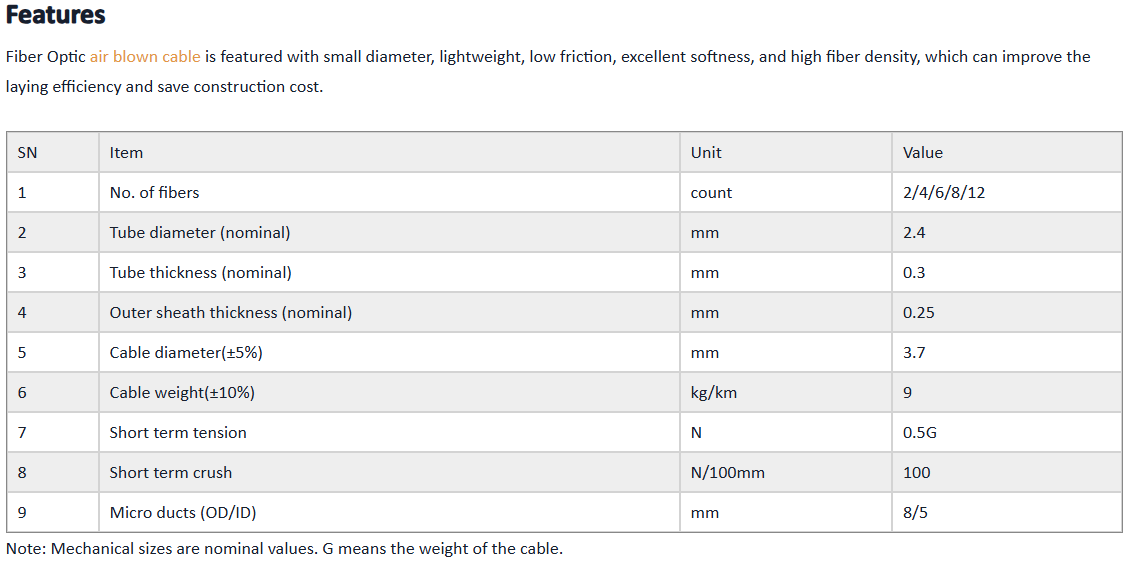

Specification of GCYXTY Air Blown Fiber Optic Cable
1. Min. bending radius for installation
Static: 10*cable diameter
Dynamic: 20*cable diameter
2. Application temperature range of bulk fiber optic cable
Operation: -5℃~ +60℃
Installation: -5℃~ +50℃
Storage/transportation: -20℃~ +70℃
Advantages of GCYXTY Air Blown Fiber Optic Cable
Simple and useful cable structure with high fiber density
Accurate fiber length balance ensures stable performance
No gel in cable core for water blocking
Sheath structure innovation to enhance blowing performance
Longer blowing distance
Fiber selection diversity: G.G652D, G.657A1, G.657A2
Packaging
Packing material: Non-returnable wooden drum.
Both ends of cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture.
Cable printing: The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
- Cable type and number of optical fiber
- Manufacturer name
- Month and Year of Manufacture
- Cable length
Drum marking: Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with following:
- Manufacture name and logo
- Cable length
- Cable type and number of fibers
- Roll way
- Gross and net weight
