CIERRE EN LÍNEA

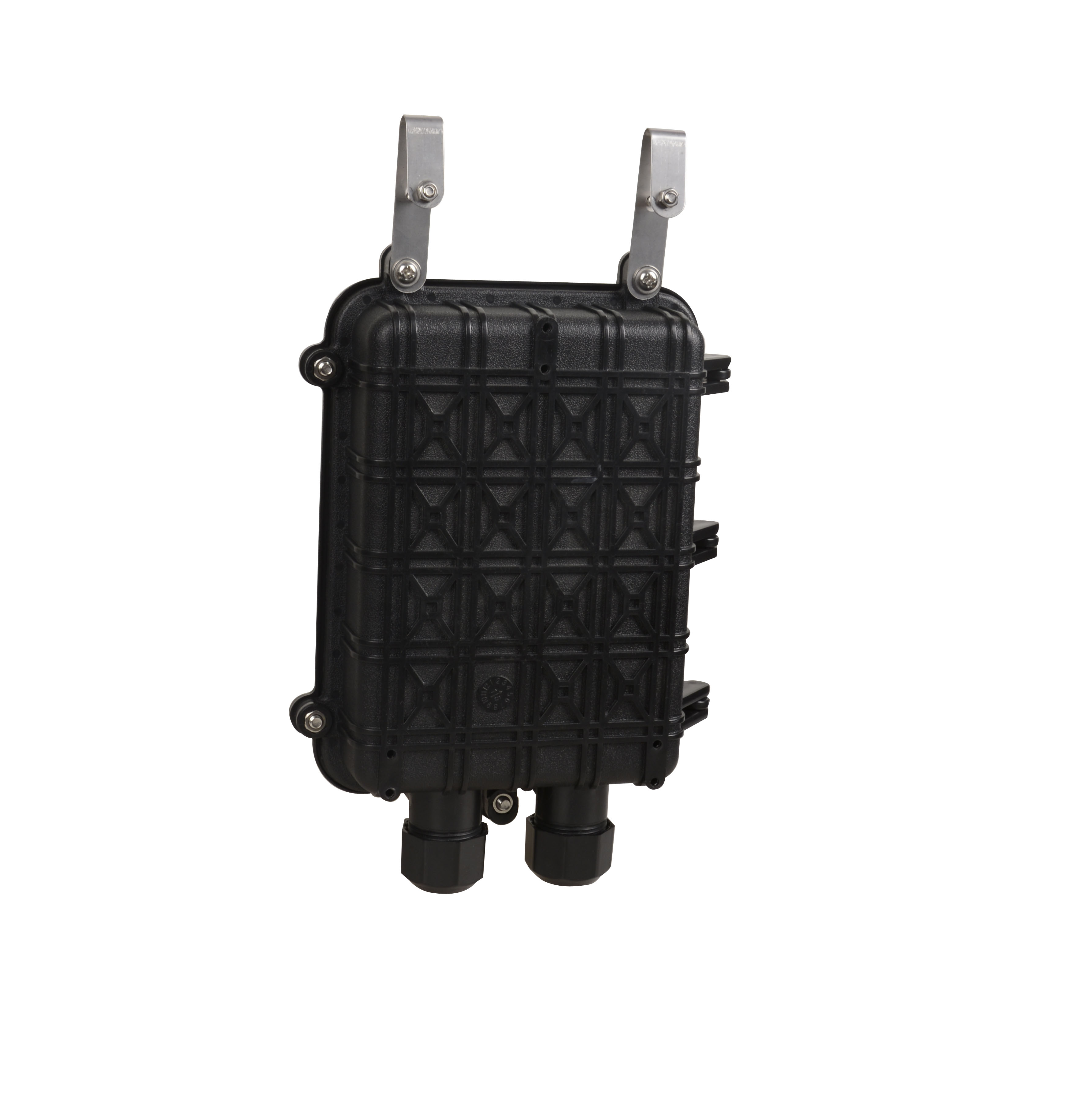

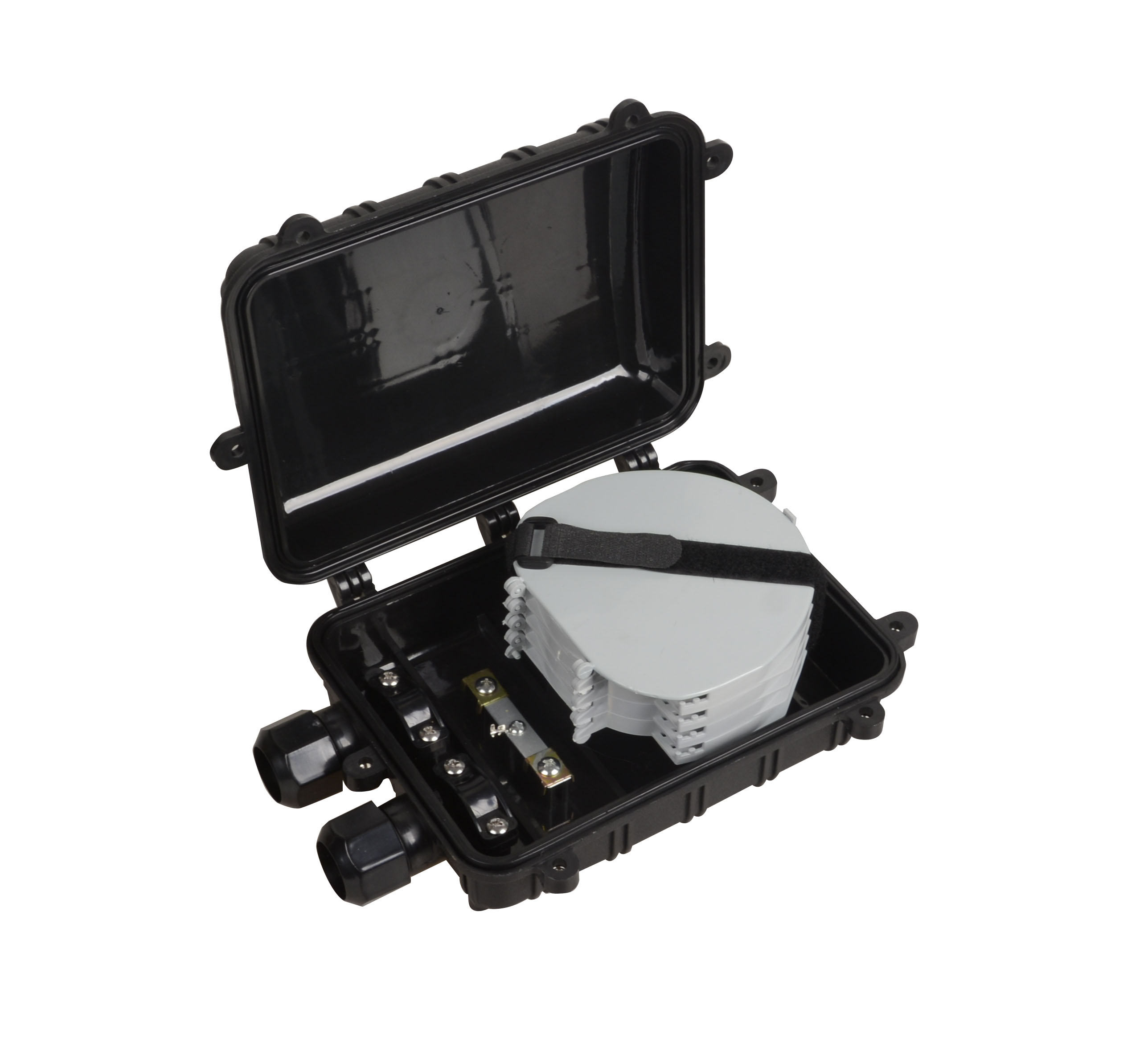

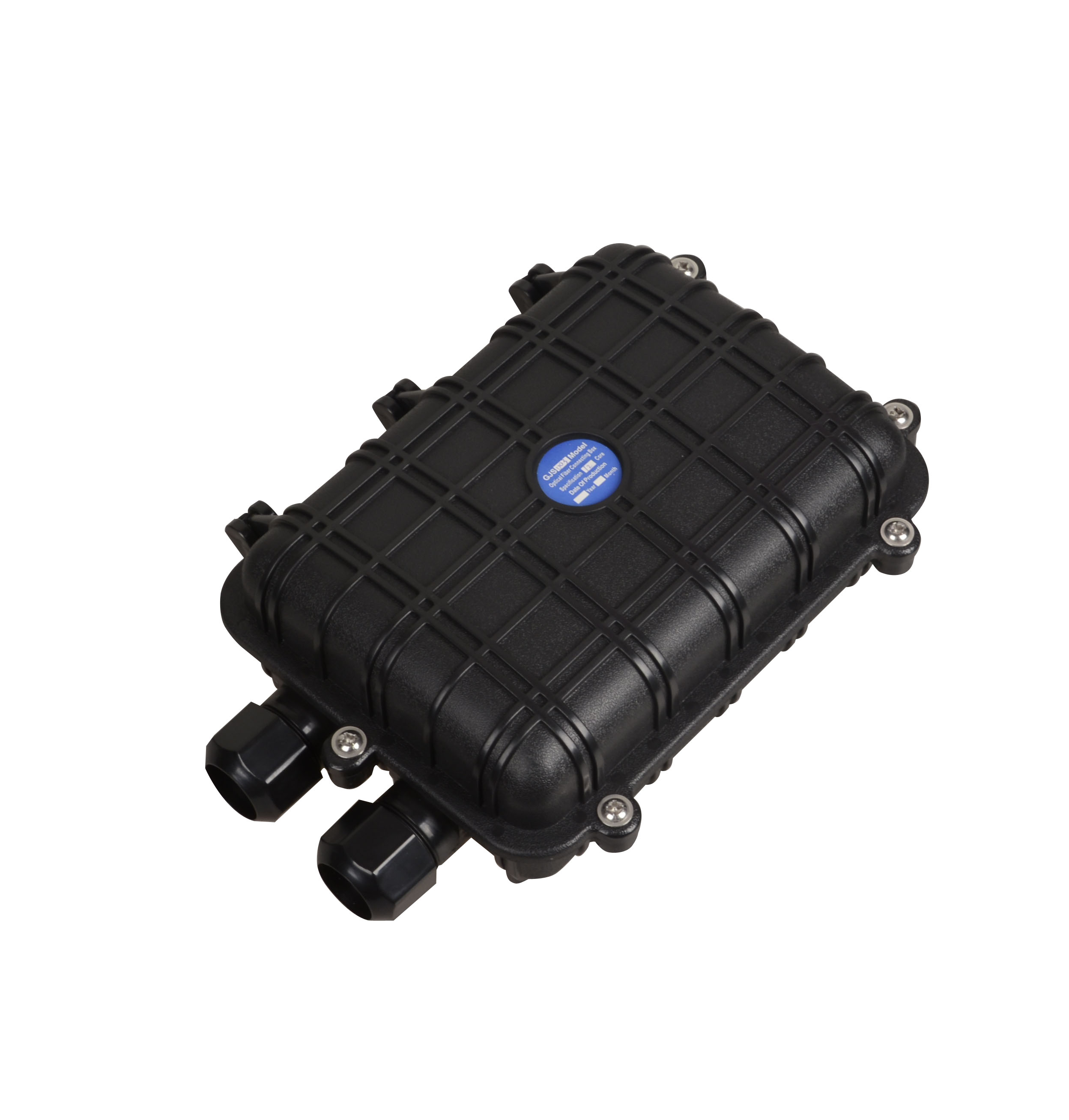

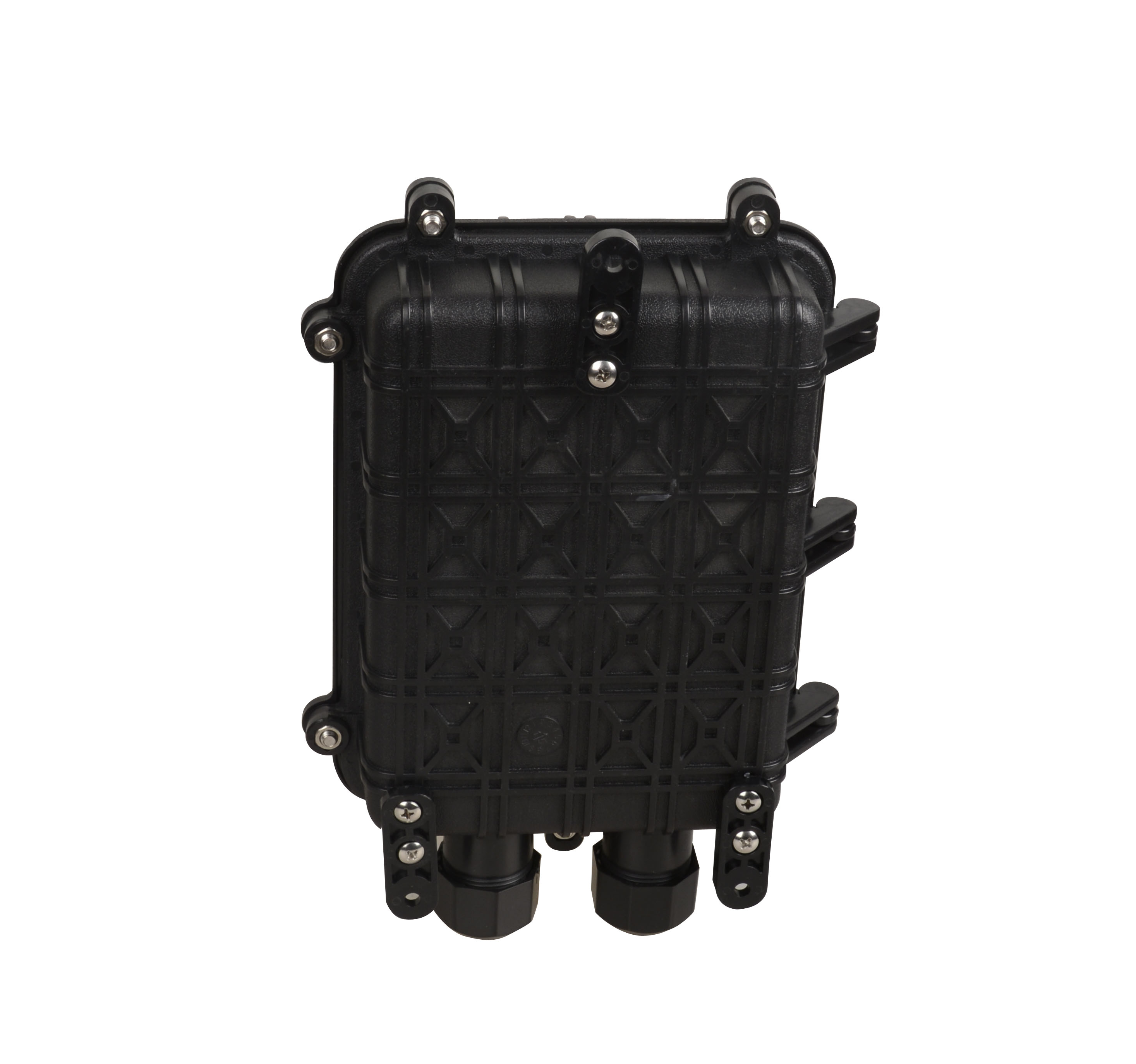

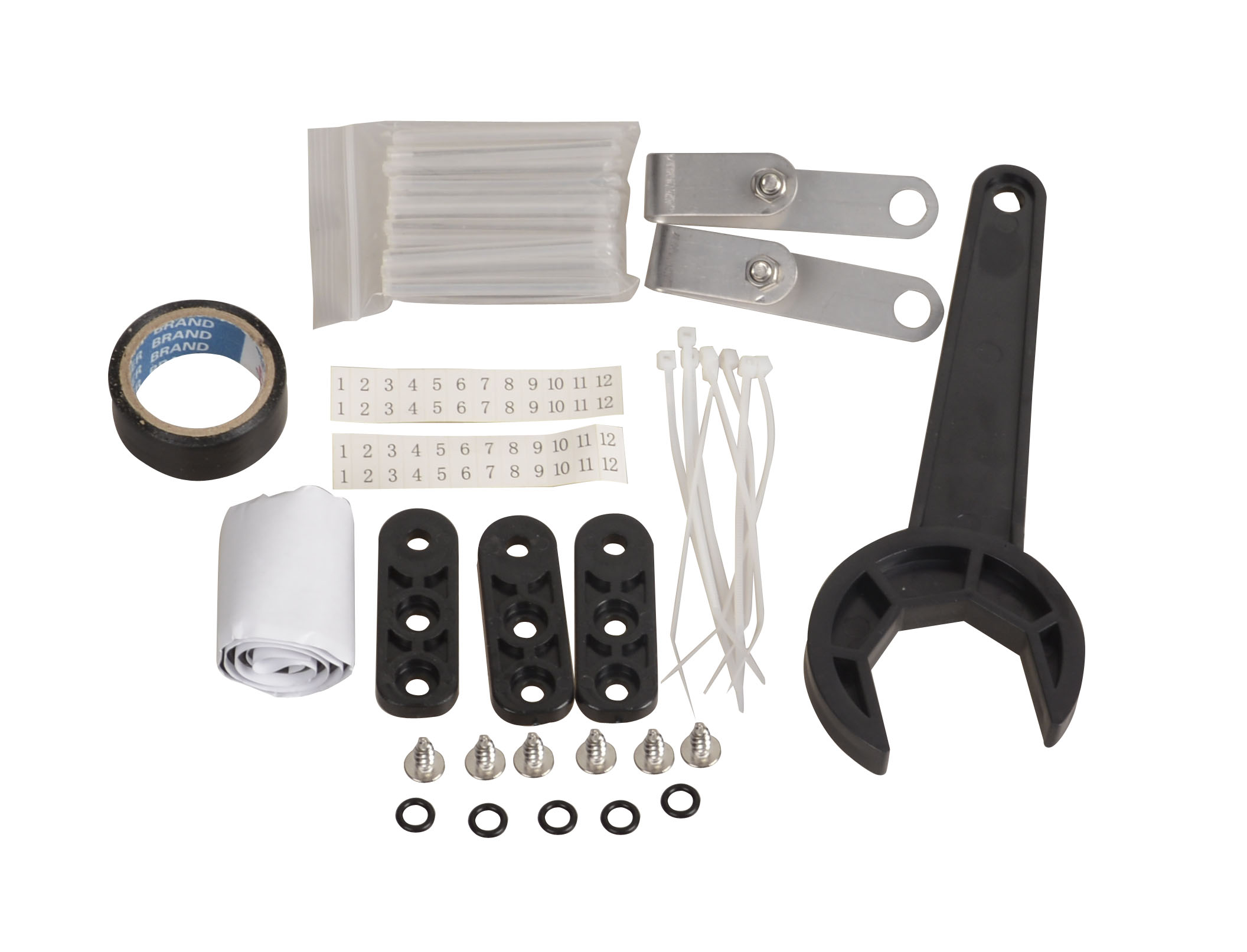

CT006 CIERRE DE EMPALME DE NÚCLEO 96 EN LÍNEA DE FIBRA ÓPTICA
v CARACTERÍSTICAS DEL PRODUCTO
● Sellado de juntas confiable
● Fácil instalación sin necesidad de herramientas especiales
● Reaccesible sin necesidad de kit de reingreso
● Alta resistencia a la compresión
v SOLICITUD
● Adecuado para fibras de cinta y sin cinta
● Aéreo
● Conducto de cables
● Entierro directo
● Montado en la pared
v CARACTERISTICAS
Characteristics | Value/Performance |
Cable Port | 2 |
Cable Diameter | 14mm/12mm |
Dimension | 280×200×95mm |
Weight | 1.2~1.5Kg |
Operating Temperature | -40 ~ +60°C |
Fiber Bend Radius | 30mm |

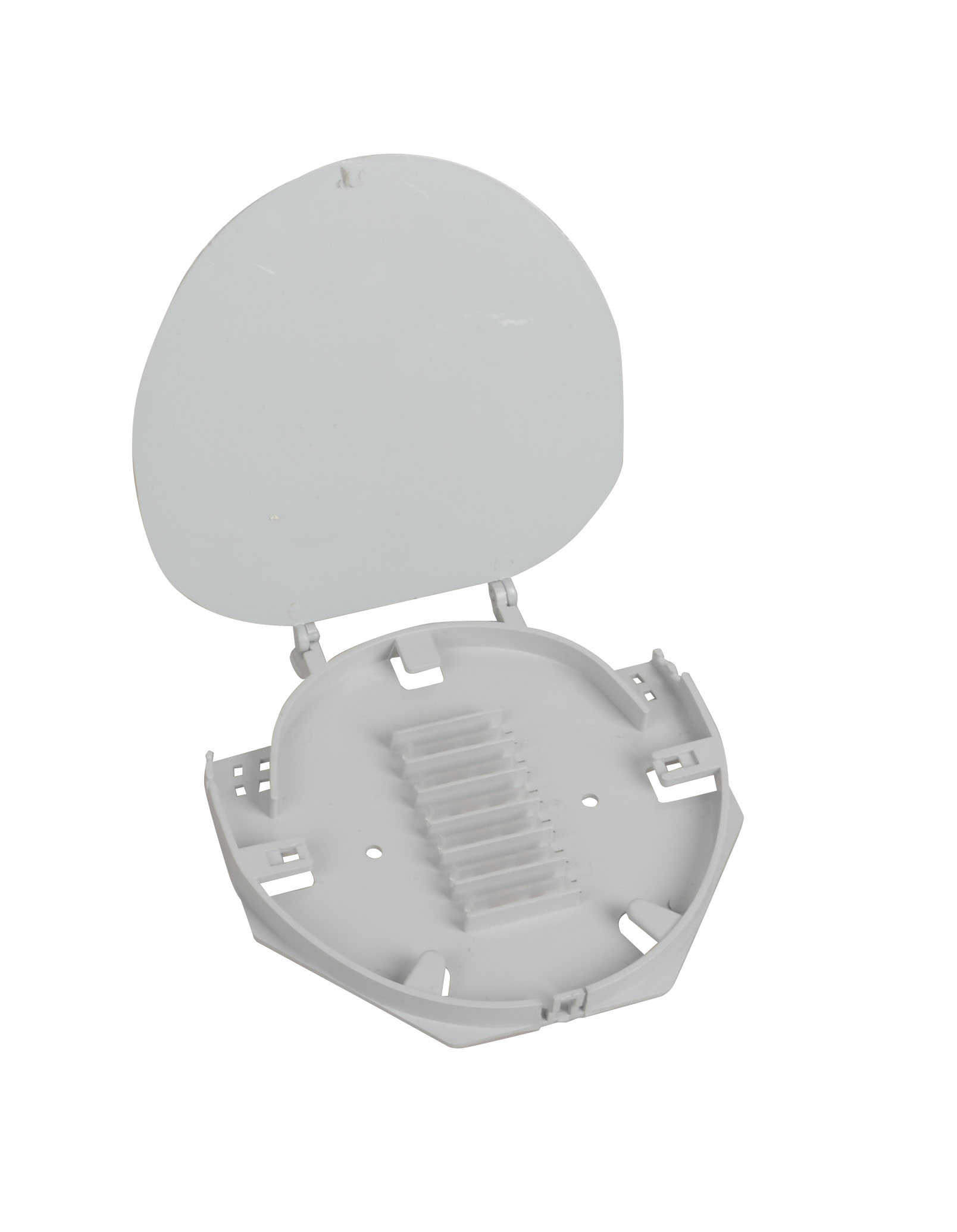

Splice Trays | 4 |
Max. Capacity | 48 |
Air Tightness | No air bubble seen | Put closure under water for 15min with closure's internal air pressure set at 100kPa±5kPa. |
Remains100kPa±5kPa | Measure the internal pressure 24 hours later | |
Air Tightness after re-installation | No air bubble seen and pressure remains unchanged | Do re-entry and re-installation 3 times and repeat above Air Tightness Tests. |
Axial Pulling | Pressure remains unchanged | Pulling force: 1000N Time: 1min Internal air pressure: 60kPa±5kPa |
Compression | Pressure remains unchanged | Applied pressure: 2000N/100mm Time: 1min Internal air pressure: 60kPa±5kPa |
Impact | Pressure remains unchanged | Impact energy: 16N.m No. of impacts: 3 Internal air pressure: 60±5kPa |
Bending | Pressure remains unchanged | Bending angle±45°(in two opposite directions) Tension: 150N No. of bending: 10 Internal air pressure: 60kPa±5kPa |
v PARÁMETRO DE PRUEBA
Twisting | Pressure remains unchanged | Twisting angle: ±90° Torque: 50N No. of twisting: 10 Internal air pressure: 60kPa±5kPa |
Temperature Cycling | Pressure drop ≤5kPa | Cycling range: -40 ~ +60°C Cycling time: 2hrs at -40°C, then 2hrs at +60°C No. of cycling: 3 Internal air pressure: 60kPa±5kPa |
Insulation | Resistance between metal parts:2.0x105MΩ | Soak closure into water in 1.5m-depth for 24hrs,and measure the insulation resistance after taking it out of water. |
Resistance between each metal part and ground:2.0x105MΩ | ||
High Voltage | No voltage break-downs and sparks | Soak closure into water in 1.5m-depth for 24hrs, then apply 15kV DC to the metal parts inside |
v Dibujo Estructural
