FIBER OPTIC FTTH FITTINGS
TK ADSS PREFORMED DEAD END
Ø DESCRIPTION
The TK preformed dead end clamp is widely used for the installation of bare conductors or overhead insulated conductors for transmission and distribution lines, the reliability and economic performance of the product is better than the bolt type and hydraulic type tension clamp that widely used in the current circuit.
Preformed dead ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The preformed dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.
Innovative structure and precision design, so that the preformed tension set has a reliable performance and it is usually made of aluminum clad steel, galvanized steel wire and other materials.
Key words: Preformed Dead End Clamp ADSS&OPGW Clamp Fittings Preformed ADSS Suspension Clamp
Ø ORDERING INFORMATION
Code | Material | Rated Tension Strength (RTS) | Product Type | Color | Surface |
TK | Galvanized steel wire | >10kN | Power accessories | Silver | Hot-dipped |
Ø ORDERING NOTE
l Optical cable diameter
l Related tensile strength of optical cables
l Length
l Connector configuration
l The preformed tension set material]
l Span

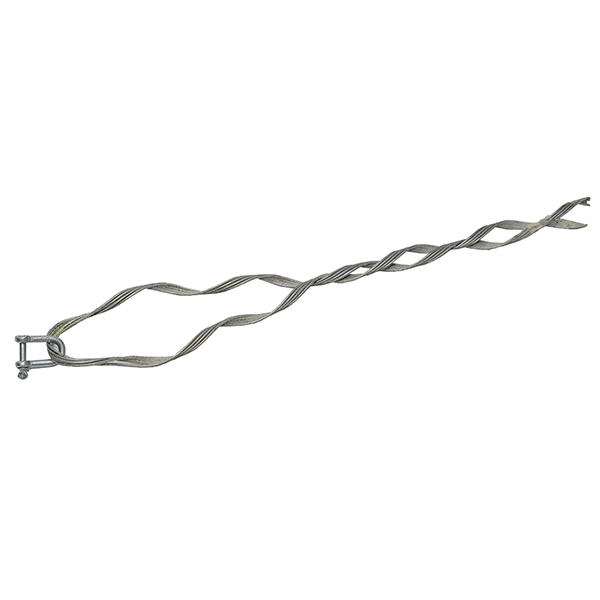

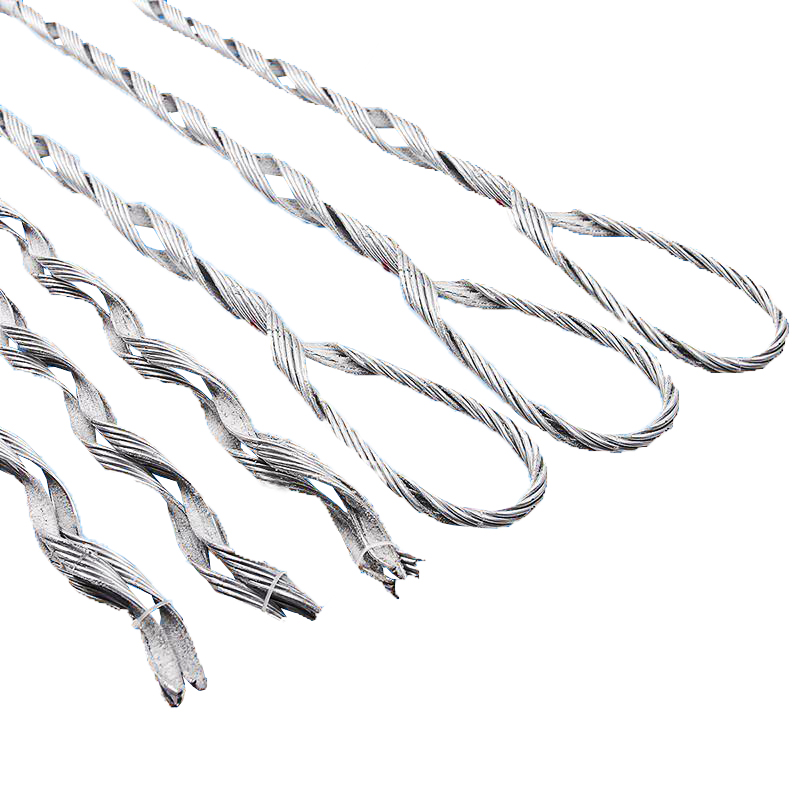

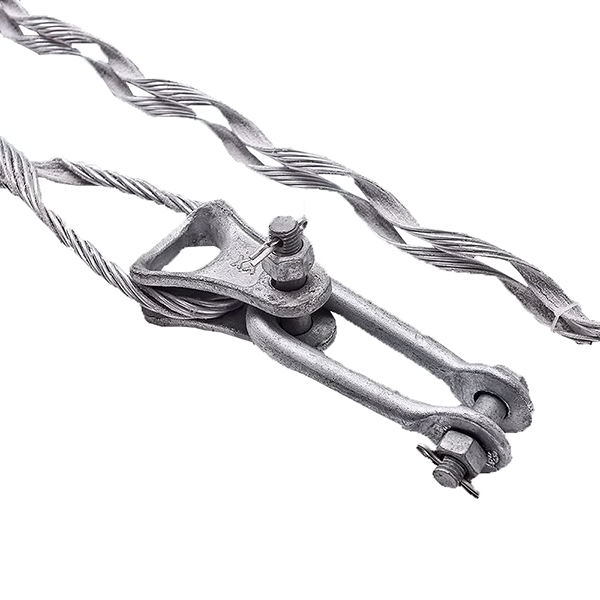

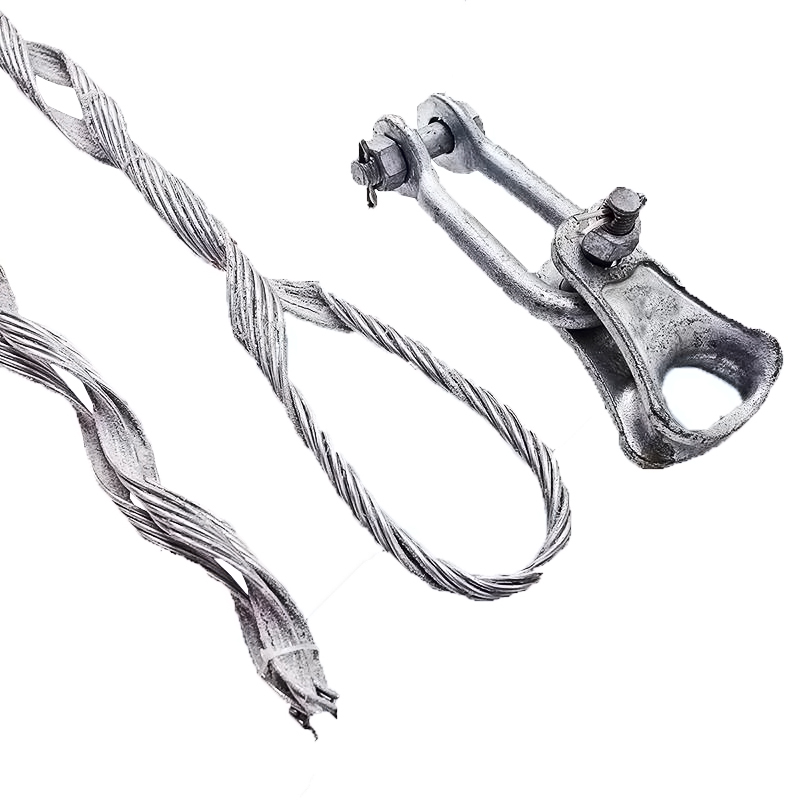

Ø DETAILED IMAGES
Ø FEATURES
1. Preformed Dead End Clamp is forged iron or malleable iron, hot galvanizing. Spring catch be bronze or stainless steel, the cotter pin is stainless steel.
2.Its usage is fixing the insulators to the overhead power transmission line or substation.
3.It can be with strain clamp, U bolt, plates and a various of fittings, etc.
4. It has high quality aluminum clad steel and galvanized steel which improves the mechanical properties and corrosion resistance of wire clips.
5. The clamp is easy to install and do not require any professional tools.
6. It has good installation quality and it is convenient for inspection.
Ø INSTALLATION
