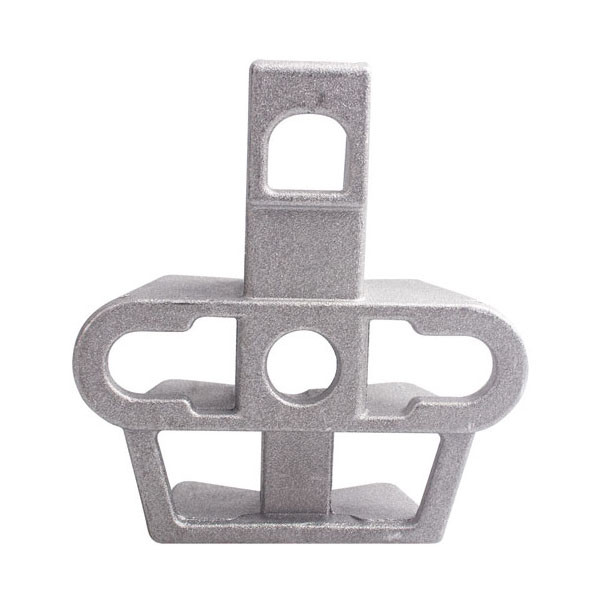

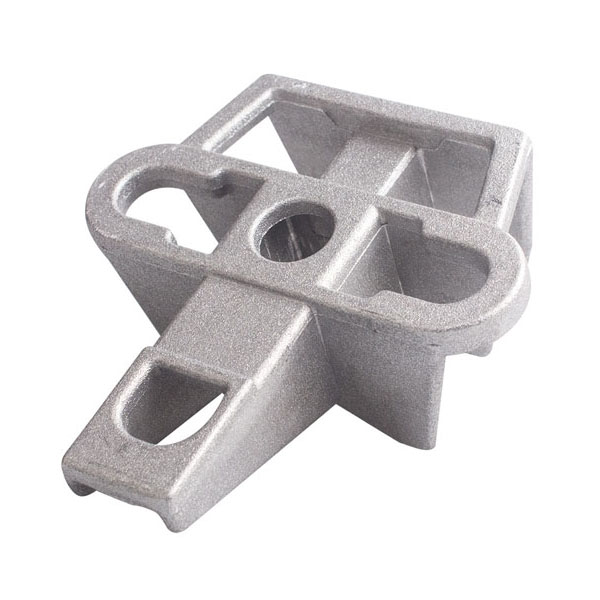

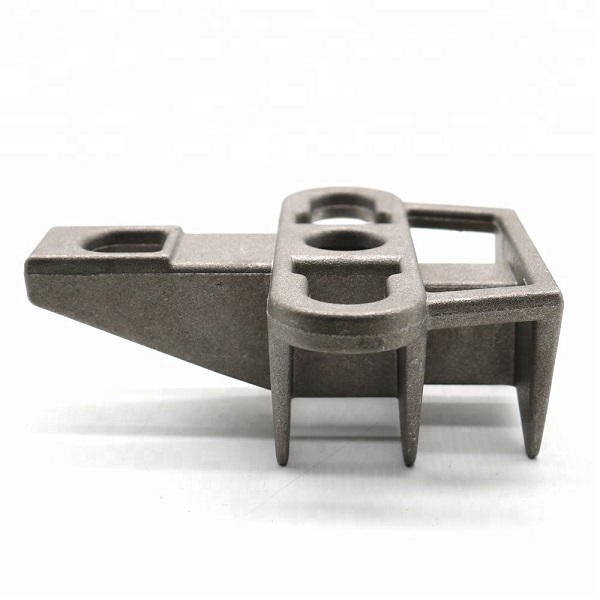

POLE BRACKET FOR FTTH UPB BRACKET


Ø DESCRIPTION

UPB for the installation of 1 to 3 parallel cables, of 5 drop wires, and of staysystem on all types of poles. Can serve as a plate for the installation of cross-arms 5/14 and 5/15. Installed on poles with 14 / 16 mm bolts or with two 20 mm bands.



Key words: Bracket, assemble with poles, use for hanging clamps



Ø ORDERING INFORMATION



MODEL

Size

Material

Band Size

MBL

Weight

UPB

5/14 and 5/15mm

Galvanized steel

14/16 /20mm

1.5kN

209g

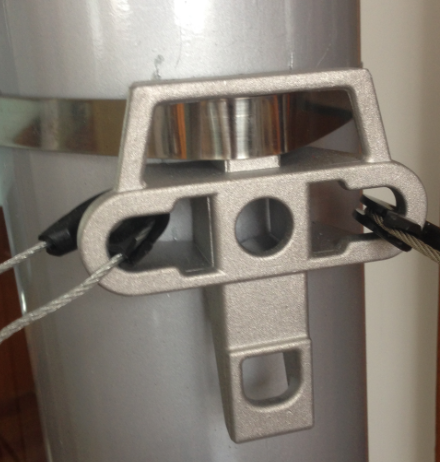

Ø INSTALLATION



ftth pole bracket.png

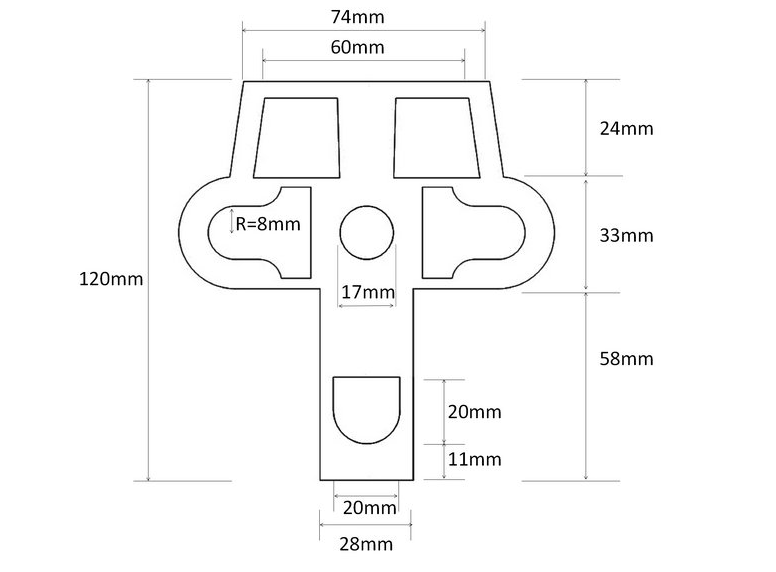

Ø SCHEMATIC DIAGRAM

pole bracket.png
