FIBER OPTIC FTTH FITTINGS

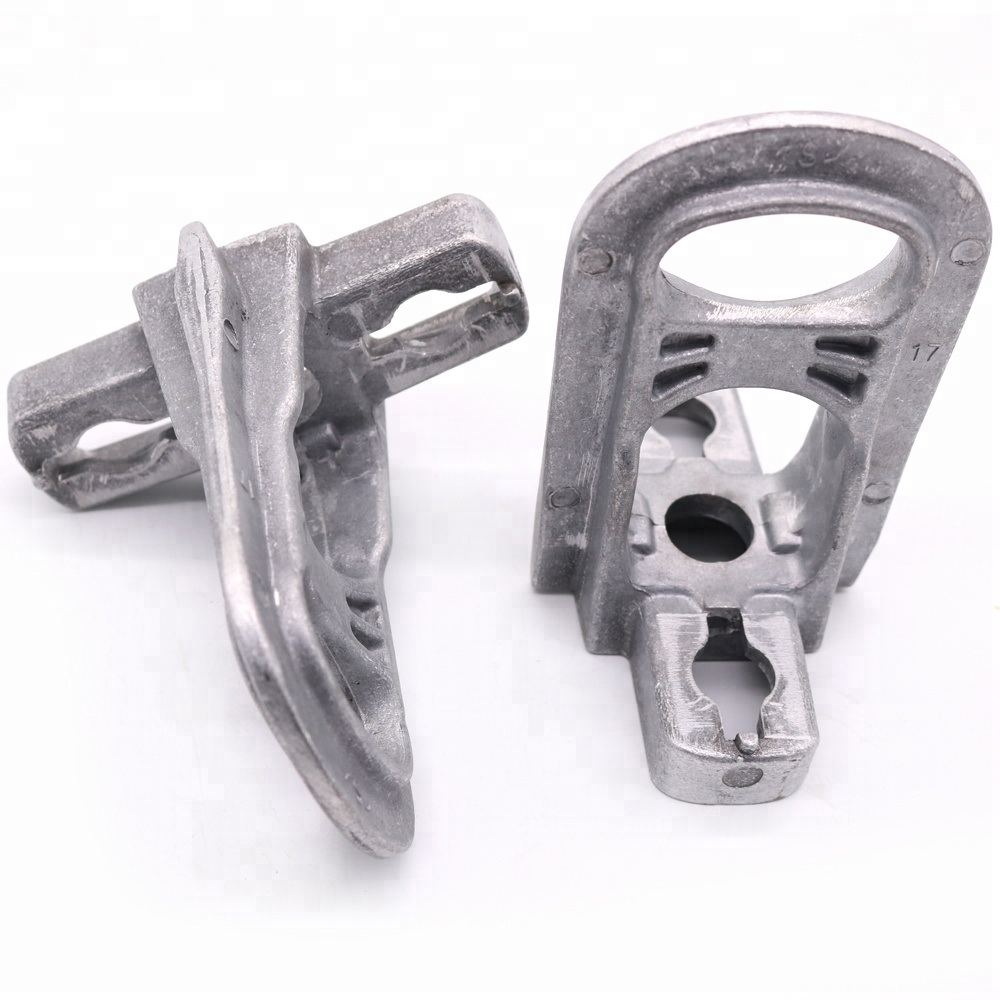

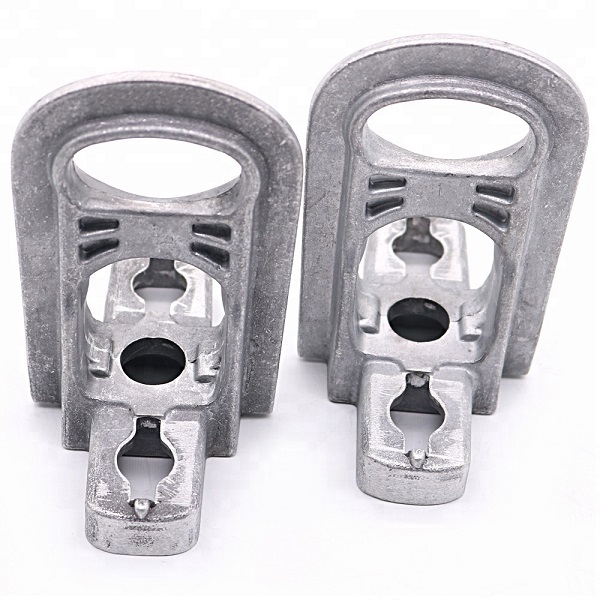

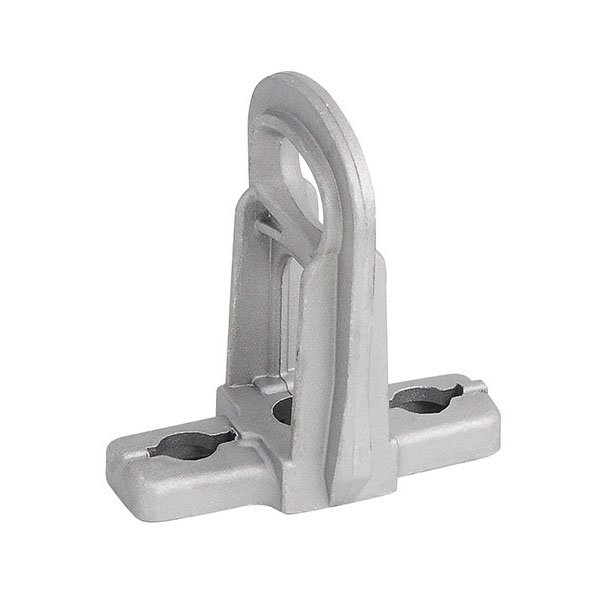

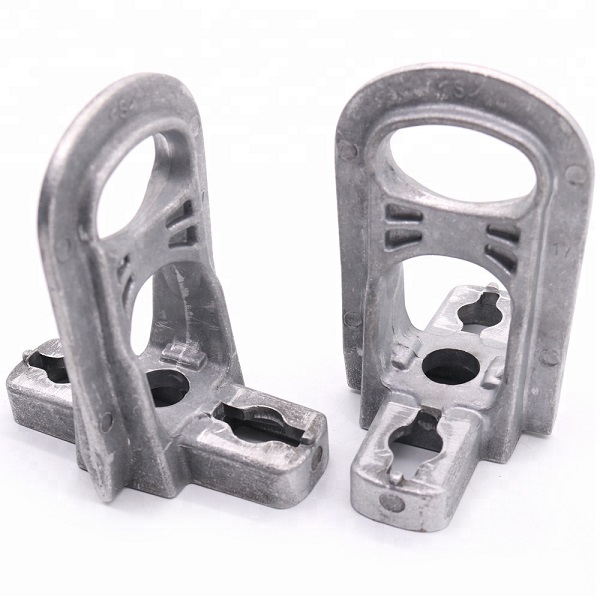

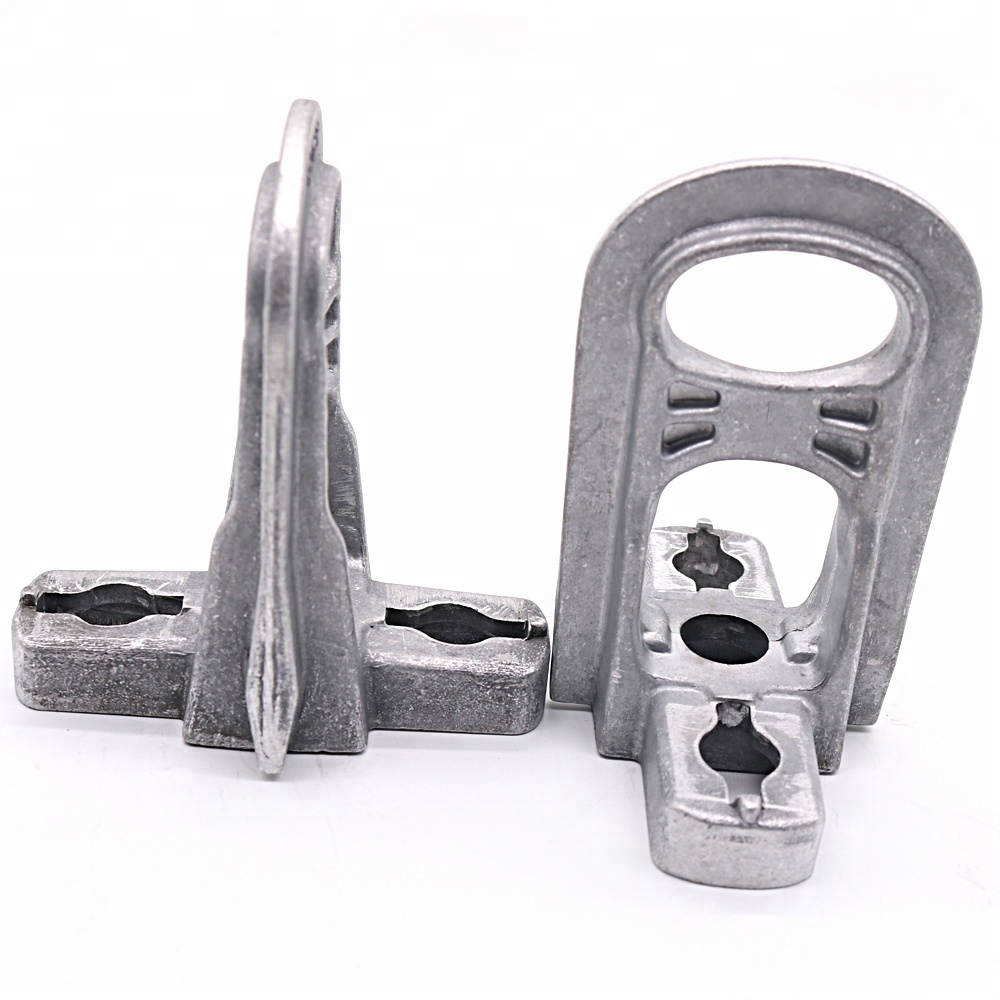

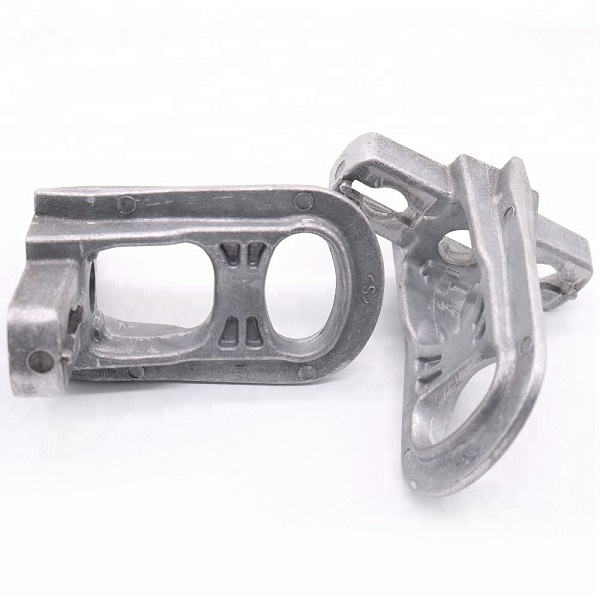

CT1500 Anchoring Bracket
Ø DESCRIPTION
CA1500 is made of aluminum alloy and permits single or double anchoring.
Fixing on poles is ensured by one or two 14 or 16mm diameter bolts with suitable washers or using two 20*0.7mm stainless steel straps.
Key words: Anchoring brackets, used for supporting figure 8 cable
Ø ORDERING INFORMATION
MODEL | Size(LxWxH) | Material | Cable Diameter | MBL | Weight |
CA1500 | 116x36.1x122mm | Aluminum alloy | Φ74xΦ38mm | 15kN | 202g |

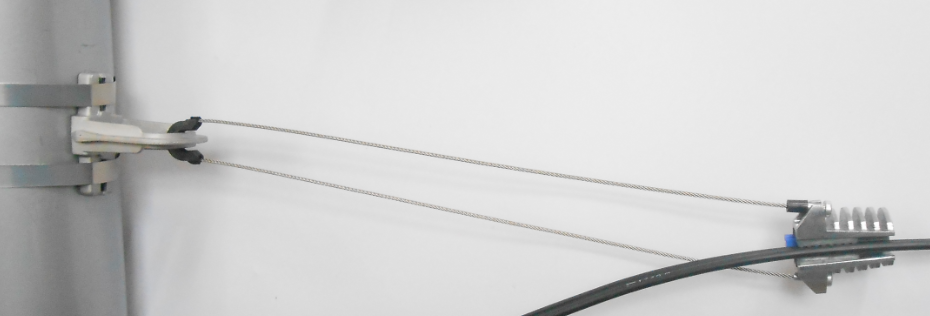

Ø INSTALLATION

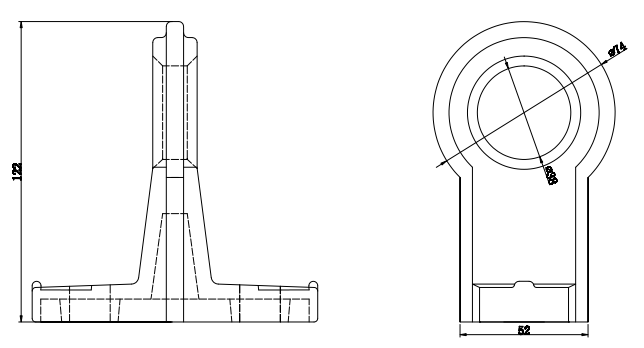

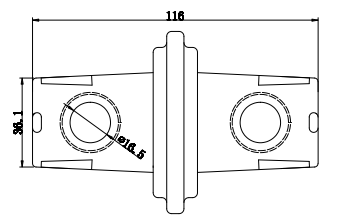

Ø SCHEMATIC DIAGRAM
