FIBER OPTIC FTTH FITTINGS
CT1500L Anchoring Bracket
Ø DESCRIPTION

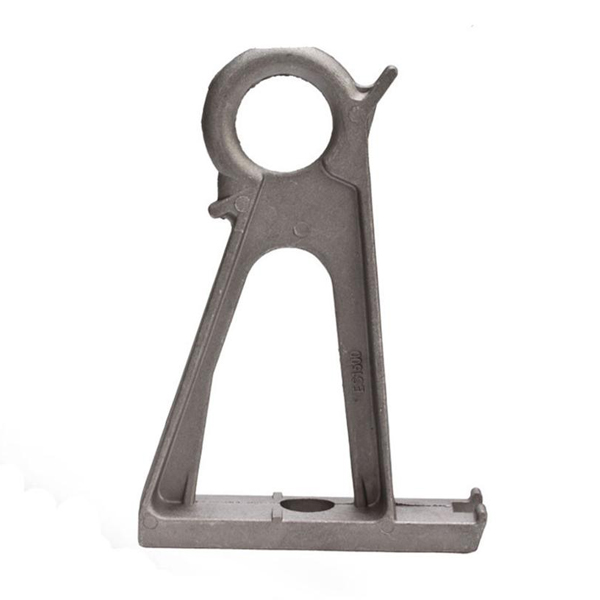

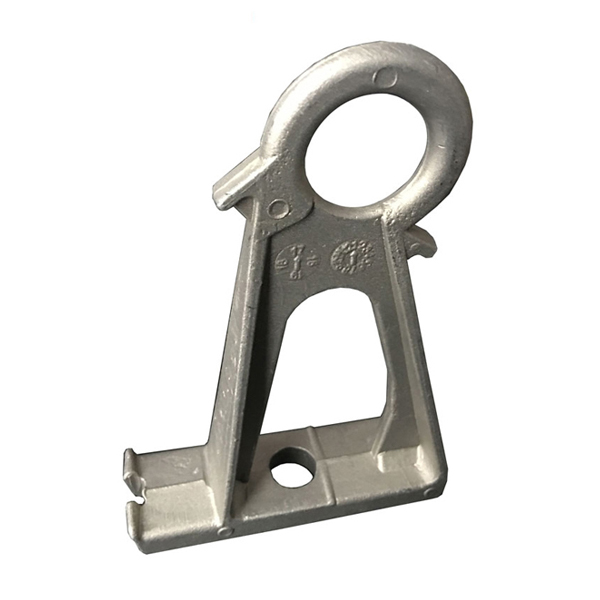

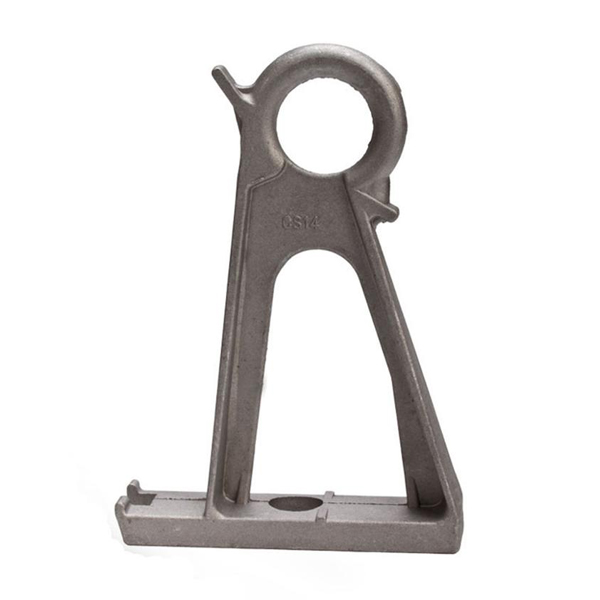

ES1500L bracket is made of aluminum alloy and permits single or double anchoring.
Fixing on poles is ensured by one or two 14 or 16mm diameter bolts with suitable washers or using two 20*0.7mm stainless steel straps.
Key words: Anchoring brackets, used for supporting figure 8 cable
Ø ORDERING INFORMATION
MODEL | Cable Size | Material | MBL | Weight |
ES1500L | 16-95mm | Aluminium alloy | 8kN | 200g |

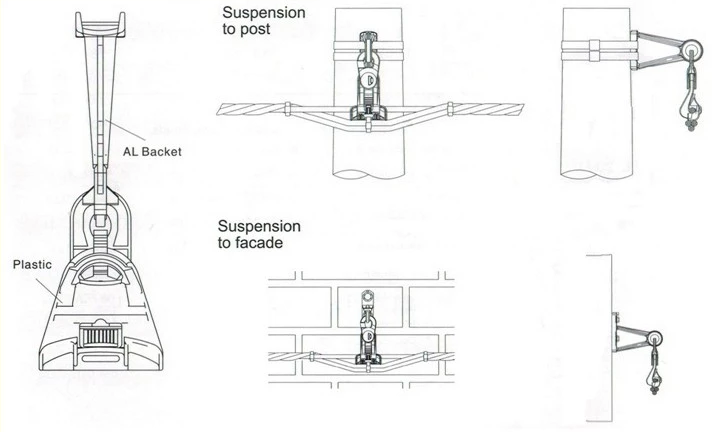

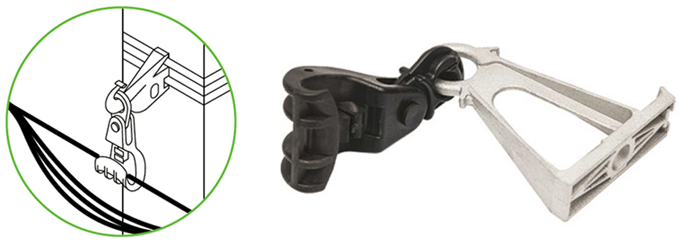

Ø INSTALLATION
