FIBER OPTIC FTTH FITTINGS

  • CT SSA Bracket
  • CT SSA Bracket
  • CT SSA Bracket
  • CT SSA Bracket
CT SSA Bracket CT SSA Bracket CT SSA Bracket CT SSA Bracket

CT SSA Bracket

Ø DESCRIPTION

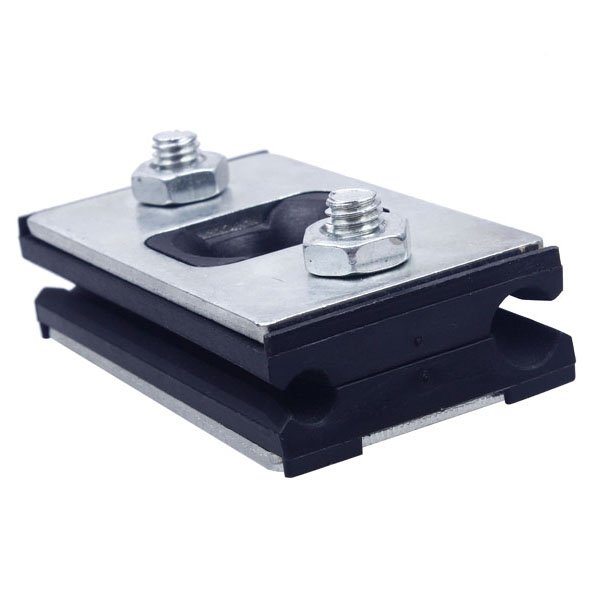

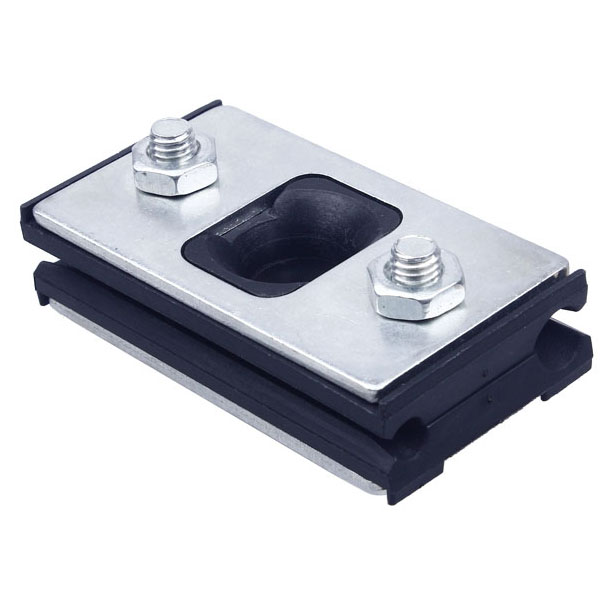

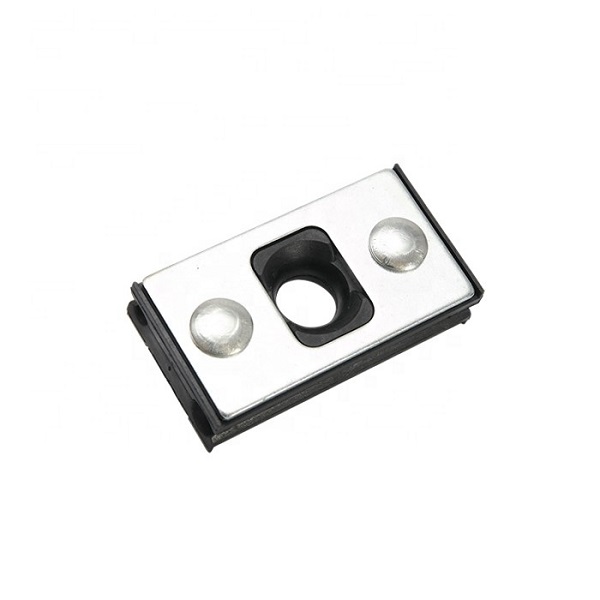

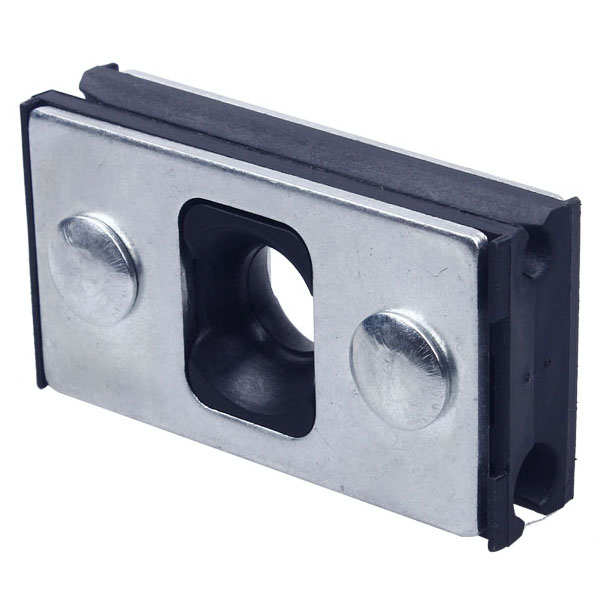

Tension clamp bracket, Use for figure 8 cable, choose the type according to the diameter of messenger and the cable load.

The clamps have two grooves to cover all messenger sizes from Ø 4 to 5 mm and from Ø5 to 9 mm respectively.

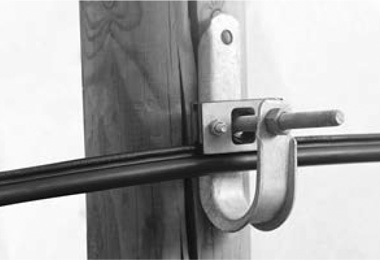

They should be installed on hook bolts for free but secured motion.

Key words: Tension clamp bracket, installed on hook bolts, use for figure 8 cable

Ø ORDERING INFORMATION



MODEL

Cable Size

Material

MBL

Weight

SSA

4-5/5-9mm

Plastic&aluminium alloy

8kN

119g

Ø INSTALLATION
