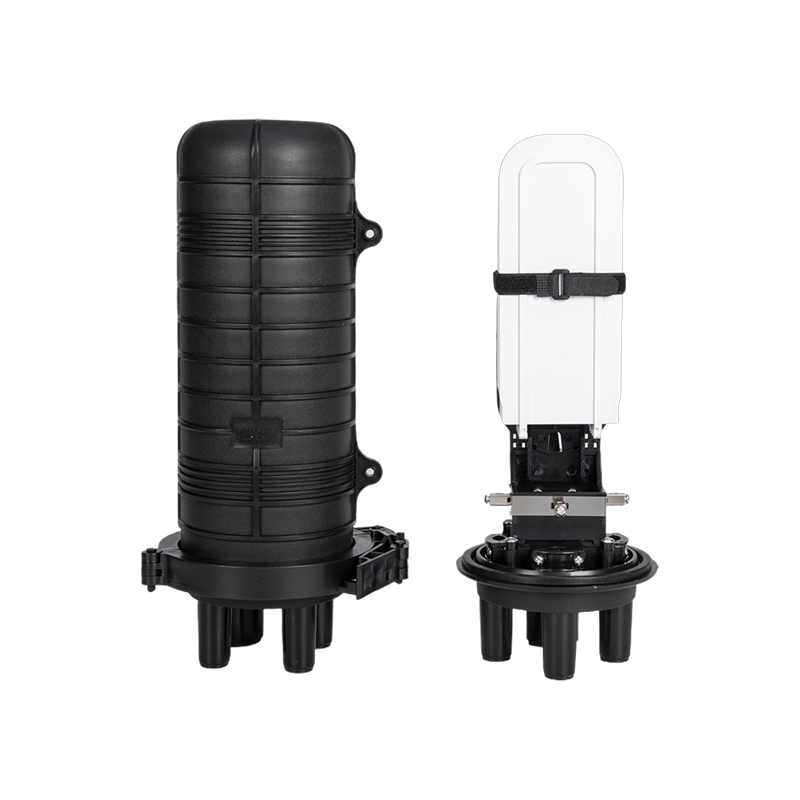

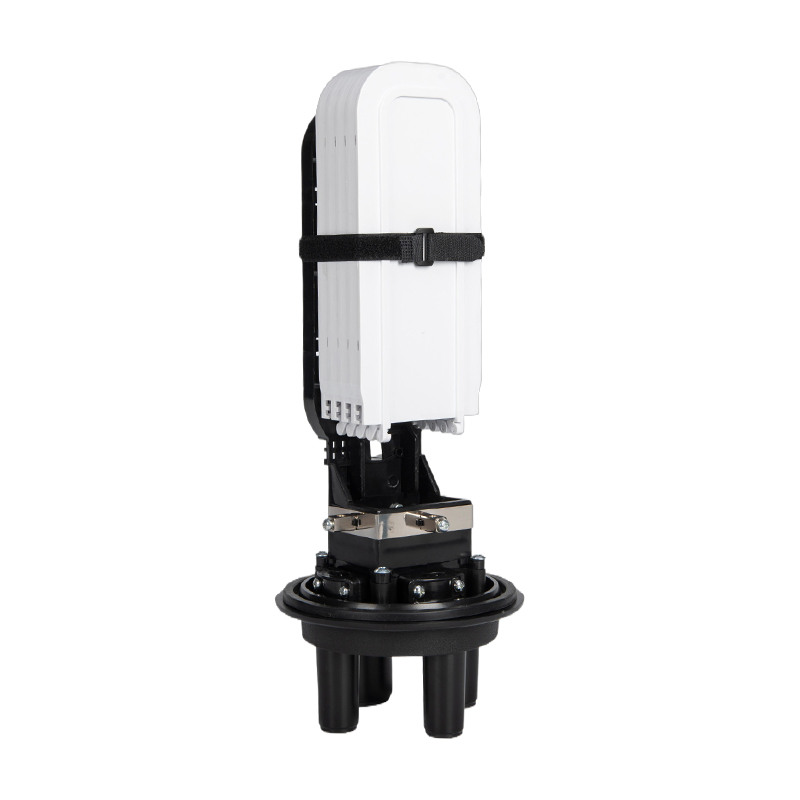

CT102H FIBER OPTIC 96 CORE SPLICE CLOSURE

1、 Abstract

Optic joint closure: A protective device designed to manage and maintain the optic continuity, keep well sealing and duration of mechanical strength between splicing cables. It’s applicable for aerial mounting, duct mounting, pole mounting and manhole, etc… Its body is made from excellent engineering plastics, fixing parts are made of stainless material, and sealing parts are made from high quality silicon rubber. Re-entry is one of its prominent characters.

2、 Area in use

CT102H dome type joint closure is strictly following up with the standard YD/T 814.1-2004, playing

a role in PON that branching and splicing drop cables from feeder cables. In FTTX, joint closure mainly solves the problems happening during such as circumstances: join cable A to B, splicing of single fiber for small capacity users, optic splitter, and multiple cables inlet and outlet.

3、Technical characteristics

3.1 Main electrical technical parameters High voltage protective grounding device

Insulation resistance：≥2×10⁴MΩ/500V（Direct current）

Voltage resistance：≥15000V（Direct current）/1min， no breakdown, no arc over

3.2 Main mechanical performance parameters

Tensile strength：The joint closure is able to withstand not less then 600N of axial force. Crushing resistance： The joint closure is able to withstand 1500N/100mm of pressure. Impact resistance：The joint closure is able to withstand 16N·m per time, 3 three times in total.

Bending capacity：the jointing area between closure and cable is able to withstand 150N of bending load, with ±45°of bending angle, 10 cycles in total.

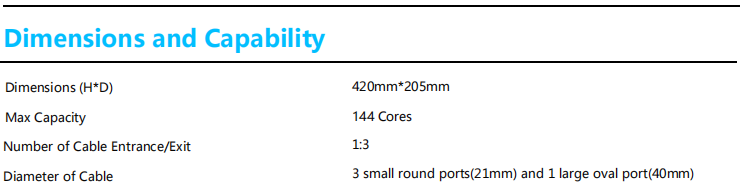

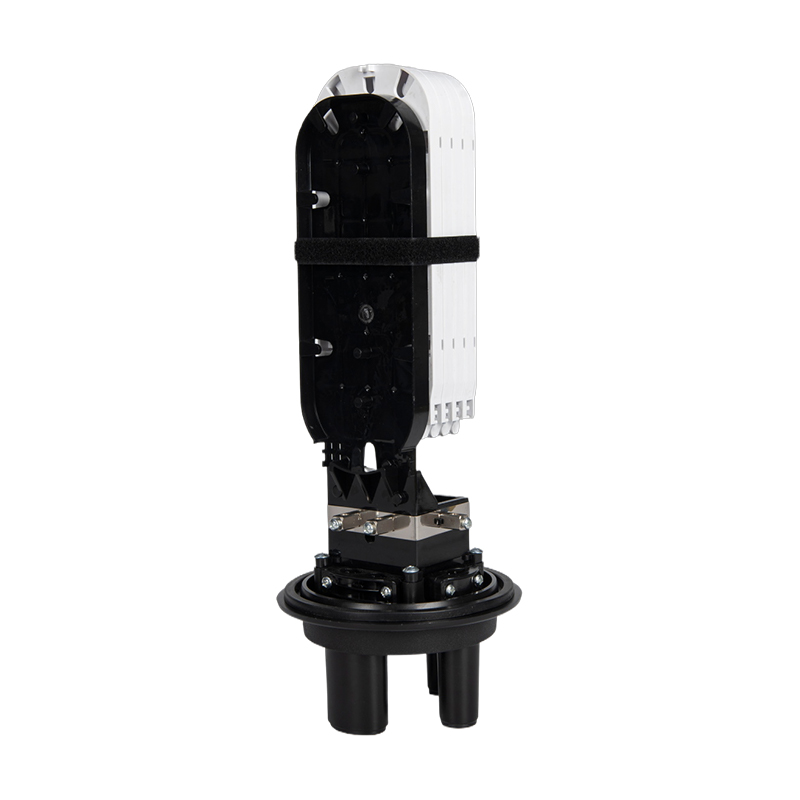

3.3 Basic structure and dimensions

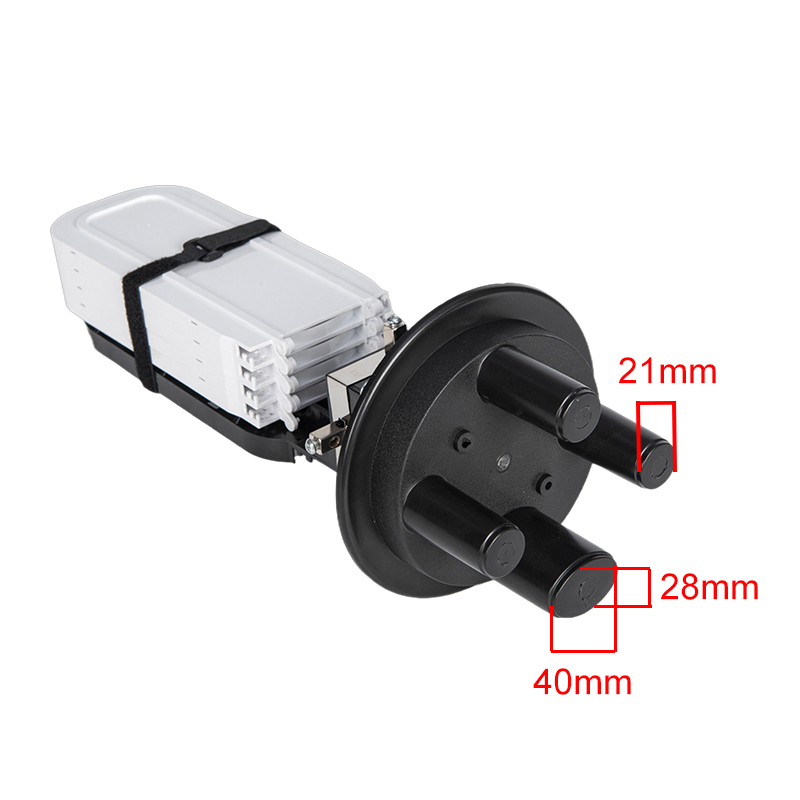

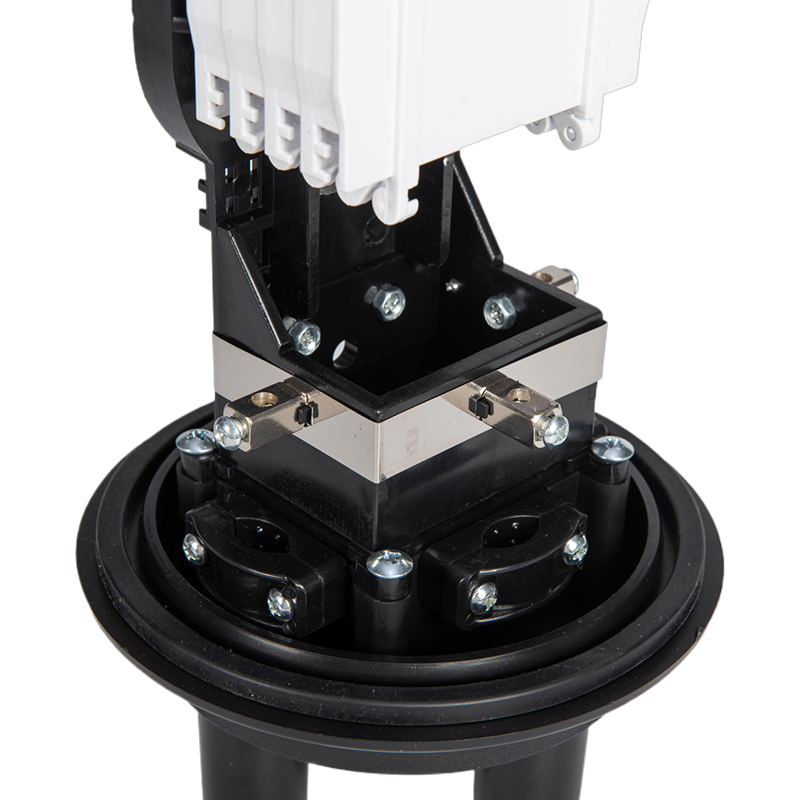

CT102H dome type of joint closure has 1 oval shape  inlet  and  3  round  shape  outlets. demonstration as below:

3.1 Features

★ Aerial,underground,wall-mounted,manhole-mounting

★ Plastic part is made of PP or ABS,Metal part is made of stainless steel

★ Easy and fast to seal up the body,inlet and outlet holes

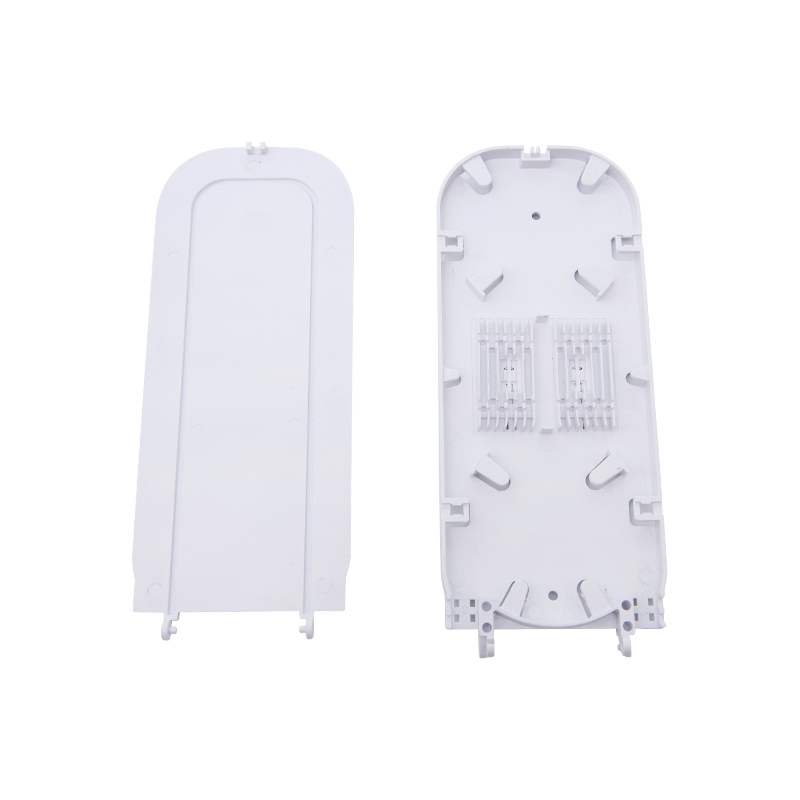

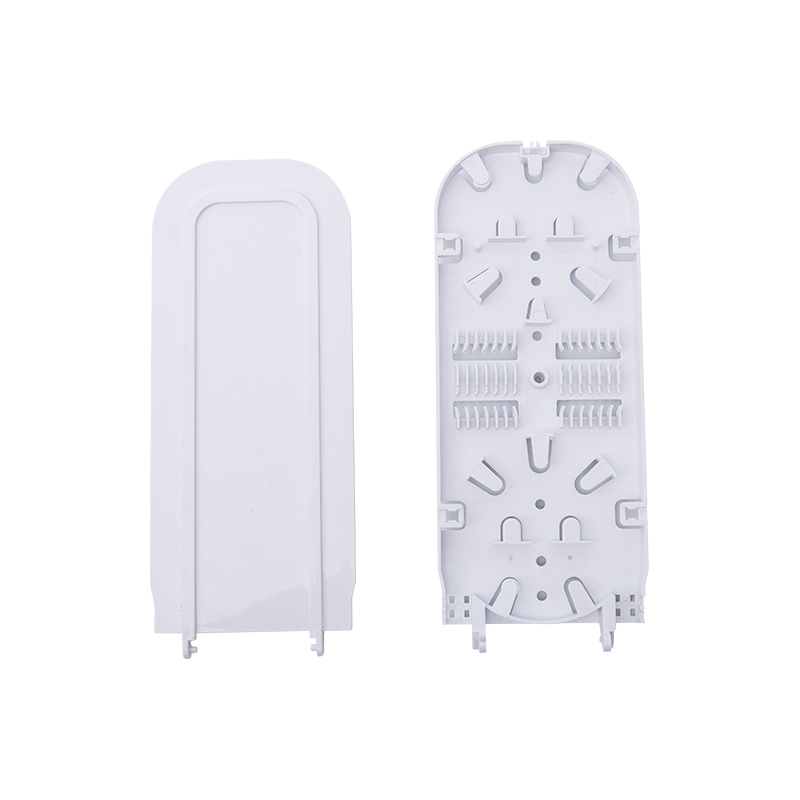

★ Excellent designing ensures the bending radius and fiber storage space big enough to operate

★ Big storage space and 90°of turning angle make the maintenance and extention much more convenient

★ Ready to install earthing devices and inflating valve

★ Above 20-year of durability

★ IP68 Protection grade: IP68

3.2 Environment

Working temperature: -40℃～＋65℃ Storage temperature: －25℃～＋65℃ Relative humidity: ≤85%（＋30℃） Atmospheric Pressure: 70～106kPa

4、Installation and adjustment

4.1 Unpacking inspection

Exam whether all parts included and make sure product is in good condition while unpack the package

4.2 Kits needed for installation

Please prepare the kits like screwdrivers, spanners , hacksaws,blower guns, etc... before installation

4.3 Installation

There are two mounting modes for GJS-Q dome type joint closure,aerial and pole mounting. Each of mode has its own related accessaries of installation.Aerial mounting accessaries for Aerial installtaion, pole mounting accessaries for pole mounting installation.

5、Free accessories

6、Optional accessories

7、Optional accessories
