DOME CLOSURE

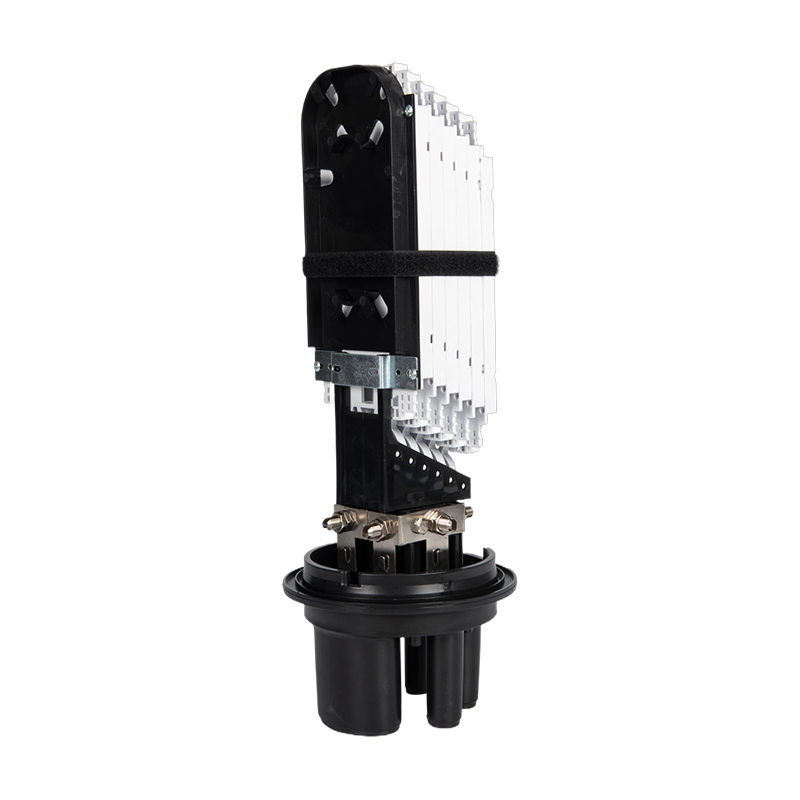

CT107H FIBER OPTIC 196 CORE SPLICE CLOSURE
1
Overview
1.1 Application
The series of 7002 fiber optical splice closure
1.2 Standard
《The first section of fiber optical splice closure: outdoor fiber optical splice closure》(YD/T 814.1-2013)
1.3 Recommendation
It is recommended to purchase and inspect the products with technical requirements strictly.

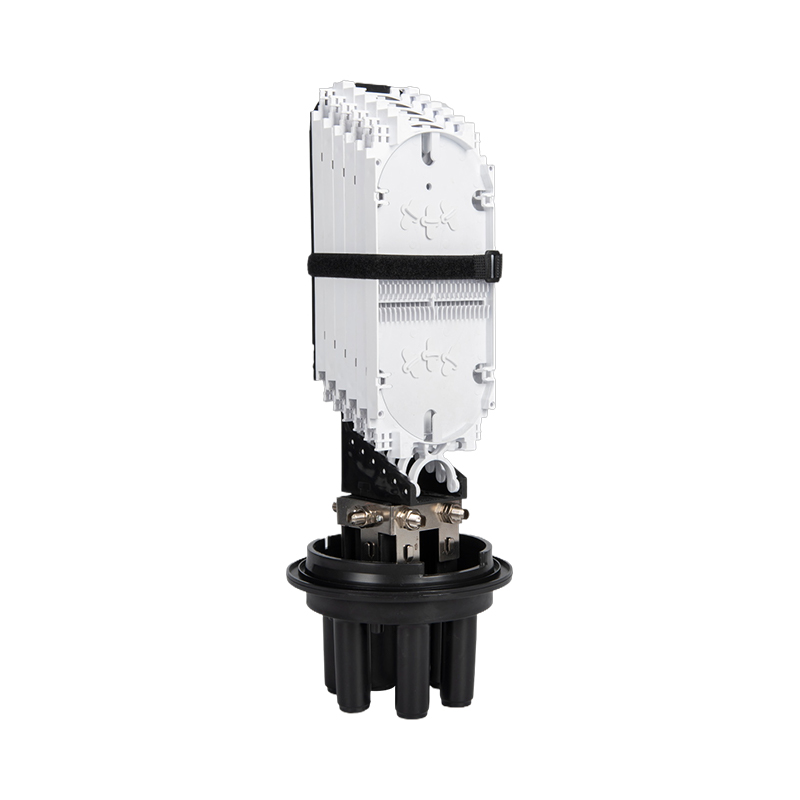

2 The parts of fiber optical splice closure

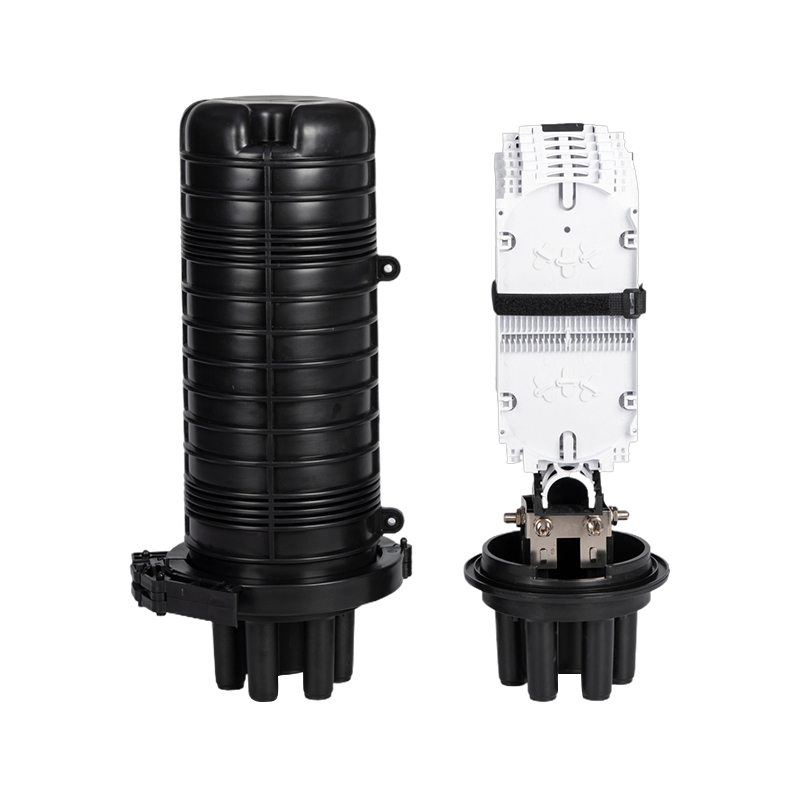

Box bottom, box cover, cable holder, holder for strengthening cable part, splice tray, magic cable tie, plate for installing splice tray, sealing part for box body, box hoop and other accessory.
3 The color of product
3.1 The box color: black
3.2 There is no color difference between the bottom of the box and the cover of the box.

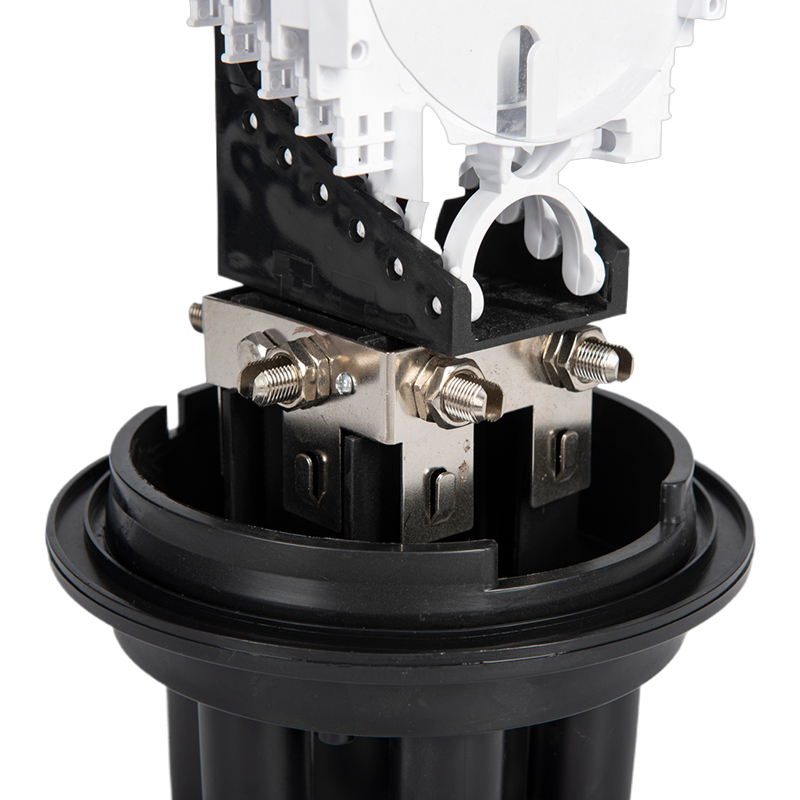

4 The fixing method of box body
The inlet cable is sealed by heat shrinkage.

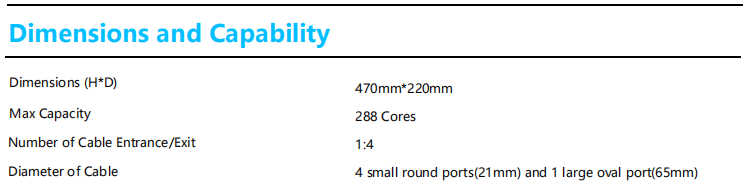

5 Inlet/Outlet and capacity

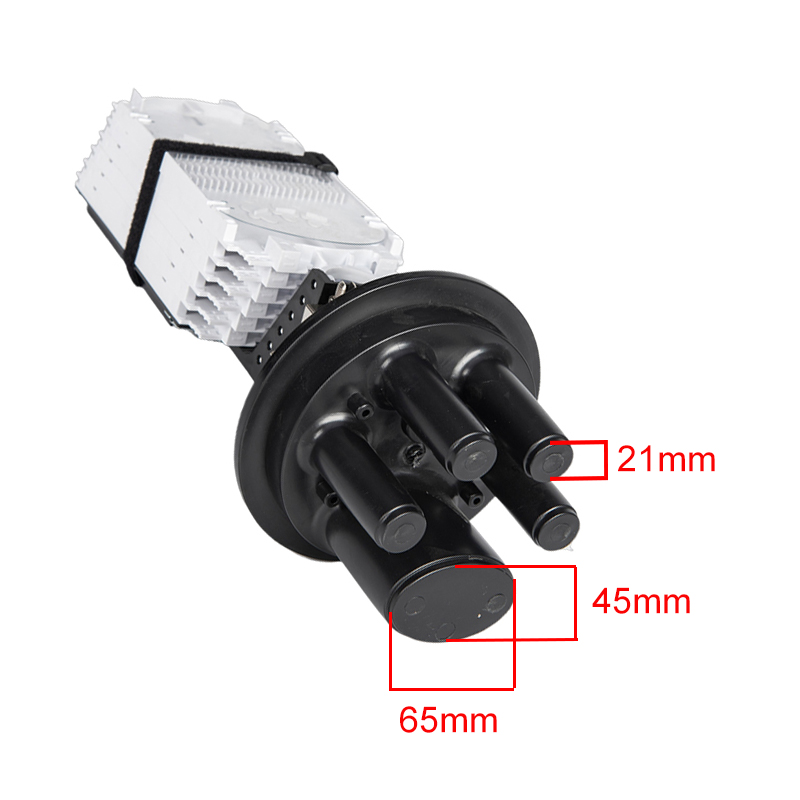

5.1 Inlet/outlet
1+4
5.2 Maximum capacity
196 cores
6 Technical Parameters
6.1 Function
6.1.1 The box body is made of PP high quality engineering plastic material with excellent intensity and stable chemical performance.
6.1.2 With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.
6.1.3 Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber
2
storage space. 6.1.4 The service life is up to more than 25 years. 6.1.5 Protection Level: IP68 6.1.6 The box body can be sealed quickly and easily, which the ports of inlet and outlet cable likes to do that. 6.2 Product dimension Length*Width*Depth(mm): 470x205 mm
6.3 Application environment Application environment: -40℃～＋65℃ Storage temperature: －25℃～＋60℃ Relative humidity: ≤95%（＋30℃） Atmospheric pressure: 62～101kPa 6.4 The structure of product
|
7.2 Accessory section | ||||
Product name | Specification | Unit | Quantity | Remark |
Nylon cable tie | 3*100 | PCS | 10 | |
Splice tube | L=60MM | PCS | 196 | The quantity of splice tube is same as the fibers’ |
Sandpaper | 80*30 | PCS | 1 | |
Divergence card | PCS | 1 | ||
Aluminum foil | 100*100(with adhesive) | PCS | 1 | |
Protective tube for bare fiber | M | 1 | ||
Insulation Tape | PCS | 1 | ||
Heat shrinkable tube |
SET |
2 | The quantity of heat shrinkable tube is same as the fibers’ capacity | |
Aerial-mounting fits | SET | 1 | Can be optional as the customers’ request | |
